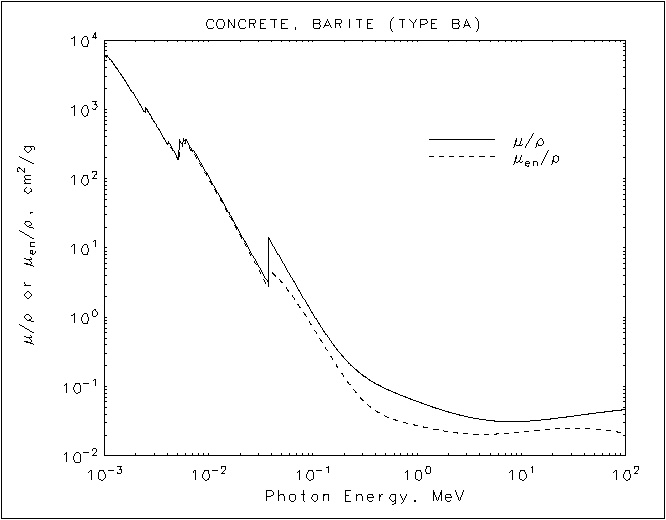

Concrete, Barite graph


Concrete, Barite (Type BA)
HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g) (cm2/g)

  1.00000E-03 6.349E+03 6.332E+03
1.03063E-03 5.916E+03 5.900E+03
1.06220E-03 5.507E+03 5.492E+03
56 M 3 1.06220E-03 6.009E+03 5.992E+03
  1.09882E-03 5.563E+03 5.548E+03
1.13670E-03 5.150E+03 5.135E+03
56 M2 1.13670E-03 5.350E+03 5.335E+03
  1.21224E-03 4.632E+03 4.619E+03
1.29280E-03 4.001E+03 3.990E+03
56 M1 1.29280E-03 4.126E+03 4.114E+03
  1.29889E-03 4.082E+03 4.070E+03
1.30500E-03 4.038E+03 4.026E+03
12 K 1.30500E-03 4.044E+03 4.032E+03
  1.50000E-03 2.917E+03 2.908E+03
1.55960E-03 2.659E+03 2.650E+03
13 K 1.55960E-03 2.674E+03 2.665E+03
  1.69350E-03 2.195E+03 2.187E+03
1.83890E-03 1.798E+03 1.791E+03
14 K 1.83890E-03 1.828E+03 1.820E+03
  2.00000E-03 1.491E+03 1.483E+03
2.47200E-03 8.795E+02 8.738E+02
16 K 2.47200E-03 1.079E+03 1.059E+03
  3.00000E-03 6.692E+02 6.568E+02
4.00000E-03 3.190E+02 3.126E+02
4.03810E-03 3.113E+02 3.050E+02
20 K 4.03810E-03 3.567E+02 3.437E+02
  5.00000E-03 2.048E+02 1.973E+02
5.24700E-03 1.805E+02 1.738E+02
56 L3 5.24700E-03 3.641E+02 3.408E+02
  5.43204E-03 3.352E+02 3.141E+02
5.62360E-03 3.069E+02 2.880E+02
56 L2 5.62360E-03 3.925E+02 3.645E+02
  5.80333E-03 3.633E+02 3.379E+02
5.98880E-03 3.353E+02 3.123E+02
56 L1 5.98880E-03 3.778E+02 3.510E+02
  6.00000E-03 3.760E+02 3.493E+02
7.11200E-03 2.437E+02 2.281E+02
26 K 7.11200E-03 2.605E+02 2.398E+02
  8.00000E-03 1.925E+02 1.782E+02
1.00000E-02 1.067E+02 9.960E+01
1.50000E-02 3.601E+01 3.363E+01
2.00000E-02 1.655E+01 1.527E+01
3.00000E-02 5.551E+00 4.912E+00
3.74406E-02 3.091E+00 2.624E+00
56 K 3.74406E-02 1.407E+01 4.746E+00
  4.00000E-02 1.185E+01 4.439E+00
5.00000E-02 6.671E+00 3.206E+00
6.00000E-02 4.143E+00 2.266E+00
8.00000E-02 1.968E+00 1.211E+00
1.00000E-01 1.122E+00 7.138E-01
1.50000E-01 4.423E-01 2.659E-01
2.00000E-01 2.568E-01 1.369E-01
3.00000E-01 1.460E-01 6.408E-02
4.00000E-01 1.104E-01 4.471E-02
5.00000E-01 9.309E-02 3.718E-02
6.00000E-01 8.245E-02 3.340E-02
8.00000E-01 6.936E-02 2.954E-02
1.00000E+00 6.112E-02 2.736E-02
1.25000E+00 5.404E-02 2.542E-02
1.50000E+00 4.915E-02 2.402E-02
2.00000E+00 4.296E-02 2.226E-02
3.00000E+00 3.676E-02 2.079E-02
4.00000E+00 3.388E-02 2.043E-02
5.00000E+00 3.240E-02 2.049E-02
6.00000E+00 3.162E-02 2.074E-02
8.00000E+00 3.116E-02 2.142E-02
1.00000E+01 3.138E-02 2.213E-02
1.50000E+01 3.282E-02 2.356E-02
2.00000E+01 3.439E-02 2.438E-02

Concrete, Barite (Type BA)
ASCII format
________________________________________

         Energy         μ/ρ       μen/ρ
          (MeV)       (cm2/g)    (cm2/g)
________________________________________

       1.00000E-03  6.349E+03  6.332E+03
       1.03063E-03  5.916E+03  5.900E+03
       1.06220E-03  5.507E+03  5.492E+03
 56 M3 1.06220E-03  6.009E+03  5.992E+03
       1.09882E-03  5.563E+03  5.548E+03
       1.13670E-03  5.150E+03  5.135E+03
 56 M2 1.13670E-03  5.350E+03  5.335E+03
       1.21224E-03  4.632E+03  4.619E+03
       1.29280E-03  4.001E+03  3.990E+03
 56 M1 1.29280E-03  4.126E+03  4.114E+03
       1.29889E-03  4.082E+03  4.070E+03
       1.30500E-03  4.038E+03  4.026E+03
 12 K  1.30500E-03  4.044E+03  4.032E+03
       1.50000E-03  2.917E+03  2.908E+03
       1.55960E-03  2.659E+03  2.650E+03
 13 K  1.55960E-03  2.674E+03  2.665E+03
       1.69350E-03  2.195E+03  2.187E+03
       1.83890E-03  1.798E+03  1.791E+03
 14 K  1.83890E-03  1.828E+03  1.820E+03
       2.00000E-03  1.491E+03  1.483E+03
       2.47200E-03  8.795E+02  8.738E+02
 16 K  2.47200E-03  1.079E+03  1.059E+03
       3.00000E-03  6.692E+02  6.568E+02
       4.00000E-03  3.190E+02  3.126E+02
       4.03810E-03  3.113E+02  3.050E+02
 20 K  4.03810E-03  3.567E+02  3.437E+02
       5.00000E-03  2.048E+02  1.973E+02
       5.24700E-03  1.805E+02  1.738E+02
 56 L3 5.24700E-03  3.641E+02  3.408E+02
       5.43204E-03  3.352E+02  3.141E+02
       5.62360E-03  3.069E+02  2.880E+02
 56 L2 5.62360E-03  3.925E+02  3.645E+02
       5.80333E-03  3.633E+02  3.379E+02
       5.98880E-03  3.353E+02  3.123E+02
 56 L1 5.98880E-03  3.778E+02  3.510E+02
       6.00000E-03  3.760E+02  3.493E+02
       7.11200E-03  2.437E+02  2.281E+02
 26 K  7.11200E-03  2.605E+02  2.398E+02
       8.00000E-03  1.925E+02  1.782E+02
       1.00000E-02  1.067E+02  9.960E+01
       1.50000E-02  3.601E+01  3.363E+01
       2.00000E-02  1.655E+01  1.527E+01
       3.00000E-02  5.551E+00  4.912E+00
       3.74406E-02  3.091E+00  2.624E+00
 56 K  3.74406E-02  1.407E+01  4.746E+00
       4.00000E-02  1.185E+01  4.439E+00
       5.00000E-02  6.671E+00  3.206E+00
       6.00000E-02  4.143E+00  2.266E+00
       8.00000E-02  1.968E+00  1.211E+00
       1.00000E-01  1.122E+00  7.138E-01
       1.50000E-01  4.423E-01  2.659E-01
       2.00000E-01  2.568E-01  1.369E-01
       3.00000E-01  1.460E-01  6.408E-02
       4.00000E-01  1.104E-01  4.471E-02
       5.00000E-01  9.309E-02  3.718E-02
       6.00000E-01  8.245E-02  3.340E-02
       8.00000E-01  6.936E-02  2.954E-02
       1.00000E+00  6.112E-02  2.736E-02
       1.25000E+00  5.404E-02  2.542E-02
       1.50000E+00  4.915E-02  2.402E-02
       2.00000E+00  4.296E-02  2.226E-02
       3.00000E+00  3.676E-02  2.079E-02
       4.00000E+00  3.388E-02  2.043E-02
       5.00000E+00  3.240E-02  2.049E-02
       6.00000E+00  3.162E-02  2.074E-02
       8.00000E+00  3.116E-02  2.142E-02
       1.00000E+01  3.138E-02  2.213E-02
       1.50000E+01  3.282E-02  2.356E-02
       2.00000E+01  3.439E-02  2.438E-02
