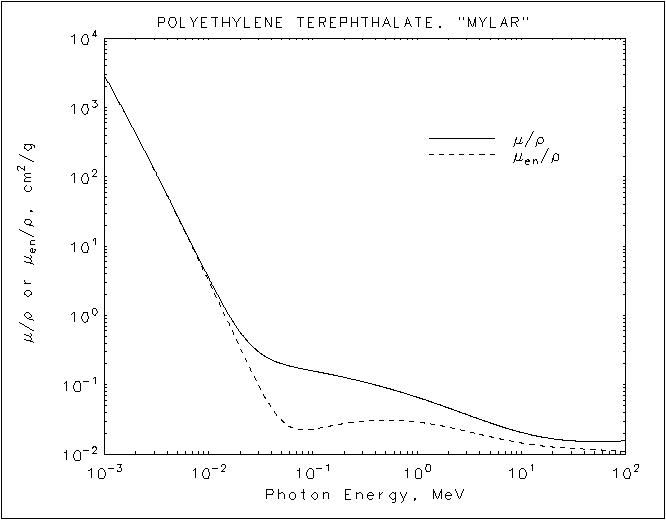

Mylar graph


Polyethylene Terephthalate, "Mylar"
HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g) (cm2/g)

1.00000E-03 2.911E+03 2.905E+03
1.50000E-03 9.536E+02 9.513E+02
2.00000E-03 4.206E+02 4.192E+02
3.00000E-03 1.288E+02 1.279E+02
4.00000E-03 5.466E+01 5.398E+01
5.00000E-03 2.792E+01 2.737E+01
6.00000E-03 1.608E+01 1.561E+01
8.00000E-03 6.750E+00 6.370E+00
1.00000E-02 3.481E+00 3.153E+00
1.50000E-02 1.132E+00 8.668E-01
2.00000E-02 5.798E-01 3.462E-01
3.00000E-02 3.009E-01 9.972E-02
4.00000E-02 2.304E-01 4.695E-02
5.00000E-02 2.020E-01 3.082E-02
6.00000E-02 1.868E-01 2.508E-02
8.00000E-02 1.695E-01 2.247E-02
1.00000E-01 1.586E-01 2.297E-02
1.50000E-01 1.406E-01 2.567E-02
2.00000E-01 1.282E-01 2.772E-02
3.00000E-01 1.111E-01 2.990E-02
4.00000E-01 9.947E-02 3.073E-02
5.00000E-01 9.079E-02 3.093E-02
6.00000E-01 8.395E-02 3.079E-02
8.00000E-01 7.372E-02 3.005E-02
1.00000E+00 6.628E-02 2.909E-02
1.25000E+00 5.927E-02 2.780E-02
1.50000E+00 5.395E-02 2.657E-02
2.00000E+00 4.630E-02 2.444E-02
3.00000E+00 3.715E-02 2.135E-02
4.00000E+00 3.181E-02 1.931E-02
5.00000E+00 2.829E-02 1.787E-02
6.00000E+00 2.582E-02 1.682E-02
8.00000E+00 2.257E-02 1.540E-02
1.00000E+01 2.057E-02 1.450E-02
1.50000E+01 1.789E-02 1.327E-02
2.00000E+01 1.664E-02 1.267E-02

Polyethylene Terephthalate, "Mylar"
ASCII format
_________________________________

  Energy        μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  2.911E+03  2.905E+03
1.50000E-03  9.536E+02  9.513E+02
2.00000E-03  4.206E+02  4.192E+02
3.00000E-03  1.288E+02  1.279E+02
4.00000E-03  5.466E+01  5.398E+01
5.00000E-03  2.792E+01  2.737E+01
6.00000E-03  1.608E+01  1.561E+01
8.00000E-03  6.750E+00  6.370E+00
1.00000E-02  3.481E+00  3.153E+00
1.50000E-02  1.132E+00  8.668E-01
2.00000E-02  5.798E-01  3.462E-01
3.00000E-02  3.009E-01  9.972E-02
4.00000E-02  2.304E-01  4.695E-02
5.00000E-02  2.020E-01  3.082E-02
6.00000E-02  1.868E-01  2.508E-02
8.00000E-02  1.695E-01  2.247E-02
1.00000E-01  1.586E-01  2.297E-02
1.50000E-01  1.406E-01  2.567E-02
2.00000E-01  1.282E-01  2.772E-02
3.00000E-01  1.111E-01  2.990E-02
4.00000E-01  9.947E-02  3.073E-02
5.00000E-01  9.079E-02  3.093E-02
6.00000E-01  8.395E-02  3.079E-02
8.00000E-01  7.372E-02  3.005E-02
1.00000E+00  6.628E-02  2.909E-02
1.25000E+00  5.927E-02  2.780E-02
1.50000E+00  5.395E-02  2.657E-02
2.00000E+00  4.630E-02  2.444E-02
3.00000E+00  3.715E-02  2.135E-02
4.00000E+00  3.181E-02  1.931E-02
5.00000E+00  2.829E-02  1.787E-02
6.00000E+00  2.582E-02  1.682E-02
8.00000E+00  2.257E-02  1.540E-02
1.00000E+01  2.057E-02  1.450E-02
1.50000E+01  1.789E-02  1.327E-02
2.00000E+01  1.664E-02  1.267E-02
