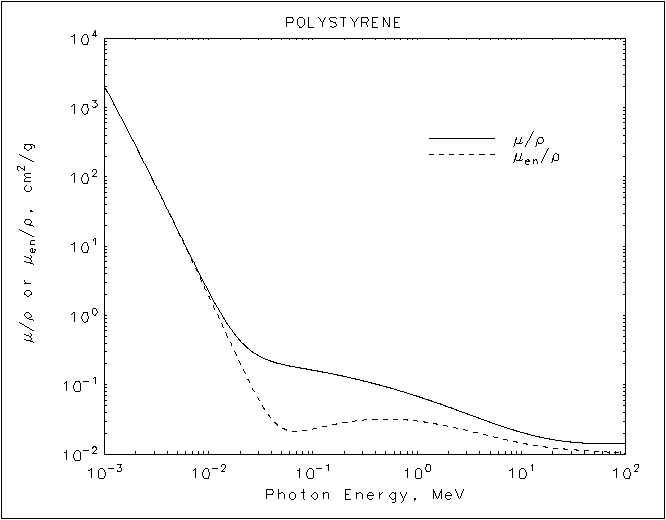

Polystyrene graph


Polystyrene
HTML table format
Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g) (cm2/g)
1.00000E-03 2.040E+03 2.038E+03
1.50000E-03 6.462E+02 6.450E+02
2.00000E-03 2.792E+02 2.783E+02
3.00000E-03 8.338E+01 8.271E+01
4.00000E-03 3.489E+01 3.435E+01
5.00000E-03 1.767E+01 1.721E+01
6.00000E-03 1.013E+01 9.730E+00
8.00000E-03 4.252E+00 3.915E+00
1.00000E-02 2.219E+00 1.918E+00
1.50000E-02 7.738E-01 5.200E-01
2.00000E-02 4.363E-01 2.075E-01
3.00000E-02 2.640E-01 6.246E-02
4.00000E-02 2.183E-01 3.264E-02
5.00000E-02 1.986E-01 2.421E-02
6.00000E-02 1.870E-01 2.172E-02
8.00000E-02 1.725E-01 2.160E-02
1.00000E-01 1.624E-01 2.296E-02
1.50000E-01 1.448E-01 2.632E-02
2.00000E-01 1.322E-01 2.857E-02
3.00000E-01 1.147E-01 3.088E-02
4.00000E-01 1.027E-01 3.175E-02
5.00000E-01 9.379E-02 3.196E-02
6.00000E-01 8.672E-02 3.182E-02
8.00000E-01 7.615E-02 3.106E-02
1.00000E+00 6.847E-02 3.006E-02
1.25000E+00 6.123E-02 2.874E-02
1.50000E+00 5.573E-02 2.747E-02
2.00000E+00 4.777E-02 2.524E-02
3.00000E+00 3.822E-02 2.199E-02
4.00000E+00 3.261E-02 1.979E-02
5.00000E+00 2.889E-02 1.824E-02
6.00000E+00 2.626E-02 1.708E-02
8.00000E+00 2.278E-02 1.550E-02
1.00000E+01 2.060E-02 1.448E-02
1.50000E+01 1.763E-02 1.305E-02
2.00000E+01 1.620E-02 1.232E-02

Polystyrene
ASCII format
_________________________________

  Energy        μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  2.040E+03  2.038E+03
1.50000E-03  6.462E+02  6.450E+02
2.00000E-03  2.792E+02  2.783E+02
3.00000E-03  8.338E+01  8.271E+01
4.00000E-03  3.489E+01  3.435E+01
5.00000E-03  1.767E+01  1.721E+01
6.00000E-03  1.013E+01  9.730E+00
8.00000E-03  4.252E+00  3.915E+00
1.00000E-02  2.219E+00  1.918E+00
1.50000E-02  7.738E-01  5.200E-01
2.00000E-02  4.363E-01  2.075E-01
3.00000E-02  2.640E-01  6.246E-02
4.00000E-02  2.183E-01  3.264E-02
5.00000E-02  1.986E-01  2.421E-02
6.00000E-02  1.870E-01  2.172E-02
8.00000E-02  1.725E-01  2.160E-02
1.00000E-01  1.624E-01  2.296E-02
1.50000E-01  1.448E-01  2.632E-02
2.00000E-01  1.322E-01  2.857E-02
3.00000E-01  1.147E-01  3.088E-02
4.00000E-01  1.027E-01  3.175E-02
5.00000E-01  9.379E-02  3.196E-02
6.00000E-01  8.672E-02  3.182E-02
8.00000E-01  7.615E-02  3.106E-02
1.00000E+00  6.847E-02  3.006E-02
1.25000E+00  6.123E-02  2.874E-02
1.50000E+00  5.573E-02  2.747E-02
2.00000E+00  4.777E-02  2.524E-02
3.00000E+00  3.822E-02  2.199E-02
4.00000E+00  3.261E-02  1.979E-02
5.00000E+00  2.889E-02  1.824E-02
6.00000E+00  2.626E-02  1.708E-02
8.00000E+00  2.278E-02  1.550E-02
1.00000E+01  2.060E-02  1.448E-02
1.50000E+01  1.763E-02  1.305E-02
2.00000E+01  1.620E-02  1.232E-02
