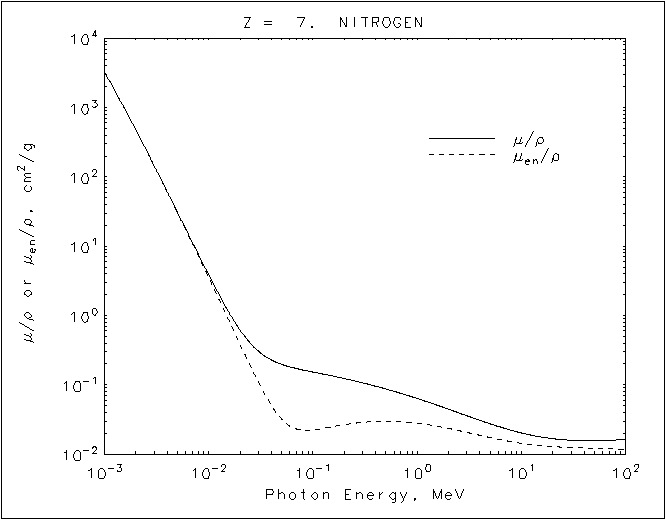

Nitrogen graph


Nitrogen
Z = 7


HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g)  (cm2/g)

1.00000E-03 3.311E+03 3.306E+03
1.50000E-03 1.083E+03 1.080E+03
2.00000E-03 4.769E+02 4.755E+02
3.00000E-03 1.456E+02 1.447E+02
4.00000E-03 6.166E+01 6.094E+01
5.00000E-03 3.144E+01 3.086E+01
6.00000E-03 1.809E+01 1.759E+01
8.00000E-03 7.562E+00 7.170E+00
1.00000E-02 3.879E+00 3.545E+00
1.50000E-02 1.236E+00 9.715E-01
2.00000E-02 6.178E-01 3.867E-01
3.00000E-02 3.066E-01 1.099E-01
4.00000E-02 2.288E-01 5.051E-02
5.00000E-02 1.980E-01 3.217E-02
6.00000E-02 1.817E-01 2.548E-02
8.00000E-02 1.639E-01 2.211E-02
1.00000E-01 1.529E-01 2.231E-02
1.50000E-01 1.353E-01 2.472E-02
2.00000E-01 1.233E-01 2.665E-02
3.00000E-01 1.068E-01 2.873E-02
4.00000E-01 9.557E-02 2.952E-02
5.00000E-01 8.719E-02 2.969E-02
6.00000E-01 8.063E-02 2.956E-02
8.00000E-01 7.081E-02 2.886E-02
1.00000E+00 6.364E-02 2.792E-02
1.25000E+00 5.693E-02 2.669E-02
1.50000E+00 5.180E-02 2.550E-02
2.00000E+00 4.450E-02 2.347E-02
3.00000E+00 3.579E-02 2.057E-02
4.00000E+00 3.073E-02 1.867E-02
5.00000E+00 2.742E-02 1.734E-02
6.00000E+00 2.511E-02 1.639E-02
8.00000E+00 2.209E-02 1.512E-02
1.00000E+01 2.024E-02 1.434E-02
1.50000E+01 1.782E-02 1.332E-02
2.00000E+01 1.673E-02 1.285E-02

Nitrogen
Z = 7


ASCII format
__________________________________

   Energy        μ/ρ        μen/ρ
    (MeV)      (cm2/g)     (cm2/g)
__________________________________

1.00000E-03  3.311E+03  3.306E+03
1.50000E-03  1.083E+03  1.080E+03
2.00000E-03  4.769E+02  4.755E+02
3.00000E-03  1.456E+02  1.447E+02
4.00000E-03  6.166E+01  6.094E+01
5.00000E-03  3.144E+01  3.086E+01
6.00000E-03  1.809E+01  1.759E+01
8.00000E-03  7.562E+00  7.170E+00
1.00000E-02  3.879E+00  3.545E+00
1.50000E-02  1.236E+00  9.715E-01
2.00000E-02  6.178E-01  3.867E-01
3.00000E-02  3.066E-01  1.099E-01
4.00000E-02  2.288E-01  5.051E-02
5.00000E-02  1.980E-01  3.217E-02
6.00000E-02  1.817E-01  2.548E-02
8.00000E-02  1.639E-01  2.211E-02
1.00000E-01  1.529E-01  2.231E-02
1.50000E-01  1.353E-01  2.472E-02
2.00000E-01  1.233E-01  2.665E-02
3.00000E-01  1.068E-01  2.873E-02
4.00000E-01  9.557E-02  2.952E-02
5.00000E-01  8.719E-02  2.969E-02
6.00000E-01  8.063E-02  2.956E-02
8.00000E-01  7.081E-02  2.886E-02
1.00000E+00  6.364E-02  2.792E-02
1.25000E+00  5.693E-02  2.669E-02
1.50000E+00  5.180E-02  2.550E-02
2.00000E+00  4.450E-02  2.347E-02
3.00000E+00  3.579E-02  2.057E-02
4.00000E+00  3.073E-02  1.867E-02
5.00000E+00  2.742E-02  1.734E-02
6.00000E+00  2.511E-02  1.639E-02
8.00000E+00  2.209E-02  1.512E-02
1.00000E+01  2.024E-02  1.434E-02
1.50000E+01  1.782E-02  1.332E-02
2.00000E+01  1.673E-02  1.285E-02
