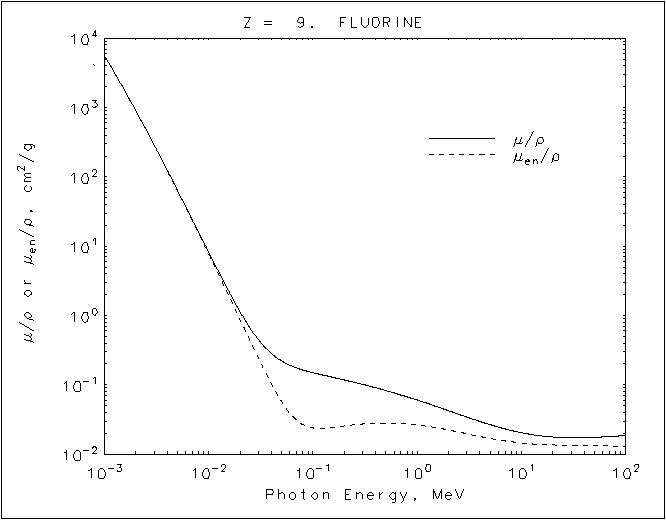

Fluorine graph


Fluorine
Z = 9


HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g)  (cm2/g)

1.00000E-03 5.649E+03 5.615E+03
1.50000E-03 1.979E+03 1.969E+03
2.00000E-03 9.047E+02 9.005E+02
3.00000E-03 2.888E+02 2.870E+02
4.00000E-03 1.256E+02 1.244E+02
5.00000E-03 6.514E+01 6.424E+01
6.00000E-03 3.789E+01 3.716E+01
8.00000E-03 1.602E+01 1.548E+01
1.00000E-02 8.205E+00 7.776E+00
1.50000E-02 2.492E+00 2.186E+00
2.00000E-02 1.133E+00 8.796E-01
3.00000E-02 4.487E-01 2.451E-01
4.00000E-02 2.828E-01 1.036E-01
5.00000E-02 2.214E-01 5.747E-02
6.00000E-02 1.920E-01 3.903E-02
8.00000E-02 1.639E-01 2.676E-02
1.00000E-01 1.496E-01 2.394E-02
1.50000E-01 1.298E-01 2.417E-02
2.00000E-01 1.176E-01 2.554E-02
3.00000E-01 1.015E-01 2.729E-02
4.00000E-01 9.073E-02 2.800E-02
5.00000E-01 8.274E-02 2.815E-02
6.00000E-01 7.649E-02 2.801E-02
8.00000E-01 6.717E-02 2.734E-02
1.00000E+00 6.037E-02 2.645E-02
1.25000E+00 5.399E-02 2.527E-02
1.50000E+00 4.915E-02 2.416E-02
2.00000E+00 4.228E-02 2.226E-02
3.00000E+00 3.422E-02 1.964E-02
4.00000E+00 2.960E-02 1.797E-02
5.00000E+00 2.663E-02 1.685E-02
6.00000E+00 2.457E-02 1.607E-02
8.00000E+00 2.195E-02 1.508E-02
1.00000E+01 2.039E-02 1.451E-02
1.50000E+01 1.846E-02 1.382E-02
2.00000E+01 1.769E-02 1.357E-02

Fluorine
Z = 9


ASCII format
_________________________________

  Energy       μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  5.649E+03  5.615E+03
1.50000E-03  1.979E+03  1.969E+03
2.00000E-03  9.047E+02  9.005E+02
3.00000E-03  2.888E+02  2.870E+02
4.00000E-03  1.256E+02  1.244E+02
5.00000E-03  6.514E+01  6.424E+01
6.00000E-03  3.789E+01  3.716E+01
8.00000E-03  1.602E+01  1.548E+01
1.00000E-02  8.205E+00  7.776E+00
1.50000E-02  2.492E+00  2.186E+00
2.00000E-02  1.133E+00  8.796E-01
3.00000E-02  4.487E-01  2.451E-01
4.00000E-02  2.828E-01  1.036E-01
5.00000E-02  2.214E-01  5.747E-02
6.00000E-02  1.920E-01  3.903E-02
8.00000E-02  1.639E-01  2.676E-02
1.00000E-01  1.496E-01  2.394E-02
1.50000E-01  1.298E-01  2.417E-02
2.00000E-01  1.176E-01  2.554E-02
3.00000E-01  1.015E-01  2.729E-02
4.00000E-01  9.073E-02  2.800E-02
5.00000E-01  8.274E-02  2.815E-02
6.00000E-01  7.649E-02  2.801E-02
8.00000E-01  6.717E-02  2.734E-02
1.00000E+00  6.037E-02  2.645E-02
1.25000E+00  5.399E-02  2.527E-02
1.50000E+00  4.915E-02  2.416E-02
2.00000E+00  4.228E-02  2.226E-02
3.00000E+00  3.422E-02  1.964E-02
4.00000E+00  2.960E-02  1.797E-02
5.00000E+00  2.663E-02  1.685E-02
6.00000E+00  2.457E-02  1.607E-02
8.00000E+00  2.195E-02  1.508E-02
1.00000E+01  2.039E-02  1.451E-02
1.50000E+01  1.846E-02  1.382E-02
2.00000E+01  1.769E-02  1.357E-02
