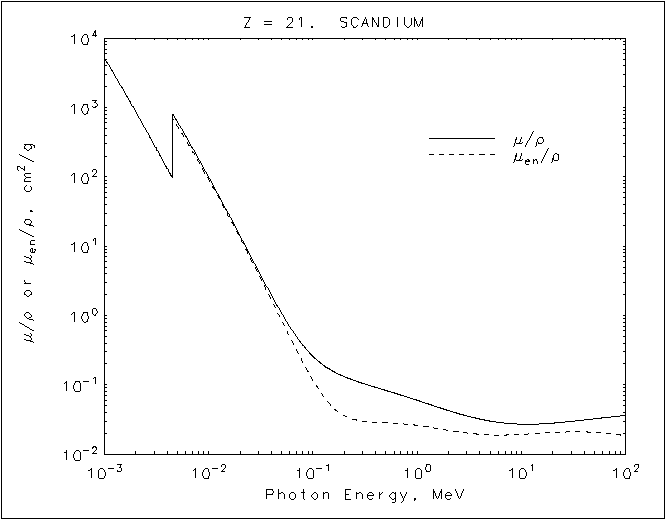

Scandium graph


Scandium
Z = 21


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 5.238E+03 5.231E+03
1.50000E-03 1.858E+03 1.853E+03
2.00000E-03 8.706E+02 8.672E+02
3.00000E-03 2.922E+02 2.896E+02
4.00000E-03 1.332E+02 1.311E+02
4.49280E-03 9.687E+01 9.490E+01
K 4.49280E-03 8.148E+02 6.911E+02
  5.00000E-03 6.305E+02 5.436E+02
6.00000E-03 3.933E+02 3.474E+02
8.00000E-03 1.828E+02 1.661E+02
1.00000E-02 9.952E+01 9.175E+01
1.50000E-02 3.202E+01 2.988E+01
2.00000E-02 1.409E+01 1.311E+01
3.00000E-02 4.409E+00 3.975E+00
4.00000E-02 1.969E+00 1.677E+00
5.00000E-02 1.087E+00 8.552E-01
6.00000E-02 6.932E-01 4.944E-01
8.00000E-02 3.753E-01 2.132E-01
1.00000E-01 2.577E-01 1.167E-01
1.50000E-01 1.619E-01 4.998E-02
2.00000E-01 1.310E-01 3.586E-02
3.00000E-01 1.052E-01 2.997E-02
4.00000E-01 9.193E-02 2.887E-02
5.00000E-01 8.305E-02 2.837E-02
6.00000E-01 7.639E-02 2.795E-02
8.00000E-01 6.675E-02 2.703E-02
1.00000E+00 5.985E-02 2.603E-02
1.25000E+00 5.347E-02 2.480E-02
1.50000E+00 4.878E-02 2.370E-02
2.00000E+00 4.243E-02 2.202E-02
3.00000E+00 3.554E-02 2.016E-02
4.00000E+00 3.202E-02 1.933E-02
5.00000E+00 2.999E-02 1.897E-02
6.00000E+00 2.878E-02 1.887E-02
8.00000E+00 2.756E-02 1.900E-02
1.00000E+01 2.715E-02 1.929E-02
1.50000E+01 2.732E-02 2.000E-02
2.00000E+01 2.804E-02 2.052E-02

Scandium
Z = 21


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  5.238E+03  5.231E+03
   1.50000E-03  1.858E+03  1.853E+03
   2.00000E-03  8.706E+02  8.672E+02
   3.00000E-03  2.922E+02  2.896E+02
   4.00000E-03  1.332E+02  1.311E+02
   4.49280E-03  9.687E+01  9.490E+01
K  4.49280E-03  8.148E+02  6.911E+02
   5.00000E-03  6.305E+02  5.436E+02
   6.00000E-03  3.933E+02  3.474E+02
   8.00000E-03  1.828E+02  1.661E+02
   1.00000E-02  9.952E+01  9.175E+01
   1.50000E-02  3.202E+01  2.988E+01
   2.00000E-02  1.409E+01  1.311E+01
   3.00000E-02  4.409E+00  3.975E+00
   4.00000E-02  1.969E+00  1.677E+00
   5.00000E-02  1.087E+00  8.552E-01
   6.00000E-02  6.932E-01  4.944E-01
   8.00000E-02  3.753E-01  2.132E-01
   1.00000E-01  2.577E-01  1.167E-01
   1.50000E-01  1.619E-01  4.998E-02
   2.00000E-01  1.310E-01  3.586E-02
   3.00000E-01  1.052E-01  2.997E-02
   4.00000E-01  9.193E-02  2.887E-02
   5.00000E-01  8.305E-02  2.837E-02
   6.00000E-01  7.639E-02  2.795E-02
   8.00000E-01  6.675E-02  2.703E-02
   1.00000E+00  5.985E-02  2.603E-02
   1.25000E+00  5.347E-02  2.480E-02
   1.50000E+00  4.878E-02  2.370E-02
   2.00000E+00  4.243E-02  2.202E-02
   3.00000E+00  3.554E-02  2.016E-02
   4.00000E+00  3.202E-02  1.933E-02
   5.00000E+00  2.999E-02  1.897E-02
   6.00000E+00  2.878E-02  1.887E-02
   8.00000E+00  2.756E-02  1.900E-02
   1.00000E+01  2.715E-02  1.929E-02
   1.50000E+01  2.732E-02  2.000E-02
   2.00000E+01  2.804E-02  2.052E-02
