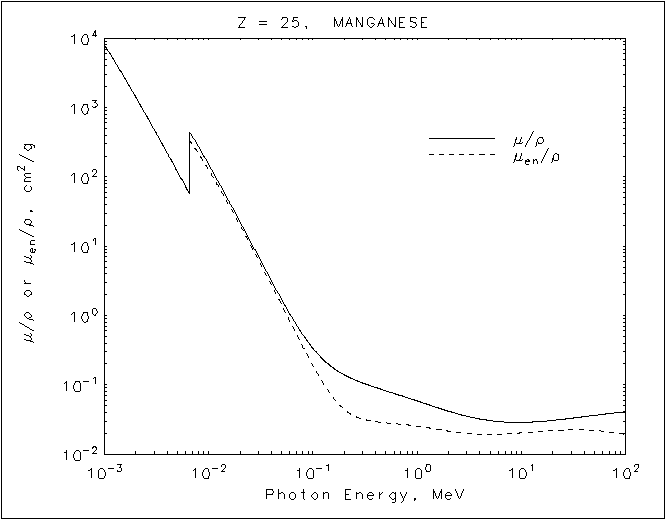

Manganese graph


Manganese
Z = 25


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 8.093E+03 8.069E+03
1.50000E-03 2.984E+03 2.975E+03
2.00000E-03 1.421E+03 1.415E+03
3.00000E-03 4.851E+02 4.815E+02
4.00000E-03 2.229E+02 2.201E+02
5.00000E-03 1.212E+02 1.188E+02
6.00000E-03 7.350E+01 7.150E+01
6.53900E-03 5.803E+01 5.619E+01
K 6.53900E-03 4.520E+02 3.415E+02
  8.00000E-03 2.734E+02 2.177E+02
1.00000E-02 1.514E+02 1.262E+02
1.50000E-02 5.027E+01 4.414E+01
2.00000E-02 2.253E+01 2.015E+01
3.00000E-02 7.141E+00 6.382E+00
4.00000E-02 3.169E+00 2.757E+00
5.00000E-02 1.714E+00 1.425E+00
6.00000E-02 1.060E+00 8.294E-01
8.00000E-02 5.306E-01 3.558E-01
1.00000E-01 3.367E-01 1.894E-01
1.50000E-01 1.838E-01 7.085E-02
2.00000E-01 1.391E-01 4.421E-02
3.00000E-01 1.062E-01 3.196E-02
4.00000E-01 9.133E-02 2.932E-02
5.00000E-01 8.192E-02 2.827E-02
6.00000E-01 7.509E-02 2.760E-02
8.00000E-01 6.537E-02 2.647E-02
1.00000E+00 5.852E-02 2.541E-02
1.25000E+00 5.224E-02 2.416E-02
1.50000E+00 4.769E-02 2.307E-02
2.00000E+00 4.162E-02 2.149E-02
3.00000E+00 3.524E-02 1.989E-02
4.00000E+00 3.213E-02 1.933E-02
5.00000E+00 3.045E-02 1.920E-02
6.00000E+00 2.952E-02 1.930E-02
8.00000E+00 2.875E-02 1.973E-02
1.00000E+01 2.871E-02 2.025E-02
1.50000E+01 2.951E-02 2.127E-02
2.00000E+01 3.068E-02 2.193E-02

Manganese
Z = 25


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  8.093E+03  8.069E+03
   1.50000E-03  2.984E+03  2.975E+03
   2.00000E-03  1.421E+03  1.415E+03
   3.00000E-03  4.851E+02  4.815E+02
   4.00000E-03  2.229E+02  2.201E+02
   5.00000E-03  1.212E+02  1.188E+02
   6.00000E-03  7.350E+01  7.150E+01
   6.53900E-03  5.803E+01  5.619E+01
K  6.53900E-03  4.520E+02  3.415E+02
   8.00000E-03  2.734E+02  2.177E+02
   1.00000E-02  1.514E+02  1.262E+02
   1.50000E-02  5.027E+01  4.414E+01
   2.00000E-02  2.253E+01  2.015E+01
   3.00000E-02  7.141E+00  6.382E+00
   4.00000E-02  3.169E+00  2.757E+00
   5.00000E-02  1.714E+00  1.425E+00
   6.00000E-02  1.060E+00  8.294E-01
   8.00000E-02  5.306E-01  3.558E-01
   1.00000E-01  3.367E-01  1.894E-01
   1.50000E-01  1.838E-01  7.085E-02
   2.00000E-01  1.391E-01  4.421E-02
   3.00000E-01  1.062E-01  3.196E-02
   4.00000E-01  9.133E-02  2.932E-02
   5.00000E-01  8.192E-02  2.827E-02
   6.00000E-01  7.509E-02  2.760E-02
   8.00000E-01  6.537E-02  2.647E-02
   1.00000E+00  5.852E-02  2.541E-02
   1.25000E+00  5.224E-02  2.416E-02
   1.50000E+00  4.769E-02  2.307E-02
   2.00000E+00  4.162E-02  2.149E-02
   3.00000E+00  3.524E-02  1.989E-02
   4.00000E+00  3.213E-02  1.933E-02
   5.00000E+00  3.045E-02  1.920E-02
   6.00000E+00  2.952E-02  1.930E-02
   8.00000E+00  2.875E-02  1.973E-02
   1.00000E+01  2.871E-02  2.025E-02
   1.50000E+01  2.951E-02  2.127E-02
   2.00000E+01  3.068E-02  2.193E-02
