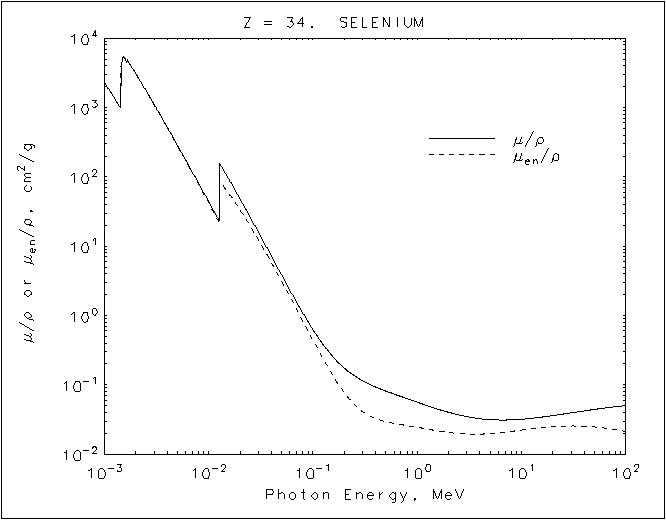

Selenium graph


Selenium
Z = 34


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 2.317E+03 2.312E+03
1.19825E-03 1.512E+03 1.506E+03
1.43580E-03 9.814E+02 9.760E+02
L3 1.43580E-03 4.347E+03 4.287E+03
  1.45586E-03 4.057E+03 4.002E+03
1.47620E-03 3.907E+03 3.855E+03
L2 1.47620E-03 5.186E+03 5.112E+03
  1.50000E-03 5.336E+03 5.260E+03
1.65390E-03 4.342E+03 4.284E+03
L1 1.65390E-03 4.915E+03 4.849E+03
  2.00000E-03 3.098E+03 3.062E+03
3.00000E-03 1.116E+03 1.104E+03
4.00000E-03 5.252E+02 5.187E+02
5.00000E-03 2.896E+02 2.851E+02
6.00000E-03 1.773E+02 1.737E+02
8.00000E-03 8.116E+01 7.865E+01
1.00000E-02 4.414E+01 4.221E+01
1.26578E-02 2.318E+01 2.173E+01
K 1.26578E-02 1.589E+02 8.599E+01
  1.50000E-02 1.033E+02 6.270E+01
2.00000E-02 4.818E+01 3.352E+01
3.00000E-02 1.596E+01 1.240E+01
4.00000E-02 7.184E+00 5.796E+00
5.00000E-02 3.864E+00 3.143E+00
6.00000E-02 2.341E+00 1.886E+00
8.00000E-02 1.090E+00 8.332E-01
1.00000E-01 6.278E-01 4.426E-01
1.50000E-01 2.703E-01 1.483E-01
2.00000E-01 1.742E-01 7.695E-02
3.00000E-01 1.144E-01 4.113E-02
4.00000E-01 9.299E-02 3.261E-02
5.00000E-01 8.129E-02 2.941E-02
6.00000E-01 7.350E-02 2.775E-02
8.00000E-01 6.314E-02 2.581E-02
1.00000E+00 5.619E-02 2.446E-02
1.25000E+00 4.999E-02 2.306E-02
1.50000E+00 4.564E-02 2.195E-02
2.00000E+00 4.010E-02 2.052E-02
3.00000E+00 3.476E-02 1.947E-02
4.00000E+00 3.247E-02 1.944E-02
5.00000E+00 3.145E-02 1.978E-02
6.00000E+00 3.105E-02 2.025E-02
8.00000E+00 3.119E-02 2.130E-02
1.00000E+01 3.186E-02 2.226E-02
1.50000E+01 3.395E-02 2.394E-02
2.00000E+01 3.599E-02 2.487E-02

Selenium
Z = 34


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  2.317E+03  2.312E+03
   1.19825E-03  1.512E+03  1.506E+03
   1.43580E-03  9.814E+02  9.760E+02
L3 1.43580E-03  4.347E+03  4.287E+03
   1.45586E-03  4.057E+03  4.002E+03
   1.47620E-03  3.907E+03  3.855E+03
L2 1.47620E-03  5.186E+03  5.112E+03
   1.50000E-03  5.336E+03  5.260E+03
   1.65390E-03  4.342E+03  4.284E+03
L1 1.65390E-03  4.915E+03  4.849E+03
   2.00000E-03  3.098E+03  3.062E+03
   3.00000E-03  1.116E+03  1.104E+03
   4.00000E-03  5.252E+02  5.187E+02
   5.00000E-03  2.896E+02  2.851E+02
   6.00000E-03  1.773E+02  1.737E+02
   8.00000E-03  8.116E+01  7.865E+01
   1.00000E-02  4.414E+01  4.221E+01
   1.26578E-02  2.318E+01  2.173E+01
K  1.26578E-02  1.589E+02  8.599E+01
   1.50000E-02  1.033E+02  6.270E+01
   2.00000E-02  4.818E+01  3.352E+01
   3.00000E-02  1.596E+01  1.240E+01
   4.00000E-02  7.184E+00  5.796E+00
   5.00000E-02  3.864E+00  3.143E+00
   6.00000E-02  2.341E+00  1.886E+00
   8.00000E-02  1.090E+00  8.332E-01
   1.00000E-01  6.278E-01  4.426E-01
   1.50000E-01  2.703E-01  1.483E-01
   2.00000E-01  1.742E-01  7.695E-02
   3.00000E-01  1.144E-01  4.113E-02
   4.00000E-01  9.299E-02  3.261E-02
   5.00000E-01  8.129E-02  2.941E-02
   6.00000E-01  7.350E-02  2.775E-02
   8.00000E-01  6.314E-02  2.581E-02
   1.00000E+00  5.619E-02  2.446E-02
   1.25000E+00  4.999E-02  2.306E-02
   1.50000E+00  4.564E-02  2.195E-02
   2.00000E+00  4.010E-02  2.052E-02
   3.00000E+00  3.476E-02  1.947E-02
   4.00000E+00  3.247E-02  1.944E-02
   5.00000E+00  3.145E-02  1.978E-02
   6.00000E+00  3.105E-02  2.025E-02
   8.00000E+00  3.119E-02  2.130E-02
   1.00000E+01  3.186E-02  2.226E-02
   1.50000E+01  3.395E-02  2.394E-02
   2.00000E+01  3.599E-02  2.487E-02
