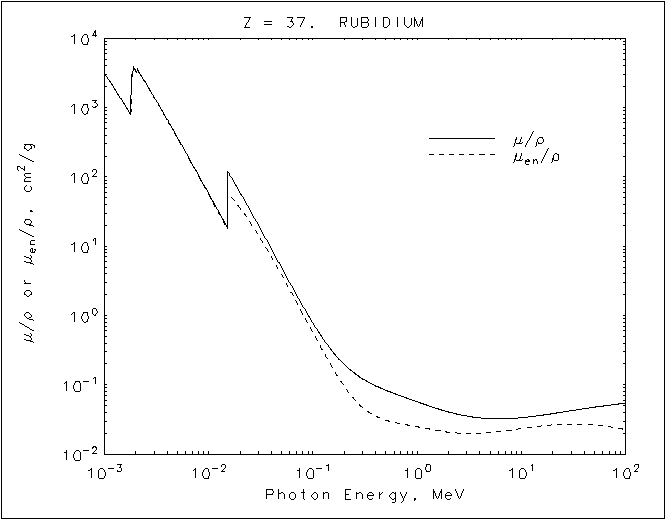

Rubidium graph


Rubidium
Z = 37


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 3.174E+03 3.168E+03
1.50000E-03 1.219E+03 1.213E+03
1.80440E-03 7.782E+02 7.726E+02
L3 1.80440E-03 3.096E+03 3.040E+03
  1.83391E-03 2.969E+03 2.915E+03
1.86390E-03 2.861E+03 2.810E+03
L2 1.86390E-03 3.957E+03 3.880E+03
  2.00000E-03 3.410E+03 3.347E+03
2.06510E-03 3.153E+03 3.096E+03
L1 2.06510E-03 3.606E+03 3.540E+03
  3.00000E-03 1.418E+03 1.397E+03
4.00000E-03 6.748E+02 6.648E+02
5.00000E-03 3.744E+02 3.682E+02
6.00000E-03 2.300E+02 2.255E+02
8.00000E-03 1.058E+02 1.028E+02
1.00000E-02 5.766E+01 5.541E+01
1.50000E-02 1.909E+01 1.775E+01
1.51997E-02 1.842E+01 1.709E+01
K 1.51997E-02 1.208E+02 5.864E+01
  2.00000E-02 5.980E+01 3.581E+01
3.00000E-02 2.009E+01 1.436E+01
4.00000E-02 9.112E+00 6.963E+00
5.00000E-02 4.918E+00 3.858E+00
6.00000E-02 2.979E+00 2.349E+00
8.00000E-02 1.375E+00 1.056E+00
1.00000E-01 7.799E-01 5.649E-01
1.50000E-01 3.187E-01 1.881E-01
2.00000E-01 1.960E-01 9.465E-02
3.00000E-01 1.219E-01 4.690E-02
4.00000E-01 9.670E-02 3.531E-02
5.00000E-01 8.360E-02 3.098E-02
6.00000E-01 7.510E-02 2.878E-02
8.00000E-01 6.412E-02 2.638E-02
1.00000E+00 5.689E-02 2.484E-02
1.25000E+00 5.053E-02 2.332E-02
1.50000E+00 4.613E-02 2.217E-02
2.00000E+00 4.061E-02 2.074E-02
3.00000E+00 3.545E-02 1.983E-02
4.00000E+00 3.335E-02 1.996E-02
5.00000E+00 3.250E-02 2.045E-02
6.00000E+00 3.227E-02 2.105E-02
8.00000E+00 3.267E-02 2.231E-02
1.00000E+01 3.357E-02 2.343E-02
1.50000E+01 3.610E-02 2.538E-02
2.00000E+01 3.845E-02 2.645E-02

Rubidium
Z = 37


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  3.174E+03  3.168E+03
   1.50000E-03  1.219E+03  1.213E+03
   1.80440E-03  7.782E+02  7.726E+02
L3 1.80440E-03  3.096E+03  3.040E+03
   1.83391E-03  2.969E+03  2.915E+03
   1.86390E-03  2.861E+03  2.810E+03
L2 1.86390E-03  3.957E+03  3.880E+03
   2.00000E-03  3.410E+03  3.347E+03
   2.06510E-03  3.153E+03  3.096E+03
L1 2.06510E-03  3.606E+03  3.540E+03
   3.00000E-03  1.418E+03  1.397E+03
   4.00000E-03  6.748E+02  6.648E+02
   5.00000E-03  3.744E+02  3.682E+02
   6.00000E-03  2.300E+02  2.255E+02
   8.00000E-03  1.058E+02  1.028E+02
   1.00000E-02  5.766E+01  5.541E+01
   1.50000E-02  1.909E+01  1.775E+01
   1.51997E-02  1.842E+01  1.709E+01
K  1.51997E-02  1.208E+02  5.864E+01
   2.00000E-02  5.980E+01  3.581E+01
   3.00000E-02  2.009E+01  1.436E+01
   4.00000E-02  9.112E+00  6.963E+00
   5.00000E-02  4.918E+00  3.858E+00
   6.00000E-02  2.979E+00  2.349E+00
   8.00000E-02  1.375E+00  1.056E+00
   1.00000E-01  7.799E-01  5.649E-01
   1.50000E-01  3.187E-01  1.881E-01
   2.00000E-01  1.960E-01  9.465E-02
   3.00000E-01  1.219E-01  4.690E-02
   4.00000E-01  9.670E-02  3.531E-02
   5.00000E-01  8.360E-02  3.098E-02
   6.00000E-01  7.510E-02  2.878E-02
   8.00000E-01  6.412E-02  2.638E-02
   1.00000E+00  5.689E-02  2.484E-02
   1.25000E+00  5.053E-02  2.332E-02
   1.50000E+00  4.613E-02  2.217E-02
   2.00000E+00  4.061E-02  2.074E-02
   3.00000E+00  3.545E-02  1.983E-02
   4.00000E+00  3.335E-02  1.996E-02
   5.00000E+00  3.250E-02  2.045E-02
   6.00000E+00  3.227E-02  2.105E-02
   8.00000E+00  3.267E-02  2.231E-02
   1.00000E+01  3.357E-02  2.343E-02
   1.50000E+01  3.610E-02  2.538E-02
   2.00000E+01  3.845E-02  2.645E-02
