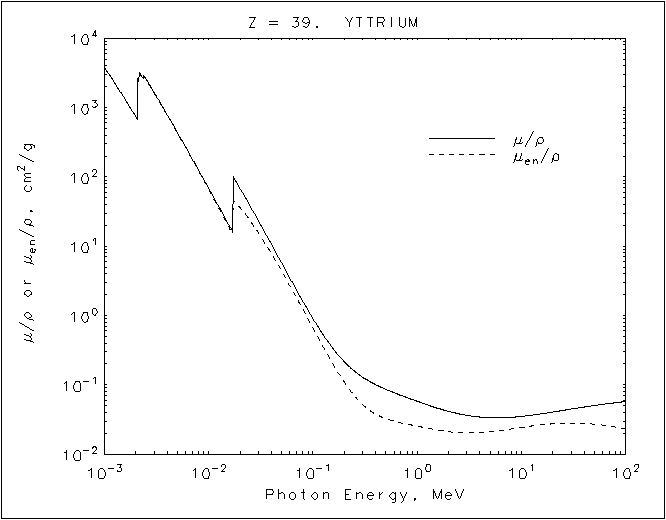

Yttrium graph


Yttrium
Z = 39


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 3.864E+03 3.857E+03
1.50000E-03 1.493E+03 1.487E+03
2.00000E-03 7.422E+02 7.365E+02
2.08000E-03 6.738E+02 6.682E+02
L3 2.08000E-03 2.627E+03 2.569E+03
  2.11741E-03 2.466E+03 2.412E+03
2.15550E-03 2.342E+03 2.292E+03
L2 2.15550E-03 3.264E+03 3.187E+03
  2.26140E-03 2.916E+03 2.849E+03
2.37250E-03 2.597E+03 2.540E+03
L1 2.37250E-03 2.962E+03 2.897E+03
  3.00000E-03 1.654E+03 1.623E+03
4.00000E-03 7.936E+02 7.798E+02
5.00000E-03 4.424E+02 4.344E+02
6.00000E-03 2.725E+02 2.670E+02
8.00000E-03 1.258E+02 1.224E+02
1.00000E-02 6.871E+01 6.619E+01
1.50000E-02 2.279E+01 2.130E+01
1.70384E-02 1.612E+01 1.486E+01
K 1.70384E-02 1.029E+02 4.672E+01
  2.00000E-02 6.855E+01 3.620E+01
3.00000E-02 2.330E+01 1.558E+01
4.00000E-02 1.065E+01 7.790E+00
5.00000E-02 5.764E+00 4.388E+00
6.00000E-02 3.493E+00 2.699E+00
8.00000E-02 1.607E+00 1.228E+00
1.00000E-01 9.047E-01 6.616E-01
1.50000E-01 3.595E-01 2.203E-01
2.00000E-01 2.149E-01 1.093E-01
3.00000E-01 1.289E-01 5.186E-02
4.00000E-01 1.006E-01 3.779E-02
5.00000E-01 8.613E-02 3.249E-02
6.00000E-01 7.703E-02 2.986E-02
8.00000E-01 6.546E-02 2.708E-02
1.00000E+00 5.795E-02 2.537E-02
1.25000E+00 5.141E-02 2.375E-02
1.50000E+00 4.692E-02 2.254E-02
2.00000E+00 4.137E-02 2.109E-02
3.00000E+00 3.628E-02 2.026E-02
4.00000E+00 3.428E-02 2.048E-02
5.00000E+00 3.355E-02 2.107E-02
6.00000E+00 3.341E-02 2.174E-02
8.00000E+00 3.399E-02 2.311E-02
1.00000E+01 3.504E-02 2.432E-02
1.50000E+01 3.790E-02 2.638E-02
2.00000E+01 4.048E-02 2.746E-02
2.00000E+01 3.741E-02 2.610E-02

Yttrium
Z = 39


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  3.864E+03  3.857E+03
   1.50000E-03  1.493E+03  1.487E+03
   2.00000E-03  7.422E+02  7.365E+02
   2.08000E-03  6.738E+02  6.682E+02
L3 2.08000E-03  2.627E+03  2.569E+03
   2.11741E-03  2.466E+03  2.412E+03
   2.15550E-03  2.342E+03  2.292E+03
L2 2.15550E-03  3.264E+03  3.187E+03
   2.26140E-03  2.916E+03  2.849E+03
   2.37250E-03  2.597E+03  2.540E+03
L1 2.37250E-03  2.962E+03  2.897E+03
   3.00000E-03  1.654E+03  1.623E+03
   4.00000E-03  7.936E+02  7.798E+02
   5.00000E-03  4.424E+02  4.344E+02
   6.00000E-03  2.725E+02  2.670E+02
   8.00000E-03  1.258E+02  1.224E+02
   1.00000E-02  6.871E+01  6.619E+01
   1.50000E-02  2.279E+01  2.130E+01
   1.70384E-02  1.612E+01  1.486E+01
K  1.70384E-02  1.029E+02  4.672E+01
   2.00000E-02  6.855E+01  3.620E+01
   3.00000E-02  2.330E+01  1.558E+01
   4.00000E-02  1.065E+01  7.790E+00
   5.00000E-02  5.764E+00  4.388E+00
   6.00000E-02  3.493E+00  2.699E+00
   8.00000E-02  1.607E+00  1.228E+00
   1.00000E-01  9.047E-01  6.616E-01
   1.50000E-01  3.595E-01  2.203E-01
   2.00000E-01  2.149E-01  1.093E-01
   3.00000E-01  1.289E-01  5.186E-02
   4.00000E-01  1.006E-01  3.779E-02
   5.00000E-01  8.613E-02  3.249E-02
   6.00000E-01  7.703E-02  2.986E-02
   8.00000E-01  6.546E-02  2.708E-02
   1.00000E+00  5.795E-02  2.537E-02
   1.25000E+00  5.141E-02  2.375E-02
   1.50000E+00  4.692E-02  2.254E-02
   2.00000E+00  4.137E-02  2.109E-02
   3.00000E+00  3.628E-02  2.026E-02
   4.00000E+00  3.428E-02  2.048E-02
   5.00000E+00  3.355E-02  2.107E-02
   6.00000E+00  3.341E-02  2.174E-02
   8.00000E+00  3.399E-02  2.311E-02
   1.00000E+01  3.504E-02  2.432E-02
   1.50000E+01  3.790E-02  2.638E-02
   2.00000E+01  4.048E-02  2.746E-02
