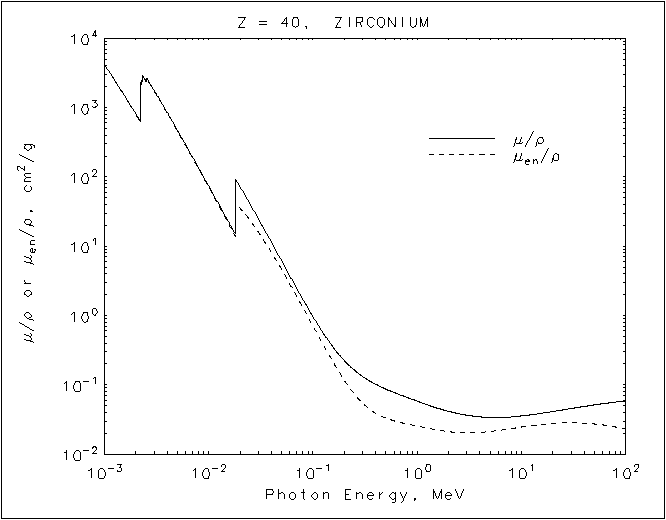

Zirconium graph


Zirconium
Z = 40


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 4.210E+03 4.203E+03
1.50000E-03 1.631E+03 1.625E+03
2.00000E-03 8.115E+02 8.057E+02
2.22230E-03 6.258E+02 6.201E+02
L3 2.22230E-03 2.392E+03 2.335E+03
  2.26411E-03 2.239E+03 2.186E+03
2.30670E-03 2.120E+03 2.071E+03
L2 2.30670E-03 2.953E+03 2.878E+03
  2.41654E-03 2.641E+03 2.575E+03
2.53160E-03 2.359E+03 2.303E+03
L1 2.53160E-03 2.691E+03 2.627E+03
  3.00000E-03 1.772E+03 1.734E+03
4.00000E-03 8.507E+02 8.344E+02
5.00000E-03 4.755E+02 4.664E+02
6.00000E-03 2.935E+02 2.873E+02
8.00000E-03 1.356E+02 1.320E+02
1.00000E-02 7.417E+01 7.150E+01
1.50000E-02 2.463E+01 2.308E+01
1.79976E-02 1.501E+01 1.380E+01
K 1.79976E-02 9.470E+01 4.164E+01
  2.00000E-02 7.237E+01 3.555E+01
3.00000E-02 2.485E+01 1.600E+01
4.00000E-02 1.139E+01 8.129E+00
5.00000E-02 6.173E+00 4.621E+00
6.00000E-02 3.744E+00 2.859E+00
8.00000E-02 1.721E+00 1.310E+00
1.00000E-01 9.658E-01 7.080E-01
1.50000E-01 3.790E-01 2.361E-01
2.00000E-01 2.237E-01 1.164E-01
3.00000E-01 1.318E-01 5.420E-02
4.00000E-01 1.018E-01 3.885E-02
5.00000E-01 8.693E-02 3.311E-02
6.00000E-01 7.756E-02 3.025E-02
8.00000E-01 6.571E-02 2.726E-02
1.00000E+00 5.810E-02 2.547E-02
1.25000E+00 5.150E-02 2.380E-02
1.50000E+00 4.700E-02 2.257E-02
2.00000E+00 4.146E-02 2.112E-02
3.00000E+00 3.644E-02 2.033E-02
4.00000E+00 3.451E-02 2.061E-02
5.00000E+00 3.384E-02 2.123E-02
6.00000E+00 3.374E-02 2.193E-02
8.00000E+00 3.441E-02 2.335E-02
1.00000E+01 3.554E-02 2.460E-02
1.50000E+01 3.855E-02 2.670E-02
2.00000E+01 4.122E-02 2.778E-02

Zirconium
Z = 40


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  4.210E+03  4.203E+03
   1.50000E-03  1.631E+03  1.625E+03
   2.00000E-03  8.115E+02  8.057E+02
   2.22230E-03  6.258E+02  6.201E+02
L3 2.22230E-03  2.392E+03  2.335E+03
   2.26411E-03  2.239E+03  2.186E+03
   2.30670E-03  2.120E+03  2.071E+03
L2 2.30670E-03  2.953E+03  2.878E+03
   2.41654E-03  2.641E+03  2.575E+03
   2.53160E-03  2.359E+03  2.303E+03
L1 2.53160E-03  2.691E+03  2.627E+03
   3.00000E-03  1.772E+03  1.734E+03
   4.00000E-03  8.507E+02  8.344E+02
   5.00000E-03  4.755E+02  4.664E+02
   6.00000E-03  2.935E+02  2.873E+02
   8.00000E-03  1.356E+02  1.320E+02
   1.00000E-02  7.417E+01  7.150E+01
   1.50000E-02  2.463E+01  2.308E+01
   1.79976E-02  1.501E+01  1.380E+01
K  1.79976E-02  9.470E+01  4.164E+01
   2.00000E-02  7.237E+01  3.555E+01
   3.00000E-02  2.485E+01  1.600E+01
   4.00000E-02  1.139E+01  8.129E+00
   5.00000E-02  6.173E+00  4.621E+00
   6.00000E-02  3.744E+00  2.859E+00
   8.00000E-02  1.721E+00  1.310E+00
   1.00000E-01  9.658E-01  7.080E-01
   1.50000E-01  3.790E-01  2.361E-01
   2.00000E-01  2.237E-01  1.164E-01
   3.00000E-01  1.318E-01  5.420E-02
   4.00000E-01  1.018E-01  3.885E-02
   5.00000E-01  8.693E-02  3.311E-02
   6.00000E-01  7.756E-02  3.025E-02
   8.00000E-01  6.571E-02  2.726E-02
   1.00000E+00  5.810E-02  2.547E-02
   1.25000E+00  5.150E-02  2.380E-02
   1.50000E+00  4.700E-02  2.257E-02
   2.00000E+00  4.146E-02  2.112E-02
   3.00000E+00  3.644E-02  2.033E-02
   4.00000E+00  3.451E-02  2.061E-02
   5.00000E+00  3.384E-02  2.123E-02
   6.00000E+00  3.374E-02  2.193E-02
   8.00000E+00  3.441E-02  2.335E-02
   1.00000E+01  3.554E-02  2.460E-02
   1.50000E+01  3.855E-02  2.670E-02
   2.00000E+01  4.122E-02  2.778E-02
