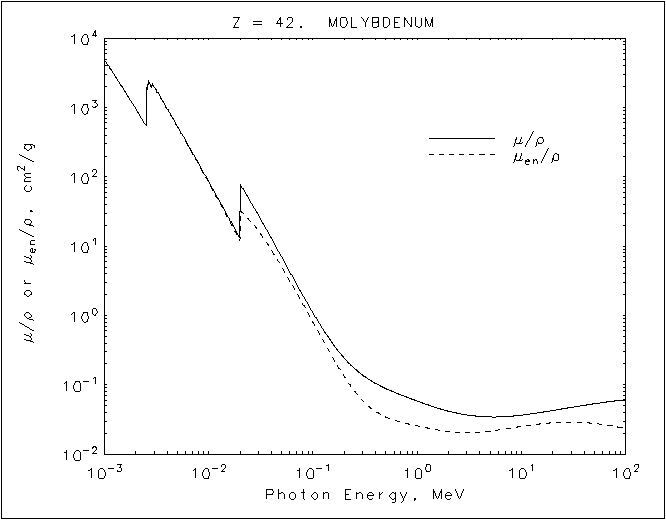

Molybdenum graph


Molybdenum
Z = 42


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 4.942E+03 4.935E+03
1.50000E-03 1.925E+03 1.918E+03
2.00000E-03 9.593E+02 9.531E+02
2.52020E-03 5.415E+02 5.358E+02
L3 2.52020E-03 1.979E+03 1.924E+03
  2.57212E-03 1.854E+03 1.802E+03
2.62510E-03 1.750E+03 1.703E+03
L2 2.62510E-03 2.433E+03 2.360E+03
  2.74267E-03 2.183E+03 2.119E+03
2.86550E-03 1.961E+03 1.906E+03
L1 2.86550E-03 2.243E+03 2.179E+03
  3.00000E-03 2.011E+03 1.956E+03
4.00000E-03 9.703E+02 9.475E+02
5.00000E-03 5.450E+02 5.328E+02
6.00000E-03 3.373E+02 3.295E+02
8.00000E-03 1.565E+02 1.522E+02
1.00000E-02 8.576E+01 8.275E+01
1.50000E-02 2.854E+01 2.684E+01
1.99995E-02 1.308E+01 1.193E+01
K 1.99995E-02 8.055E+01 3.293E+01
  2.00000E-02 8.054E+01 3.336E+01
3.00000E-02 2.810E+01 1.664E+01
4.00000E-02 1.294E+01 8.757E+00
5.00000E-02 7.037E+00 5.074E+00
6.00000E-02 4.274E+00 3.178E+00
8.00000E-02 1.962E+00 1.477E+00
1.00000E-01 1.096E+00 8.042E-01
1.50000E-01 4.208E-01 2.693E-01
2.00000E-01 2.423E-01 1.316E-01
3.00000E-01 1.379E-01 5.919E-02
4.00000E-01 1.047E-01 4.117E-02
5.00000E-01 8.848E-02 3.437E-02
6.00000E-01 7.851E-02 3.104E-02
8.00000E-01 6.619E-02 2.764E-02
1.00000E+00 5.837E-02 2.567E-02
1.25000E+00 5.167E-02 2.390E-02
1.50000E+00 4.713E-02 2.263E-02
2.00000E+00 4.163E-02 2.118E-02
3.00000E+00 3.675E-02 2.046E-02
4.00000E+00 3.496E-02 2.084E-02
5.00000E+00 3.439E-02 2.153E-02
6.00000E+00 3.440E-02 2.231E-02
8.00000E+00 3.523E-02 2.382E-02
1.00000E+01 3.650E-02 2.513E-02
1.50000E+01 3.978E-02 2.731E-02
2.00000E+01 4.264E-02 2.840E-02

Molybdenum
Z = 42


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  4.942E+03  4.935E+03
   1.50000E-03  1.925E+03  1.918E+03
   2.00000E-03  9.593E+02  9.531E+02
   2.52020E-03  5.415E+02  5.358E+02
L3 2.52020E-03  1.979E+03  1.924E+03
   2.57212E-03  1.854E+03  1.802E+03
   2.62510E-03  1.750E+03  1.703E+03
L2 2.62510E-03  2.433E+03  2.360E+03
   2.74267E-03  2.183E+03  2.119E+03
   2.86550E-03  1.961E+03  1.906E+03
L1 2.86550E-03  2.243E+03  2.179E+03
   3.00000E-03  2.011E+03  1.956E+03
   4.00000E-03  9.703E+02  9.475E+02
   5.00000E-03  5.450E+02  5.328E+02
   6.00000E-03  3.373E+02  3.295E+02
   8.00000E-03  1.565E+02  1.522E+02
   1.00000E-02  8.576E+01  8.275E+01
   1.50000E-02  2.854E+01  2.684E+01
   1.99995E-02  1.308E+01  1.193E+01
K  1.99995E-02  8.055E+01  3.293E+01
   2.00000E-02  8.054E+01  3.336E+01
   3.00000E-02  2.810E+01  1.664E+01
   4.00000E-02  1.294E+01  8.757E+00
   5.00000E-02  7.037E+00  5.074E+00
   6.00000E-02  4.274E+00  3.178E+00
   8.00000E-02  1.962E+00  1.477E+00
   1.00000E-01  1.096E+00  8.042E-01
   1.50000E-01  4.208E-01  2.693E-01
   2.00000E-01  2.423E-01  1.316E-01
   3.00000E-01  1.379E-01  5.919E-02
   4.00000E-01  1.047E-01  4.117E-02
   5.00000E-01  8.848E-02  3.437E-02
   6.00000E-01  7.851E-02  3.104E-02
   8.00000E-01  6.619E-02  2.764E-02
   1.00000E+00  5.837E-02  2.567E-02
   1.25000E+00  5.167E-02  2.390E-02
   1.50000E+00  4.713E-02  2.263E-02
   2.00000E+00  4.163E-02  2.118E-02
   3.00000E+00  3.675E-02  2.046E-02
   4.00000E+00  3.496E-02  2.084E-02
   5.00000E+00  3.439E-02  2.153E-02
   6.00000E+00  3.440E-02  2.231E-02
   8.00000E+00  3.523E-02  2.382E-02
   1.00000E+01  3.650E-02  2.513E-02
   1.50000E+01  3.978E-02  2.731E-02
   2.00000E+01  4.264E-02  2.840E-02
