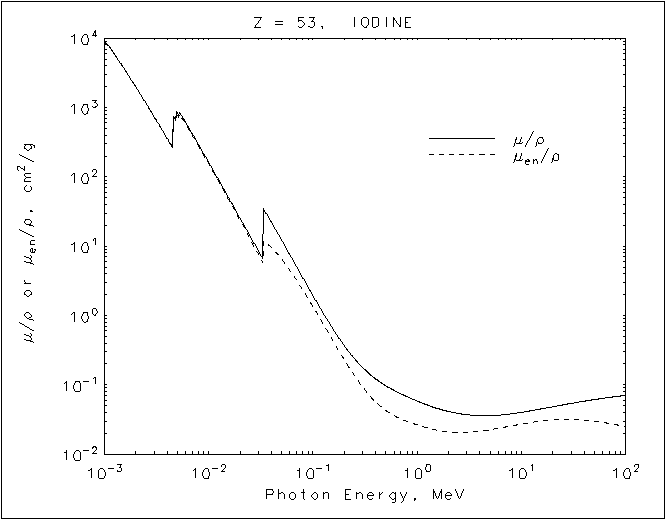

Iodine graph


Iodine
Z = 53


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 9.096E+03 9.078E+03
1.03542E-03 8.465E+03 8.448E+03
1.07210E-03 7.863E+03 7.847E+03
M1 1.07210E-03 8.198E+03 8.181E+03
  1.50000E-03 3.919E+03 3.908E+03
2.00000E-03 1.997E+03 1.988E+03
3.00000E-03 7.420E+02 7.351E+02
4.00000E-03 3.607E+02 3.548E+02
4.55710E-03 2.592E+02 2.537E+02
L3 4.55710E-03 7.550E+02 7.121E+02
  4.70229E-03 7.123E+02 6.724E+02
4.85210E-03 6.636E+02 6.270E+02
L2 4.85210E-03 8.943E+02 8.375E+02
  5.00000E-03 8.430E+02 7.903E+02
5.18810E-03 7.665E+02 7.198E+02
L1 5.18810E-03 8.837E+02 8.283E+02
  6.00000E-03 6.173E+02 5.822E+02
8.00000E-03 2.922E+02 2.777E+02
1.00000E-02 1.626E+02 1.548E+02
1.50000E-02 5.512E+01 5.208E+01
2.00000E-02 2.543E+01 2.363E+01
3.00000E-02 8.561E+00 7.622E+00
3.31694E-02 6.553E+00 5.744E+00
K 3.31694E-02 3.582E+01 1.188E+01
  4.00000E-02 2.210E+01 9.616E+00
5.00000E-02 1.232E+01 6.573E+00
6.00000E-02 7.579E+00 4.518E+00
8.00000E-02 3.510E+00 2.331E+00
1.00000E-01 1.942E+00 1.342E+00
1.50000E-01 6.978E-01 4.742E-01
2.00000E-01 3.663E-01 2.295E-01
3.00000E-01 1.771E-01 9.257E-02
4.00000E-01 1.217E-01 5.650E-02
5.00000E-01 9.701E-02 4.267E-02
6.00000E-01 8.313E-02 3.598E-02
8.00000E-01 6.749E-02 2.962E-02
1.00000E+00 5.841E-02 2.646E-02
1.25000E+00 5.111E-02 2.399E-02
1.50000E+00 4.647E-02 2.243E-02
2.00000E+00 4.124E-02 2.092E-02
3.00000E+00 3.716E-02 2.059E-02
4.00000E+00 3.607E-02 2.142E-02
5.00000E+00 3.608E-02 2.250E-02
6.00000E+00 3.655E-02 2.357E-02
8.00000E+00 3.815E-02 2.553E-02
1.00000E+01 4.002E-02 2.714E-02
1.50000E+01 4.455E-02 2.980E-02
2.00000E+01 4.823E-02 3.101E-02

Iodine
Z = 53


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  9.096E+03  9.078E+03
   1.03542E-03  8.465E+03  8.448E+03
   1.07210E-03  7.863E+03  7.847E+03
M1 1.07210E-03  8.198E+03  8.181E+03
   1.50000E-03  3.919E+03  3.908E+03
   2.00000E-03  1.997E+03  1.988E+03
   3.00000E-03  7.420E+02  7.351E+02
   4.00000E-03  3.607E+02  3.548E+02
   4.55710E-03  2.592E+02  2.537E+02
L3 4.55710E-03  7.550E+02  7.121E+02
   4.70229E-03  7.123E+02  6.724E+02
   4.85210E-03  6.636E+02  6.270E+02
L2 4.85210E-03  8.943E+02  8.375E+02
   5.00000E-03  8.430E+02  7.903E+02
   5.18810E-03  7.665E+02  7.198E+02
L1 5.18810E-03  8.837E+02  8.283E+02
   6.00000E-03  6.173E+02  5.822E+02
   8.00000E-03  2.922E+02  2.777E+02
   1.00000E-02  1.626E+02  1.548E+02
   1.50000E-02  5.512E+01  5.208E+01
   2.00000E-02  2.543E+01  2.363E+01
   3.00000E-02  8.561E+00  7.622E+00
   3.31694E-02  6.553E+00  5.744E+00
K  3.31694E-02  3.582E+01  1.188E+01
   4.00000E-02  2.210E+01  9.616E+00
   5.00000E-02  1.232E+01  6.573E+00
   6.00000E-02  7.579E+00  4.518E+00
   8.00000E-02  3.510E+00  2.331E+00
   1.00000E-01  1.942E+00  1.342E+00
   1.50000E-01  6.978E-01  4.742E-01
   2.00000E-01  3.663E-01  2.295E-01
   3.00000E-01  1.771E-01  9.257E-02
   4.00000E-01  1.217E-01  5.650E-02
   5.00000E-01  9.701E-02  4.267E-02
   6.00000E-01  8.313E-02  3.598E-02
   8.00000E-01  6.749E-02  2.962E-02
   1.00000E+00  5.841E-02  2.646E-02
   1.25000E+00  5.111E-02  2.399E-02
   1.50000E+00  4.647E-02  2.243E-02
   2.00000E+00  4.124E-02  2.092E-02
   3.00000E+00  3.716E-02  2.059E-02
   4.00000E+00  3.607E-02  2.142E-02
   5.00000E+00  3.608E-02  2.250E-02
   6.00000E+00  3.655E-02  2.357E-02
   8.00000E+00  3.815E-02  2.553E-02
   1.00000E+01  4.002E-02  2.714E-02
   1.50000E+01  4.455E-02  2.980E-02
   2.00000E+01  4.823E-02  3.101E-02
