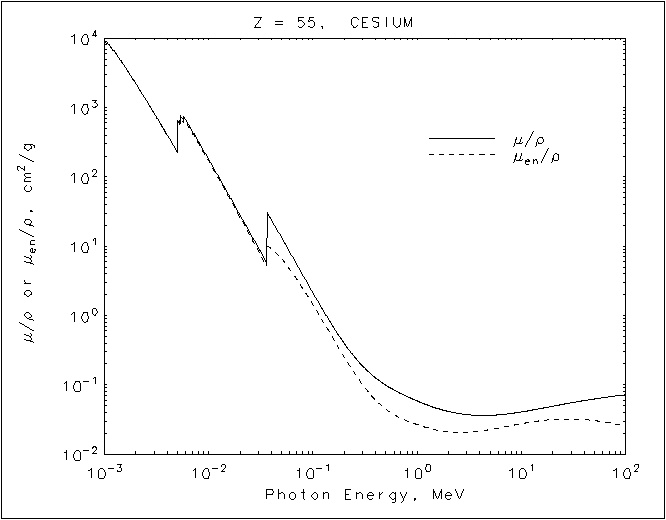

Cesium graph


Cesium
Z = 55


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 9.365E+03 9.343E+03
1.03199E-03 8.775E+03 8.754E+03
1.06500E-03 8.214E+03 8.194E+03
M2 1.06500E-03 8.685E+03 8.663E+03
  1.13851E-03 7.576E+03 7.557E+03
1.21710E-03 6.584E+03 6.567E+03
M1 1.21710E-03 6.888E+03 6.870E+03
  1.50000E-03 4.335E+03 4.322E+03
2.00000E-03 2.226E+03 2.216E+03
3.00000E-03 8.319E+02 8.246E+02
4.00000E-03 4.055E+02 3.994E+02
5.00000E-03 2.303E+02 2.251E+02
5.01190E-03 2.290E+02 2.237E+02
L3 5.01190E-03 6.674E+02 6.248E+02
  5.18274E-03 6.184E+02 5.763E+02
5.35940E-03 5.645E+02 5.299E+02
L2 5.35940E-03 7.692E+02 7.142E+02
  5.53401E-03 7.146E+02 6.610E+02
5.71430E-03 6.556E+02 6.108E+02
L1 5.71430E-03 7.547E+02 7.015E+02
  6.00000E-03 6.711E+02 6.253E+02
8.00000E-03 3.214E+02 3.029E+02
1.00000E-02 1.793E+02 1.697E+02
1.50000E-02 6.104E+01 5.753E+01
2.00000E-02 2.822E+01 2.623E+01
3.00000E-02 9.507E+00 8.502E+00
3.59846E-02 5.863E+00 5.102E+00
K 3.59846E-02 3.143E+01 1.017E+01
  4.00000E-02 2.381E+01 9.185E+00
5.00000E-02 1.340E+01 6.618E+00
6.00000E-02 8.248E+00 4.653E+00
8.00000E-02 3.836E+00 2.464E+00
1.00000E-01 2.124E+00 1.438E+00
1.50000E-01 7.589E-01 5.154E-01
2.00000E-01 3.941E-01 2.502E-01
3.00000E-01 1.863E-01 1.000E-01
4.00000E-01 1.257E-01 6.003E-02
5.00000E-01 9.912E-02 4.463E-02
6.00000E-01 8.431E-02 3.717E-02
8.00000E-01 6.789E-02 3.014E-02
1.00000E+00 5.854E-02 2.671E-02
1.25000E+00 5.108E-02 2.408E-02
1.50000E+00 4.641E-02 2.246E-02
2.00000E+00 4.121E-02 2.091E-02
3.00000E+00 3.725E-02 2.064E-02
4.00000E+00 3.625E-02 2.153E-02
5.00000E+00 3.635E-02 2.268E-02
6.00000E+00 3.689E-02 2.380E-02
8.00000E+00 3.860E-02 2.583E-02
1.00000E+01 4.057E-02 2.750E-02
1.50000E+01 4.529E-02 3.026E-02
2.00000E+01 4.910E-02 3.152E-02

Cesium
Z = 55


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  9.365E+03  9.343E+03
   1.03199E-03  8.775E+03  8.754E+03
   1.06500E-03  8.214E+03  8.194E+03
M2 1.06500E-03  8.685E+03  8.663E+03
   1.13851E-03  7.576E+03  7.557E+03
   1.21710E-03  6.584E+03  6.567E+03
M1 1.21710E-03  6.888E+03  6.870E+03
   1.50000E-03  4.335E+03  4.322E+03
   2.00000E-03  2.226E+03  2.216E+03
   3.00000E-03  8.319E+02  8.246E+02
   4.00000E-03  4.055E+02  3.994E+02
   5.00000E-03  2.303E+02  2.251E+02
   5.01190E-03  2.290E+02  2.237E+02
L3 5.01190E-03  6.674E+02  6.248E+02
   5.18274E-03  6.184E+02  5.763E+02
   5.35940E-03  5.645E+02  5.299E+02
L2 5.35940E-03  7.692E+02  7.142E+02
   5.53401E-03  7.146E+02  6.610E+02
   5.71430E-03  6.556E+02  6.108E+02
L1 5.71430E-03  7.547E+02  7.015E+02
   6.00000E-03  6.711E+02  6.253E+02
   8.00000E-03  3.214E+02  3.029E+02
   1.00000E-02  1.793E+02  1.697E+02
   1.50000E-02  6.104E+01  5.753E+01
   2.00000E-02  2.822E+01  2.623E+01
   3.00000E-02  9.507E+00  8.502E+00
   3.59846E-02  5.863E+00  5.102E+00
K  3.59846E-02  3.143E+01  1.017E+01
   4.00000E-02  2.381E+01  9.185E+00
   5.00000E-02  1.340E+01  6.618E+00
   6.00000E-02  8.248E+00  4.653E+00
   8.00000E-02  3.836E+00  2.464E+00
   1.00000E-01  2.124E+00  1.438E+00
   1.50000E-01  7.589E-01  5.154E-01
   2.00000E-01  3.941E-01  2.502E-01
   3.00000E-01  1.863E-01  1.000E-01
   4.00000E-01  1.257E-01  6.003E-02
   5.00000E-01  9.912E-02  4.463E-02
   6.00000E-01  8.431E-02  3.717E-02
   8.00000E-01  6.789E-02  3.014E-02
   1.00000E+00  5.854E-02  2.671E-02
   1.25000E+00  5.108E-02  2.408E-02
   1.50000E+00  4.641E-02  2.246E-02
   2.00000E+00  4.121E-02  2.091E-02
   3.00000E+00  3.725E-02  2.064E-02
   4.00000E+00  3.625E-02  2.153E-02
   5.00000E+00  3.635E-02  2.268E-02
   6.00000E+00  3.689E-02  2.380E-02
   8.00000E+00  3.860E-02  2.583E-02
   1.00000E+01  4.057E-02  2.750E-02
   1.50000E+01  4.529E-02  3.026E-02
   2.00000E+01  4.910E-02  3.152E-02
