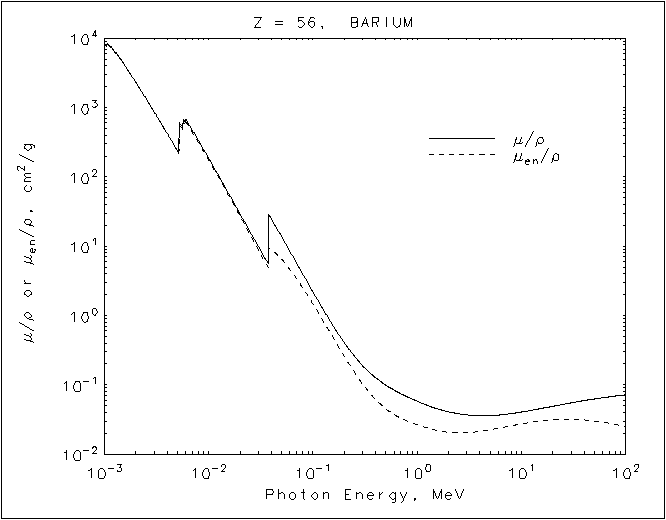

Barium graph


Barium
Z = 56


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 8.543E+03 8.521E+03
1.03063E-03 7.990E+03 7.969E+03
1.06220E-03 7.465E+03 7.445E+03
M3 1.06220E-03 8.547E+03 8.524E+03
  1.09882E-03 7.957E+03 7.935E+03
1.13670E-03 7.404E+03 7.384E+03
M2 1.13670E-03 7.837E+03 7.815E+03
  1.21224E-03 6.861E+03 6.841E+03
1.29280E-03 5.985E+03 5.968E+03
M1 1.29280E-03 6.255E+03 6.237E+03
  1.50000E-03 4.499E+03 4.485E+03
2.00000E-03 2.319E+03 2.308E+03
3.00000E-03 8.696E+02 8.622E+02
4.00000E-03 4.246E+02 4.184E+02
5.00000E-03 2.414E+02 2.361E+02
5.24700E-03 2.135E+02 2.084E+02
L3 5.24700E-03 6.098E+02 5.689E+02
  5.43204E-03 5.634E+02 5.263E+02
5.62360E-03 5.169E+02 4.835E+02
L2 5.62360E-03 7.016E+02 6.486E+02
  5.80333E-03 6.507E+02 6.025E+02
5.98880E-03 6.013E+02 5.577E+02
L1 5.98880E-03 6.930E+02 6.412E+02
  6.00000E-03 6.898E+02 6.383E+02
8.00000E-03 3.334E+02 3.127E+02
1.00000E-02 1.860E+02 1.754E+02
1.50000E-02 6.347E+01 5.972E+01
2.00000E-02 2.938E+01 2.730E+01
3.00000E-02 9.904E+00 8.875E+00
3.74406E-02 5.498E+00 4.768E+00
K 3.74406E-02 2.919E+01 9.346E+00
  4.00000E-02 2.457E+01 8.842E+00
5.00000E-02 1.379E+01 6.534E+00
6.00000E-02 8.511E+00 4.660E+00
8.00000E-02 3.963E+00 2.501E+00
1.00000E-01 2.196E+00 1.470E+00
1.50000E-01 7.828E-01 5.309E-01
2.00000E-01 4.046E-01 2.583E-01
3.00000E-01 1.891E-01 1.028E-01
4.00000E-01 1.265E-01 6.125E-02
5.00000E-01 9.923E-02 4.521E-02
6.00000E-01 8.410E-02 3.743E-02
8.00000E-01 6.744E-02 3.011E-02
1.00000E+00 5.803E-02 2.657E-02
1.25000E+00 5.058E-02 2.388E-02
1.50000E+00 4.592E-02 2.224E-02
2.00000E+00 4.078E-02 2.069E-02
3.00000E+00 3.692E-02 2.044E-02
4.00000E+00 3.598E-02 2.135E-02
5.00000E+00 3.612E-02 2.250E-02
6.00000E+00 3.669E-02 2.363E-02
8.00000E+00 3.844E-02 2.566E-02
1.00000E+01 4.042E-02 2.731E-02
1.50000E+01 4.518E-02 3.003E-02
2.00000E+01 4.902E-02 3.126E-02

Barium
Z = 56


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  8.543E+03  8.521E+03
   1.03063E-03  7.990E+03  7.969E+03
   1.06220E-03  7.465E+03  7.445E+03
M3 1.06220E-03  8.547E+03  8.524E+03
   1.09882E-03  7.957E+03  7.935E+03
   1.13670E-03  7.404E+03  7.384E+03
M2 1.13670E-03  7.837E+03  7.815E+03
   1.21224E-03  6.861E+03  6.841E+03
   1.29280E-03  5.985E+03  5.968E+03
M1 1.29280E-03  6.255E+03  6.237E+03
   1.50000E-03  4.499E+03  4.485E+03
   2.00000E-03  2.319E+03  2.308E+03
   3.00000E-03  8.696E+02  8.622E+02
   4.00000E-03  4.246E+02  4.184E+02
   5.00000E-03  2.414E+02  2.361E+02
   5.24700E-03  2.135E+02  2.084E+02
L3 5.24700E-03  6.098E+02  5.689E+02
   5.43204E-03  5.634E+02  5.263E+02
   5.62360E-03  5.169E+02  4.835E+02
L2 5.62360E-03  7.016E+02  6.486E+02
   5.80333E-03  6.507E+02  6.025E+02
   5.98880E-03  6.013E+02  5.577E+02
L1 5.98880E-03  6.930E+02  6.412E+02
   6.00000E-03  6.898E+02  6.383E+02
   8.00000E-03  3.334E+02  3.127E+02
   1.00000E-02  1.860E+02  1.754E+02
   1.50000E-02  6.347E+01  5.972E+01
   2.00000E-02  2.938E+01  2.730E+01
   3.00000E-02  9.904E+00  8.875E+00
   3.74406E-02  5.498E+00  4.768E+00
K  3.74406E-02  2.919E+01  9.346E+00
   4.00000E-02  2.457E+01  8.842E+00
   5.00000E-02  1.379E+01  6.534E+00
   6.00000E-02  8.511E+00  4.660E+00
   8.00000E-02  3.963E+00  2.501E+00
   1.00000E-01  2.196E+00  1.470E+00
   1.50000E-01  7.828E-01  5.309E-01
   2.00000E-01  4.046E-01  2.583E-01
   3.00000E-01  1.891E-01  1.028E-01
   4.00000E-01  1.265E-01  6.125E-02
   5.00000E-01  9.923E-02  4.521E-02
   6.00000E-01  8.410E-02  3.743E-02
   8.00000E-01  6.744E-02  3.011E-02
   1.00000E+00  5.803E-02  2.657E-02
   1.25000E+00  5.058E-02  2.388E-02
   1.50000E+00  4.592E-02  2.224E-02
   2.00000E+00  4.078E-02  2.069E-02
   3.00000E+00  3.692E-02  2.044E-02
   4.00000E+00  3.598E-02  2.135E-02
   5.00000E+00  3.612E-02  2.250E-02
   6.00000E+00  3.669E-02  2.363E-02
   8.00000E+00  3.844E-02  2.566E-02
   1.00000E+01  4.042E-02  2.731E-02
   1.50000E+01  4.518E-02  3.003E-02
   2.00000E+01  4.902E-02  3.126E-02
