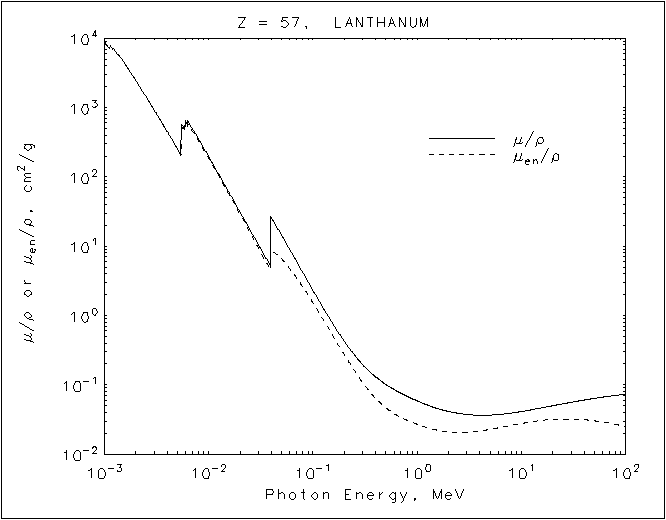

Lanthanum graph


Lanthanum
Z = 57


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 9.087E+03 9.061E+03
1.05991E-03 7.988E+03 7.965E+03
1.12340E-03 7.000E+03 6.979E+03
M3 1.12340E-03 8.025E+03 8.001E+03
  1.16320E-03 7.447E+03 7.425E+03
1.20440E-03 6.911E+03 6.890E+03
M2 1.20440E-03 7.321E+03 7.298E+03
  1.28045E-03 6.440E+03 6.419E+03
1.36130E-03 5.652E+03 5.634E+03
M1 1.36130E-03 5.905E+03 5.886E+03
  1.50000E-03 4.772E+03 4.755E+03
2.00000E-03 2.464E+03 2.453E+03
3.00000E-03 9.267E+02 9.190E+02
4.00000E-03 4.531E+02 4.468E+02
5.00000E-03 2.578E+02 2.524E+02
5.48270E-03 2.039E+02 1.988E+02
L3 5.48270E-03 5.764E+02 5.356E+02
  5.68299E-03 5.302E+02 4.935E+02
5.89060E-03 4.846E+02 4.517E+02
L2 5.89060E-03 6.545E+02 6.023E+02
  6.00000E-03 6.319E+02 5.819E+02
6.26630E-03 5.654E+02 5.221E+02
L1 6.26630E-03 6.518E+02 6.003E+02
  8.00000E-03 3.529E+02 3.290E+02
1.00000E-02 1.967E+02 1.847E+02
1.50000E-02 6.731E+01 6.321E+01
2.00000E-02 3.119E+01 2.897E+01
3.00000E-02 1.052E+01 9.444E+00
3.89246E-02 5.271E+00 4.554E+00
K 3.89246E-02 2.772E+01 8.785E+00
  4.00000E-02 2.579E+01 8.608E+00
5.00000E-02 1.447E+01 6.560E+00
6.00000E-02 8.962E+00 4.756E+00
8.00000E-02 4.177E+00 2.587E+00
1.00000E-01 2.315E+00 1.532E+00
1.50000E-01 8.239E-01 5.576E-01
2.00000E-01 4.239E-01 2.718E-01
3.00000E-01 1.961E-01 1.079E-01
4.00000E-01 1.301E-01 6.382E-02
5.00000E-01 1.015E-01 4.677E-02
6.00000E-01 8.570E-02 3.849E-02
8.00000E-01 6.843E-02 3.073E-02
1.00000E+00 5.876E-02 2.700E-02
1.25000E+00 5.110E-02 2.418E-02
1.50000E+00 4.640E-02 2.249E-02
2.00000E+00 4.122E-02 2.090E-02
3.00000E+00 3.737E-02 2.068E-02
4.00000E+00 3.646E-02 2.161E-02
5.00000E+00 3.664E-02 2.280E-02
6.00000E+00 3.726E-02 2.395E-02
8.00000E+00 3.907E-02 2.602E-02
1.00000E+01 4.113E-02 2.769E-02
1.50000E+01 4.603E-02 3.043E-02
2.00000E+01 4.996E-02 3.163E-02

Lanthanum
Z = 57


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  9.087E+03  9.061E+03
   1.05991E-03  7.988E+03  7.965E+03
   1.12340E-03  7.000E+03  6.979E+03
M3 1.12340E-03  8.025E+03  8.001E+03
   1.16320E-03  7.447E+03  7.425E+03
   1.20440E-03  6.911E+03  6.890E+03
M2 1.20440E-03  7.321E+03  7.298E+03
   1.28045E-03  6.440E+03  6.419E+03
   1.36130E-03  5.652E+03  5.634E+03
M1 1.36130E-03  5.905E+03  5.886E+03
   1.50000E-03  4.772E+03  4.755E+03
   2.00000E-03  2.464E+03  2.453E+03
   3.00000E-03  9.267E+02  9.190E+02
   4.00000E-03  4.531E+02  4.468E+02
   5.00000E-03  2.578E+02  2.524E+02
   5.48270E-03  2.039E+02  1.988E+02
L3 5.48270E-03  5.764E+02  5.356E+02
   5.68299E-03  5.302E+02  4.935E+02
   5.89060E-03  4.846E+02  4.517E+02
L2 5.89060E-03  6.545E+02  6.023E+02
   6.00000E-03  6.319E+02  5.819E+02
   6.26630E-03  5.654E+02  5.221E+02
L1 6.26630E-03  6.518E+02  6.003E+02
   8.00000E-03  3.529E+02  3.290E+02
   1.00000E-02  1.967E+02  1.847E+02
   1.50000E-02  6.731E+01  6.321E+01
   2.00000E-02  3.119E+01  2.897E+01
   3.00000E-02  1.052E+01  9.444E+00
   3.89246E-02  5.271E+00  4.554E+00
K  3.89246E-02  2.772E+01  8.785E+00
   4.00000E-02  2.579E+01  8.608E+00
   5.00000E-02  1.447E+01  6.560E+00
   6.00000E-02  8.962E+00  4.756E+00
   8.00000E-02  4.177E+00  2.587E+00
   1.00000E-01  2.315E+00  1.532E+00
   1.50000E-01  8.239E-01  5.576E-01
   2.00000E-01  4.239E-01  2.718E-01
   3.00000E-01  1.961E-01  1.079E-01
   4.00000E-01  1.301E-01  6.382E-02
   5.00000E-01  1.015E-01  4.677E-02
   6.00000E-01  8.570E-02  3.849E-02
   8.00000E-01  6.843E-02  3.073E-02
   1.00000E+00  5.876E-02  2.700E-02
   1.25000E+00  5.110E-02  2.418E-02
   1.50000E+00  4.640E-02  2.249E-02
   2.00000E+00  4.122E-02  2.090E-02
   3.00000E+00  3.737E-02  2.068E-02
   4.00000E+00  3.646E-02  2.161E-02
   5.00000E+00  3.664E-02  2.280E-02
   6.00000E+00  3.726E-02  2.395E-02
   8.00000E+00  3.907E-02  2.602E-02
   1.00000E+01  4.113E-02  2.769E-02
   1.50000E+01  4.603E-02  3.043E-02
   2.00000E+01  4.996E-02  3.163E-02
