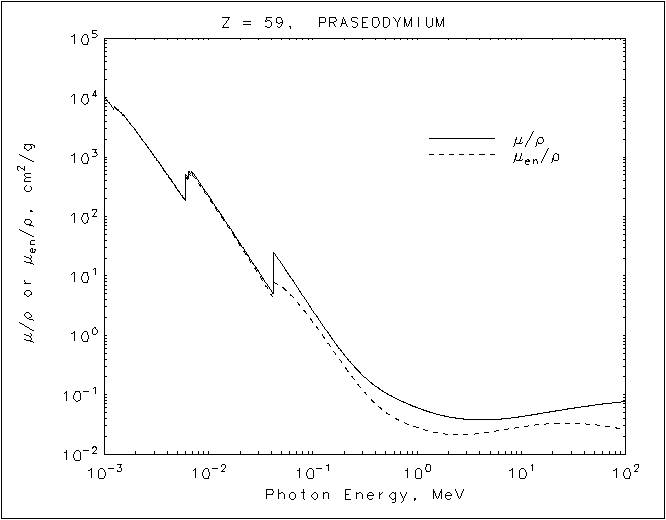

Praseodymium graph


Praseodymium
Z = 59

HTML table format
         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)
  1.00000E-03 1.058E+04 1.054E+04
1.11454E-03 8.122E+03 8.091E+03
1.24220E-03 6.278E+03 6.254E+03
M3 1.24220E-03 7.224E+03 7.196E+03
  1.28892E-03 6.661E+03 6.635E+03
1.33740E-03 6.142E+03 6.118E+03
M2 1.33740E-03 6.513E+03 6.487E+03
  1.50000E-03 5.090E+03 5.069E+03
1.51100E-03 5.006E+03 4.986E+03
M1 1.51100E-03 5.235E+03 5.214E+03
  2.00000E-03 2.768E+03 2.755E+03
3.00000E-03 1.047E+03 1.038E+03
4.00000E-03 5.131E+02 5.061E+02
5.00000E-03 2.924E+02 2.865E+02
5.96430E-03 1.868E+02 1.816E+02
L3 5.96430E-03 5.214E+02 4.802E+02
  6.00000E-03 5.145E+02 4.739E+02
6.44040E-03 4.310E+02 3.984E+02
L2 6.44040E-03 5.857E+02 5.333E+02
  6.63467E-03 5.455E+02 4.976E+02
6.83480E-03 5.060E+02 4.625E+02
L1 6.83480E-03 5.836E+02 5.317E+02
  8.00000E-03 3.950E+02 3.634E+02
1.00000E-02 2.209E+02 2.052E+02
1.50000E-02 7.597E+01 7.094E+01
2.00000E-02 3.526E+01 3.267E+01
3.00000E-02 1.192E+01 1.072E+01
4.00000E-02 5.557E+00 4.803E+00
4.19906E-02 4.892E+00 4.192E+00
K 4.19906E-02 2.518E+01 7.833E+00
  5.00000E-02 1.599E+01 6.567E+00
6.00000E-02 9.977E+00 4.942E+00
8.00000E-02 4.664E+00 2.773E+00
1.00000E-01 2.588E+00 1.667E+00
1.50000E-01 9.180E-01 6.172E-01
2.00000E-01 4.687E-01 3.025E-01
3.00000E-01 2.126E-01 1.195E-01
4.00000E-01 1.389E-01 6.980E-02
5.00000E-01 1.071E-01 5.047E-02
6.00000E-01 8.976E-02 4.107E-02
8.00000E-01 7.105E-02 3.229E-02
1.00000E+00 6.070E-02 2.811E-02
1.25000E+00 5.268E-02 2.503E-02
1.50000E+00 4.779E-02 2.320E-02
2.00000E+00 4.244E-02 2.152E-02
3.00000E+00 3.858E-02 2.131E-02
4.00000E+00 3.774E-02 2.233E-02
5.00000E+00 3.800E-02 2.359E-02
6.00000E+00 3.870E-02 2.481E-02
8.00000E+00 4.067E-02 2.697E-02
1.00000E+01 4.288E-02 2.872E-02
1.50000E+01 4.809E-02 3.155E-02
2.00000E+01 5.226E-02 3.277E-02

Praseodymium
Z = 59

ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  1.058E+04  1.054E+04
   1.11454E-03  8.122E+03  8.091E+03
   1.24220E-03  6.278E+03  6.254E+03
M3 1.24220E-03  7.224E+03  7.196E+03
   1.28892E-03  6.661E+03  6.635E+03
   1.33740E-03  6.142E+03  6.118E+03
M2 1.33740E-03  6.513E+03  6.487E+03
   1.50000E-03  5.090E+03  5.069E+03
   1.51100E-03  5.006E+03  4.986E+03
M1 1.51100E-03  5.235E+03  5.214E+03
   2.00000E-03  2.768E+03  2.755E+03
   3.00000E-03  1.047E+03  1.038E+03
   4.00000E-03  5.131E+02  5.061E+02
   5.00000E-03  2.924E+02  2.865E+02
   5.96430E-03  1.868E+02  1.816E+02
L3 5.96430E-03  5.214E+02  4.802E+02
   6.00000E-03  5.145E+02  4.739E+02
   6.44040E-03  4.310E+02  3.984E+02
L2 6.44040E-03  5.857E+02  5.333E+02
   6.63467E-03  5.455E+02  4.976E+02
   6.83480E-03  5.060E+02  4.625E+02
L1 6.83480E-03  5.836E+02  5.317E+02
   8.00000E-03  3.950E+02  3.634E+02
   1.00000E-02  2.209E+02  2.052E+02
   1.50000E-02  7.597E+01  7.094E+01
   2.00000E-02  3.526E+01  3.267E+01
   3.00000E-02  1.192E+01  1.072E+01
   4.00000E-02  5.557E+00  4.803E+00
   4.19906E-02  4.892E+00  4.192E+00
K  4.19906E-02  2.518E+01  7.833E+00
   5.00000E-02  1.599E+01  6.567E+00
   6.00000E-02  9.977E+00  4.942E+00
   8.00000E-02  4.664E+00  2.773E+00
   1.00000E-01  2.588E+00  1.667E+00
   1.50000E-01  9.180E-01  6.172E-01
   2.00000E-01  4.687E-01  3.025E-01
   3.00000E-01  2.126E-01  1.195E-01
   4.00000E-01  1.389E-01  6.980E-02
   5.00000E-01  1.071E-01  5.047E-02
   6.00000E-01  8.976E-02  4.107E-02
   8.00000E-01  7.105E-02  3.229E-02
   1.00000E+00  6.070E-02  2.811E-02
   1.25000E+00  5.268E-02  2.503E-02
   1.50000E+00  4.779E-02  2.320E-02
   2.00000E+00  4.244E-02  2.152E-02
   3.00000E+00  3.858E-02  2.131E-02
   4.00000E+00  3.774E-02  2.233E-02
   5.00000E+00  3.800E-02  2.359E-02
   6.00000E+00  3.870E-02  2.481E-02
   8.00000E+00  4.067E-02  2.697E-02
   1.00000E+01  4.288E-02  2.872E-02
   1.50000E+01  4.809E-02  3.155E-02
   2.00000E+01  5.226E-02  3.277E-02
