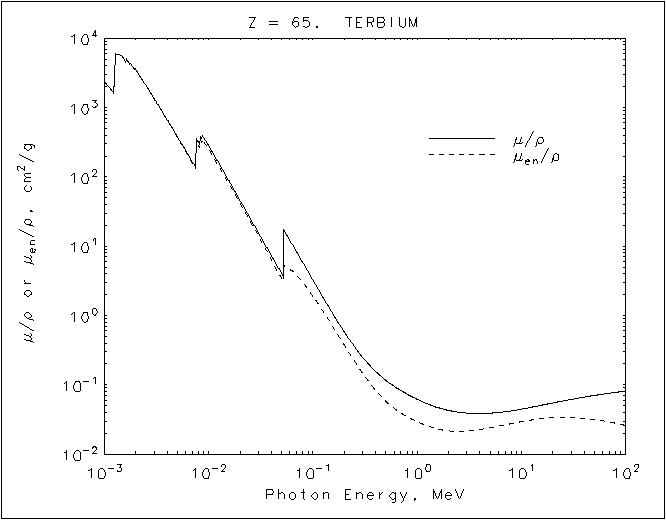

Terbium graph


Terbium
Z = 65


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 2.396E+03 2.386E+03
1.11409E-03 1.956E+03 1.946E+03
1.24120E-03 1.591E+03 1.581E+03
M5 1.24120E-03 2.337E+03 2.321E+03
  1.25799E-03 3.515E+03 3.488E+03
1.27500E-03 5.023E+03 4.984E+03
M4 1.27500E-03 5.928E+03 5.881E+03
  1.50000E-03 5.314E+03 5.274E+03
1.61130E-03 4.464E+03 4.431E+03
M3 1.61130E-03 5.164E+03 5.125E+03
  1.68769E-03 4.635E+03 4.601E+03
1.76770E-03 4.166E+03 4.135E+03
M2 1.76770E-03 4.424E+03 4.391E+03
  1.86493E-03 3.929E+03 3.899E+03
1.96750E-03 3.482E+03 3.456E+03
M1 1.96750E-03 3.638E+03 3.611E+03
  2.00000E-03 3.507E+03 3.481E+03
3.00000E-03 1.354E+03 1.342E+03
4.00000E-03 6.697E+02 6.607E+02
5.00000E-03 3.838E+02 3.765E+02
6.00000E-03 2.423E+02 2.362E+02
7.51400E-03 1.368E+02 1.318E+02
L3 7.51400E-03 3.658E+02 3.266E+02
  8.00000E-03 3.133E+02 2.810E+02
8.25160E-03 2.881E+02 2.590E+02
L2 8.25160E-03 3.925E+02 3.443E+02
  8.47673E-03 3.684E+02 3.239E+02
8.70800E-03 3.441E+02 3.033E+02
L1 8.70800E-03 3.970E+02 3.483E+02
  1.00000E-02 2.815E+02 2.502E+02
1.50000E-02 9.802E+01 8.914E+01
2.00000E-02 4.588E+01 4.184E+01
3.00000E-02 1.563E+01 1.402E+01
4.00000E-02 7.288E+00 6.357E+00
5.00000E-02 4.064E+00 3.422E+00
5.19957E-02 3.672E+00 3.068E+00
K 5.19957E-02 1.777E+01 5.291E+00
  6.00000E-02 1.223E+01 4.673E+00
8.00000E-02 5.826E+00 2.986E+00
1.00000E-01 3.253E+00 1.899E+00
1.50000E-01 1.151E+00 7.474E-01
2.00000E-01 5.775E-01 3.736E-01
3.00000E-01 2.498E-01 1.470E-01
4.00000E-01 1.562E-01 8.354E-02
5.00000E-01 1.167E-01 5.842E-02
6.00000E-01 9.562E-02 4.614E-02
8.00000E-01 7.365E-02 3.474E-02
1.00000E+00 6.196E-02 2.942E-02
1.25000E+00 5.321E-02 2.565E-02
1.50000E+00 4.808E-02 2.352E-02
2.00000E+00 4.272E-02 2.166E-02
3.00000E+00 3.908E-02 2.151E-02
4.00000E+00 3.848E-02 2.266E-02
5.00000E+00 3.894E-02 2.402E-02
6.00000E+00 3.981E-02 2.532E-02
8.00000E+00 4.206E-02 2.758E-02
1.00000E+01 4.449E-02 2.937E-02
1.50000E+01 5.017E-02 3.224E-02
2.00000E+01 5.470E-02 3.343E-02

Terbium
Z = 65


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  2.396E+03  2.386E+03
   1.11409E-03  1.956E+03  1.946E+03
   1.24120E-03  1.591E+03  1.581E+03
M5 1.24120E-03  2.337E+03  2.321E+03
   1.25799E-03  3.515E+03  3.488E+03
   1.27500E-03  5.023E+03  4.984E+03
M4 1.27500E-03  5.928E+03  5.881E+03
   1.50000E-03  5.314E+03  5.274E+03
   1.61130E-03  4.464E+03  4.431E+03
M3 1.61130E-03  5.164E+03  5.125E+03
   1.68769E-03  4.635E+03  4.601E+03
   1.76770E-03  4.166E+03  4.135E+03
M2 1.76770E-03  4.424E+03  4.391E+03
   1.86493E-03  3.929E+03  3.899E+03
   1.96750E-03  3.482E+03  3.456E+03
M1 1.96750E-03  3.638E+03  3.611E+03
   2.00000E-03  3.507E+03  3.481E+03
   3.00000E-03  1.354E+03  1.342E+03
   4.00000E-03  6.697E+02  6.607E+02
   5.00000E-03  3.838E+02  3.765E+02
   6.00000E-03  2.423E+02  2.362E+02
   7.51400E-03  1.368E+02  1.318E+02
L3 7.51400E-03  3.658E+02  3.266E+02
   8.00000E-03  3.133E+02  2.810E+02
   8.25160E-03  2.881E+02  2.590E+02
L2 8.25160E-03  3.925E+02  3.443E+02
   8.47673E-03  3.684E+02  3.239E+02
   8.70800E-03  3.441E+02  3.033E+02
L1 8.70800E-03  3.970E+02  3.483E+02
   1.00000E-02  2.815E+02  2.502E+02
   1.50000E-02  9.802E+01  8.914E+01
   2.00000E-02  4.588E+01  4.184E+01
   3.00000E-02  1.563E+01  1.402E+01
   4.00000E-02  7.288E+00  6.357E+00
   5.00000E-02  4.064E+00  3.422E+00
   5.19957E-02  3.672E+00  3.068E+00
K  5.19957E-02  1.777E+01  5.291E+00
   6.00000E-02  1.223E+01  4.673E+00
   8.00000E-02  5.826E+00  2.986E+00
   1.00000E-01  3.253E+00  1.899E+00
   1.50000E-01  1.151E+00  7.474E-01
   2.00000E-01  5.775E-01  3.736E-01
   3.00000E-01  2.498E-01  1.470E-01
   4.00000E-01  1.562E-01  8.354E-02
   5.00000E-01  1.167E-01  5.842E-02
   6.00000E-01  9.562E-02  4.614E-02
   8.00000E-01  7.365E-02  3.474E-02
   1.00000E+00  6.196E-02  2.942E-02
   1.25000E+00  5.321E-02  2.565E-02
   1.50000E+00  4.808E-02  2.352E-02
   2.00000E+00  4.272E-02  2.166E-02
   3.00000E+00  3.908E-02  2.151E-02
   4.00000E+00  3.848E-02  2.266E-02
   5.00000E+00  3.894E-02  2.402E-02
   6.00000E+00  3.981E-02  2.532E-02
   8.00000E+00  4.206E-02  2.758E-02
   1.00000E+01  4.449E-02  2.937E-02
   1.50000E+01  5.017E-02  3.224E-02
   2.00000E+01  5.470E-02  3.343E-02
