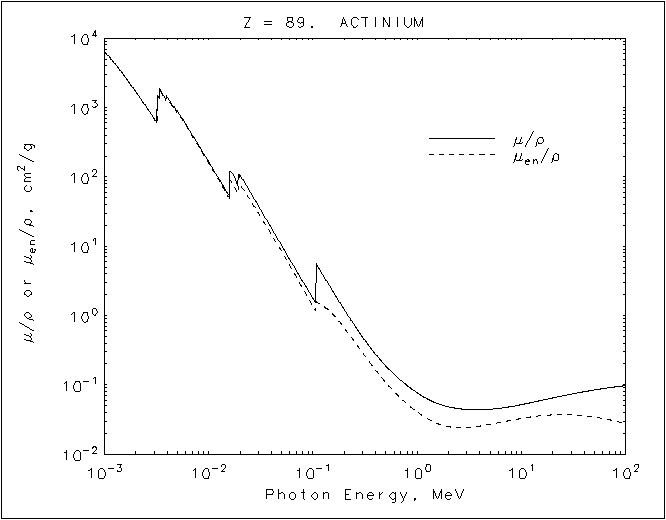

Actinium graph


Actinium
Z = 89


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 6.469E+03 6.455E+03
1.03923E-03 6.034E+03 6.020E+03
1.08000E-03 5.622E+03 5.608E+03
N2 1.08000E-03 5.702E+03 5.688E+03
  1.17069E-03 4.905E+03 4.891E+03
1.26900E-03 4.203E+03 4.190E+03
N1 1.26900E-03 4.289E+03 4.275E+03
  1.50000E-03 3.082E+03 3.069E+03
2.00000E-03 1.696E+03 1.683E+03
3.00000E-03 6.981E+02 6.870E+02
3.21900E-03 5.959E+02 5.851E+02
M5 3.21900E-03 1.537E+03 1.485E+03
  3.29373E-03 1.404E+03 1.358E+03
3.37020E-03 1.307E+03 1.264E+03
M4 3.37020E-03 1.892E+03 1.822E+03
  3.62962E-03 1.564E+03 1.508E+03
3.90900E-03 1.296E+03 1.252E+03
M3 3.90900E-03 1.504E+03 1.453E+03
  4.00000E-03 1.426E+03 1.377E+03
4.65600E-03 9.745E+02 9.428E+02
M2 4.65600E-03 1.034E+03 1.000E+03
  5.00000E-03 8.687E+02 8.408E+02
5.00200E-03 8.678E+02 8.399E+02
M1 5.00200E-03 9.051E+02 8.761E+02
  6.00000E-03 5.829E+02 5.641E+02
8.00000E-03 2.878E+02 2.773E+02
1.00000E-02 1.653E+02 1.580E+02
1.50000E-02 6.002E+01 5.583E+01
1.58710E-02 5.213E+01 4.823E+01
L3 1.58710E-02 1.214E+02 9.224E+01
  1.74031E-02 1.042E+02 7.350E+01
1.90832E-02 7.426E+01 5.865E+01
L2 1.90832E-02 1.036E+02 7.448E+01
  1.94579E-02 1.079E+02 7.133E+01
1.98400E-02 9.403E+01 6.831E+01
L1 1.98400E-02 1.082E+02 7.774E+01
  2.00000E-02 1.062E+02 7.645E+01
3.00000E-02 3.811E+01 3.000E+01
4.00000E-02 1.823E+01 1.479E+01
5.00000E-02 1.027E+01 8.396E+00
6.00000E-02 6.433E+00 5.242E+00
8.00000E-02 3.100E+00 2.465E+00
1.00000E-01 1.786E+00 1.367E+00
1.06756E-01 1.525E+00 1.150E+00
K 1.06756E-01 5.622E+00 1.582E+00
  1.50000E-01 2.434E+00 1.100E+00
2.00000E-01 1.213E+00 6.581E-01
3.00000E-01 4.859E-01 2.896E-01
4.00000E-01 2.749E-01 1.632E-01
5.00000E-01 1.872E-01 1.085E-01
6.00000E-01 1.421E-01 8.018E-02
8.00000E-01 9.804E-02 5.311E-02
1.00000E+00 7.686E-02 4.080E-02
1.25000E+00 6.251E-02 3.258E-02
1.50000E+00 5.504E-02 2.831E-02
2.00000E+00 4.822E-02 2.490E-02
3.00000E+00 4.409E-02 2.419E-02
4.00000E+00 4.363E-02 2.539E-02
5.00000E+00 4.438E-02 2.688E-02
6.00000E+00 4.560E-02 2.832E-02
8.00000E+00 4.856E-02 3.079E-02
1.00000E+01 5.171E-02 3.275E-02
1.50000E+01 5.895E-02 3.575E-02
2.00000E+01 6.473E-02 3.692E-02

Actinium
Z = 89


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  6.469E+03  6.455E+03
   1.03923E-03  6.034E+03  6.020E+03
   1.08000E-03  5.622E+03  5.608E+03
N2 1.08000E-03  5.702E+03  5.688E+03
   1.17069E-03  4.905E+03  4.891E+03
   1.26900E-03  4.203E+03  4.190E+03
N1 1.26900E-03  4.289E+03  4.275E+03
   1.50000E-03  3.082E+03  3.069E+03
   2.00000E-03  1.696E+03  1.683E+03
   3.00000E-03  6.981E+02  6.870E+02
   3.21900E-03  5.959E+02  5.851E+02
M5 3.21900E-03  1.537E+03  1.485E+03
   3.29373E-03  1.404E+03  1.358E+03
   3.37020E-03  1.307E+03  1.264E+03
M4 3.37020E-03  1.892E+03  1.822E+03
   3.62962E-03  1.564E+03  1.508E+03
   3.90900E-03  1.296E+03  1.252E+03
M3 3.90900E-03  1.504E+03  1.453E+03
   4.00000E-03  1.426E+03  1.377E+03
   4.65600E-03  9.745E+02  9.428E+02
M2 4.65600E-03  1.034E+03  1.000E+03
   5.00000E-03  8.687E+02  8.408E+02
   5.00200E-03  8.678E+02  8.399E+02
M1 5.00200E-03  9.051E+02  8.761E+02
   6.00000E-03  5.829E+02  5.641E+02
   8.00000E-03  2.878E+02  2.773E+02
   1.00000E-02  1.653E+02  1.580E+02
   1.50000E-02  6.002E+01  5.583E+01
   1.58710E-02  5.213E+01  4.823E+01
L3 1.58710E-02  1.214E+02  9.224E+01
   1.74031E-02  1.042E+02  7.350E+01
   1.90832E-02  7.426E+01  5.865E+01
L2 1.90832E-02  1.036E+02  7.448E+01
   1.94579E-02  1.079E+02  7.133E+01
   1.98400E-02  9.403E+01  6.831E+01
L1 1.98400E-02  1.082E+02  7.774E+01
   2.00000E-02  1.062E+02  7.645E+01
   3.00000E-02  3.811E+01  3.000E+01
   4.00000E-02  1.823E+01  1.479E+01
   5.00000E-02  1.027E+01  8.396E+00
   6.00000E-02  6.433E+00  5.242E+00
   8.00000E-02  3.100E+00  2.465E+00
   1.00000E-01  1.786E+00  1.367E+00
   1.06756E-01  1.525E+00  1.150E+00
K  1.06756E-01  5.622E+00  1.582E+00
   1.50000E-01  2.434E+00  1.100E+00
   2.00000E-01  1.213E+00  6.581E-01
   3.00000E-01  4.859E-01  2.896E-01
   4.00000E-01  2.749E-01  1.632E-01
   5.00000E-01  1.872E-01  1.085E-01
   6.00000E-01  1.421E-01  8.018E-02
   8.00000E-01  9.804E-02  5.311E-02
   1.00000E+00  7.686E-02  4.080E-02
   1.25000E+00  6.251E-02  3.258E-02
   1.50000E+00  5.504E-02  2.831E-02
   2.00000E+00  4.822E-02  2.490E-02
   3.00000E+00  4.409E-02  2.419E-02
   4.00000E+00  4.363E-02  2.539E-02
   5.00000E+00  4.438E-02  2.688E-02
   6.00000E+00  4.560E-02  2.832E-02
   8.00000E+00  4.856E-02  3.079E-02
   1.00000E+01  5.171E-02  3.275E-02
   1.50000E+01  5.895E-02  3.575E-02
   2.00000E+01  6.473E-02  3.692E-02
