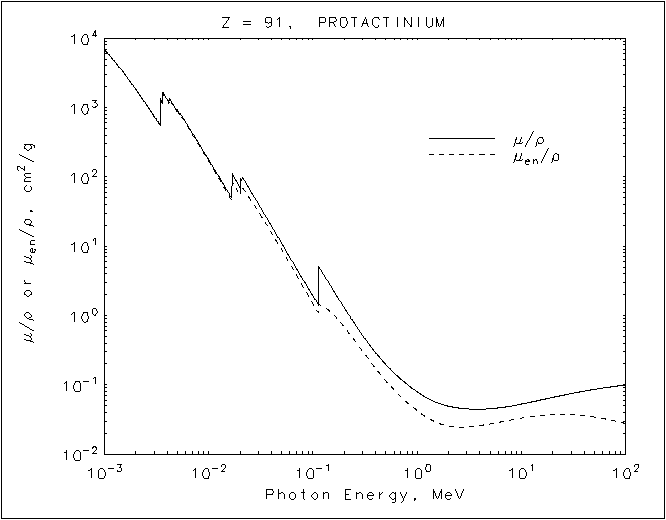

Protactinium graph


Protactinium
Z = 91


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 6.530E+03 6.515E+03
1.00334E-03 6.490E+03 6.476E+03
1.00670E-03 6.451E+03 6.437E+03
N3 1.00670E-03 6.868E+03 6.853E+03
  1.11018E-03 5.755E+03 5.740E+03
1.22430E-03 4.794E+03 4.780E+03
N2 1.22430E-03 4.863E+03 4.848E+03
  1.30316E-03 4.311E+03 4.296E+03
1.38710E-03 3.815E+03 3.801E+03
N1 1.38710E-03 3.891E+03 3.877E+03
  1.50000E-03 3.327E+03 3.313E+03
2.00000E-03 1.834E+03 1.821E+03
3.00000E-03 7.558E+02 7.444E+02
3.44180E-03 5.548E+02 5.440E+02
M5 3.44180E-03 1.363E+03 1.314E+03
  3.52548E-03 1.266E+03 1.222E+03
3.61120E-03 1.185E+03 1.144E+03
M4 3.61120E-03 1.695E+03 1.628E+03
  4.00000E-03 1.315E+03 1.265E+03
4.17380E-03 1.182E+03 1.139E+03
M3 4.17380E-03 1.374E+03 1.324E+03
  5.00000E-03 8.759E+02 8.454E+02
5.00090E-03 8.755E+02 8.450E+02
M2 5.00090E-03 9.288E+02 8.964E+02
  5.18067E-03 8.514E+02 8.219E+02
5.36690E-03 7.810E+02 7.541E+02
M1 5.36690E-03 8.144E+02 7.864E+02
  6.00000E-03 6.217E+02 6.004E+02
8.00000E-03 3.074E+02 2.958E+02
1.00000E-02 1.769E+02 1.690E+02
1.50000E-02 6.442E+01 6.000E+01
1.67331E-02 4.903E+01 4.522E+01
L3 1.67331E-02 1.130E+02 8.483E+01
  2.00000E-02 7.025E+01 5.486E+01
2.03137E-02 6.747E+01 5.284E+01
L2 2.03137E-02 9.452E+01 6.704E+01
  2.07054E-02 8.995E+01 6.418E+01
2.11046E-02 8.576E+01 6.153E+01
L1 2.11046E-02 9.861E+01 6.990E+01
  3.00000E-02 4.077E+01 3.146E+01
4.00000E-02 1.957E+01 1.567E+01
5.00000E-02 1.105E+01 8.950E+00
6.00000E-02 6.929E+00 5.612E+00
8.00000E-02 3.342E+00 2.655E+00
1.00000E-01 1.924E+00 1.477E+00
1.12601E-01 1.445E+00 1.081E+00
K 1.12601E-01 5.198E+00 1.466E+00
  1.50000E-01 2.575E+00 1.106E+00
2.00000E-01 1.288E+00 6.792E-01
3.00000E-01 5.152E-01 3.042E-01
4.00000E-01 2.904E-01 1.723E-01
5.00000E-01 1.969E-01 1.146E-01
6.00000E-01 1.487E-01 8.453E-02
8.00000E-01 1.018E-01 5.563E-02
1.00000E+00 7.937E-02 4.247E-02
1.25000E+00 6.420E-02 3.367E-02
1.50000E+00 5.637E-02 2.911E-02
2.00000E+00 4.927E-02 2.547E-02
3.00000E+00 4.496E-02 2.463E-02
4.00000E+00 4.445E-02 2.580E-02
5.00000E+00 4.519E-02 2.727E-02
6.00000E+00 4.641E-02 2.870E-02
8.00000E+00 4.943E-02 3.117E-02
1.00000E+01 5.261E-02 3.311E-02
1.50000E+01 6.000E-02 3.609E-02
2.00000E+01 6.592E-02 3.724E-02

Protactinium
Z = 91


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  6.530E+03  6.515E+03
   1.00334E-03  6.490E+03  6.476E+03
   1.00670E-03  6.451E+03  6.437E+03
N3 1.00670E-03  6.868E+03  6.853E+03
   1.11018E-03  5.755E+03  5.740E+03
   1.22430E-03  4.794E+03  4.780E+03
N2 1.22430E-03  4.863E+03  4.848E+03
   1.30316E-03  4.311E+03  4.296E+03
   1.38710E-03  3.815E+03  3.801E+03
N1 1.38710E-03  3.891E+03  3.877E+03
   1.50000E-03  3.327E+03  3.313E+03
   2.00000E-03  1.834E+03  1.821E+03
   3.00000E-03  7.558E+02  7.444E+02
   3.44180E-03  5.548E+02  5.440E+02
M5 3.44180E-03  1.363E+03  1.314E+03
   3.52548E-03  1.266E+03  1.222E+03
   3.61120E-03  1.185E+03  1.144E+03
M4 3.61120E-03  1.695E+03  1.628E+03
   4.00000E-03  1.315E+03  1.265E+03
   4.17380E-03  1.182E+03  1.139E+03
M3 4.17380E-03  1.374E+03  1.324E+03
   5.00000E-03  8.759E+02  8.454E+02
   5.00090E-03  8.755E+02  8.450E+02
M2 5.00090E-03  9.288E+02  8.964E+02
   5.18067E-03  8.514E+02  8.219E+02
   5.36690E-03  7.810E+02  7.541E+02
M1 5.36690E-03  8.144E+02  7.864E+02
   6.00000E-03  6.217E+02  6.004E+02
   8.00000E-03  3.074E+02  2.958E+02
   1.00000E-02  1.769E+02  1.690E+02
   1.50000E-02  6.442E+01  6.000E+01
   1.67331E-02  4.903E+01  4.522E+01
L3 1.67331E-02  1.130E+02  8.483E+01
   2.00000E-02  7.025E+01  5.486E+01
   2.03137E-02  6.747E+01  5.284E+01
L2 2.03137E-02  9.452E+01  6.704E+01
   2.07054E-02  8.995E+01  6.418E+01
   2.11046E-02  8.576E+01  6.153E+01
L1 2.11046E-02  9.861E+01  6.990E+01
   3.00000E-02  4.077E+01  3.146E+01
   4.00000E-02  1.957E+01  1.567E+01
   5.00000E-02  1.105E+01  8.950E+00
   6.00000E-02  6.929E+00  5.612E+00
   8.00000E-02  3.342E+00  2.655E+00
   1.00000E-01  1.924E+00  1.477E+00
   1.12601E-01  1.445E+00  1.081E+00
K  1.12601E-01  5.198E+00  1.466E+00
   1.50000E-01  2.575E+00  1.106E+00
   2.00000E-01  1.288E+00  6.792E-01
   3.00000E-01  5.152E-01  3.042E-01
   4.00000E-01  2.904E-01  1.723E-01
   5.00000E-01  1.969E-01  1.146E-01
   6.00000E-01  1.487E-01  8.453E-02
   8.00000E-01  1.018E-01  5.563E-02
   1.00000E+00  7.937E-02  4.247E-02
   1.25000E+00  6.420E-02  3.367E-02
   1.50000E+00  5.637E-02  2.911E-02
   2.00000E+00  4.927E-02  2.547E-02
   3.00000E+00  4.496E-02  2.463E-02
   4.00000E+00  4.445E-02  2.580E-02
   5.00000E+00  4.519E-02  2.727E-02
   6.00000E+00  4.641E-02  2.870E-02
   8.00000E+00  4.943E-02  3.117E-02
   1.00000E+01  5.261E-02  3.311E-02
   1.50000E+01  6.000E-02  3.609E-02
   2.00000E+01  6.592E-02  3.724E-02
