Spectrum of Platinum homepage

Lines and intensities in the range 1680-1696 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1680.3563    59511.188      360     Pt II    23461- 82972  P
  1680.5783    59503.327     1100
  1680.8886    59492.342     9800     Pt I         0- 59492  N
  1681.0350    59487.16       200     Ne II                  C
  1681.5384    59469.353     4200     Pt II    41434-100903  K
  1681.6840    59464.21      9600     Ne II                  C
  1681.7207    59462.906     1300 U
  1681.9119    59456.146      420
  1682.34      59441.0        140
  1682.8781    59422.010      230     Pt II    18097- 77519  06
  1683.07      59415.2        290
  1683.24      59409.2        430
  1683.39      59403.9        130
  1684.2054    59375.181      460     Pt II    34647- 94022  P
  1684.4637    59366.076      710     Pt II    42031-101397  K
  1684.5867    59361.741    21000     Pt II    41434-100795  AK
  1684.5867    59361.741    21000     Pt II    42031-101394  AK
  1684.85      59352.5         58
  1685.03      59346.1        160
  1685.58      59326.8        140
  1685.6828    59323.142     1700     Pt II    43737-103060  K
  1686.2510    59303.153     3000     Pt II    24879- 84182  11
  1687.20      59269.8        240     Pt II    36484- 95754  K
  1687.45      59261.0        120
  1687.59      59256.1         48
  1688.02      59241.0         76     Ne III                 L
  1688.3553    59229.24     17000     Ne II                  C
  1688.3945    59227.864     2000 U
  1688.84      59212.2        330     Ne III                 L
  1688.97      59207.7        100
  1689.19      59200.0         66
  1689.42      59191.9        170     Ne III                 L
  1689.8288    59177.592      800     Pt II    41434-100611  K
  1690.55      59152.3        250
  1690.7825    59144.213    11000     Pt I       775- 59920  N
  1690.8699    59141.156     3400     Pt I       775- 59916  N
  1690.9099    59139.757      300 U
  1691.1034    59132.990      400     Pt II    36484- 95617  K
  1691.1787    59130.357     1100     Pt I      6567- 65697  N
  1691.74      59110.7        170
  1692.1497    59096.426     3200     Pt I       823- 59920  N
  1692.5845    59081.245     3900     Pt II    42031-101113  K
  1692.80      59073.7        200     Pt II    36484- 95557  K
  1693.67      59043.4         57
  1693.94      59034.0        100     Pt II    32237- 91271  K
  1694.4440    59016.409      300     Pt I       775- 59792  N
  1694.5987    59011.02      1100     Ne II                  C
  1694.7864    59004.49      2500     Ne II                  C
  1694.8828    59001.13       280     Ne II                  C
  1695.7265    58971.774      460     Pt II    46046-105018  K
  1695.97      58963.3        200
Character descriptor definitions (appear to right of intensity)
Code definitions

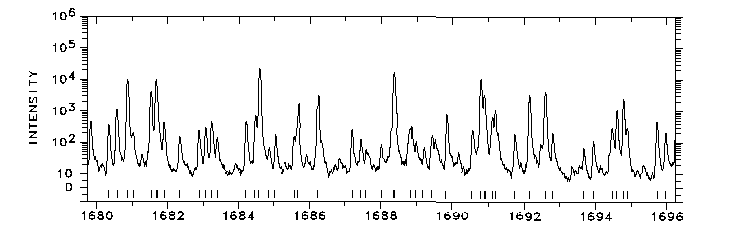

Photoelectric spectrum

1680-1696 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
