Spectrum of Platinum homepage

Lines and intensities in the range 2462-2478 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2462.05      40604.3         16
  2462.29      40600.3         81     Ne III                 L
  2464.33      40566.7        180
  2467.4003    40516.236    80000 P   Pt I         0- 40516  E
  2467.4824    40514.888    15000 P   Pt I     13496- 54011  E
  2467.5920    40513.089     5800     Pt II    23875- 64388  16
  2468.27      40502.0         69
  2468.72      40494.6         60     Pt II   114256- 73761  K
  2469.33      40484.6        300     Pt II   112433- 71948  K
  2469.41      40483.3        120     Pt I     26638- 67121  N
  2470.0003    40473.59        63     Ne II                  C
  2470.27      40469.2         69     Pt II    54373- 94842  K
  2470.59      40463.9        130     Pt II    41434- 81897  K
  2471.0073    40457.098     6400     Pt I     13496- 53953  E
  2471.1551    40454.678      700     Pt II   110408- 69953  K
  2471.31      40452.1         83     Pt II   114861- 74409  K
  2471.39      40450.8         88
  2471.8422    40443.433     4600     Pt II   105794- 65351  K
  2473.3856    40418.199    12000     Ne III                 L
  2474.0576    40407.221     1300 L   Pt II    60986-101394  K
  2475.89      40377.3        130     Pt II    37877- 78254  K
  2476.53      40366.9         64
  2477.2734    40354.772      180     Pt I     21967- 62321  N
  2477.44      40352.1        230     Pt II   104090- 63738  K
  2477.5449    40350.35       100     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

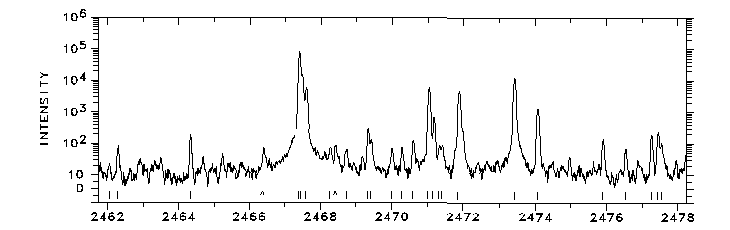

Photoelectric spectrum

2462-2478 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
