Spectrum of Platinum homepage

Lines and intensities in the range 2718-2734 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2718.4363    36774.958              Fe I                   MR
  2719.0333    36766.883   190000     Pt I       823- 37590  E
  2719.5239    36760.251   120000     Pt II   101517- 64757  K
  2720.9024    36741.628              Fe I                   R
  2721.29      36736.4         92     Pt II   114256- 77519  K
  2722.1611    36724.64       860     Ne II                  C
  2722.44      36720.9         41
  2724.27      36696.2         24
  2724.79      36689.2        150
  2725.37      36681.4        340     Pt I     16983- 53665  N
  2725.55      36679.0         26
  2726.4128    36667.373      990     Pt II    34647- 71314  13
  2727.8956    36647.444      740
  2728.35      36641.3        150
  2729.9123    36620.372    19000     Pt I      6567- 43187  E
  2733.6855    36569.829     4100     Pt I     15501- 52071  E
  2733.9567    36566.201   420000     Pt I       775- 37342  E
Character descriptor definitions (appear to right of intensity)
Code definitions

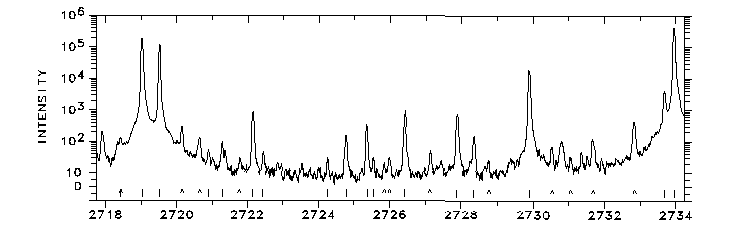

Photoelectric spectrum

2718-2734 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
