Spectrum of Platinum homepage

Lines and intensities in the range 2830-2846 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2830.2919    35321.653   520000 C   Pt I         0- 35321  E
  2832.95      35288.5        190
  2833.10      35286.6        180     Pt II   109527- 74241  K
  2833.37      35283.3        490     Pt I     13496- 48779  N
  2834.7107    35266.596    26000     Pt I     10131- 45398  E
  2835.2370    35260.049      800     Ne I
  2836.18      35248.3         41
  2836.65      35242.5         68
  2836.80      35240.6         41     Ne III                 L
  2837.2284    35235.302      610     Pt I      6567- 41802  N
  2837.37      35233.5        180     Ne III                 L
  2837.86      35227.5         62
  2838.57      35218.6         29
  2839.16      35211.3         35
  2839.5216    35206.848       55     Pt II   105388- 70181  23
  2840.76      35191.5        540     Ne III                 L
  2842.07      35175.3        200
  2842.4101    35171.071    12000     Pt II   101199- 66028  09
  2843.27      35160.4         67
  2844.05      35150.8        140     Pt I     68831- 33680  N
  2844.2284    35148.588      120     Pt II    37877- 73026  18
  2845.17      35137.0         37
  2845.4468    35133.538     1300     Pt II   105086- 69953  K
Character descriptor definitions (appear to right of intensity)
Code definitions

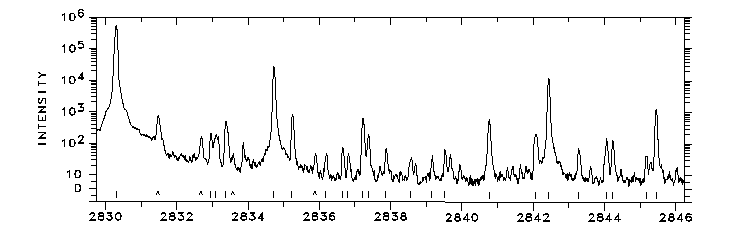

Photoelectric spectrum

2830-2846 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
