Spectrum of Platinum homepage

Lines and intensities in the range 2894-2910 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2895.05      34531.6        550     Ne III                 L
  2897.0028    34508.32      2500     Ne II                  C
  2897.2001    34505.97       290     Ne II                  C
  2897.6782    34500.277      890     Ne II                  G
  2897.8715    34497.976    88000     Pt I       823- 35321  E
  2899.3861    34479.955    15000     Pt II   105794- 71314  K
  2899.6452    34476.874     1100 L   Pt II    29261- 63738  11
  2900.78      34463.4         98
  2901.14      34459.1        260     Pt I     26638- 61097  N
  2901.70      34452.5         58     Pt I     18566- 53019  N
  2901.80      34451.3        140     Ne III                 L
  2902.93      34437.9         19     Ne III                 L
  2905.8974    34402.699    12000     Pt I      6567- 40970  A
  2905.8974    34402.699    12000     Ne III                 AL
  2906.5918    34394.48       390     Ne II                  C
  2906.8152    34391.837     4300     Ne II                  G
  2907.6288    34382.214      760     Ne III                 L
  2907.8960    34379.055     1300     Pt I     15501- 49880  E
  2908.49      34372.0         69     Ne III                 L
  2909.30      34362.5         73
Character descriptor definitions (appear to right of intensity)
Code definitions

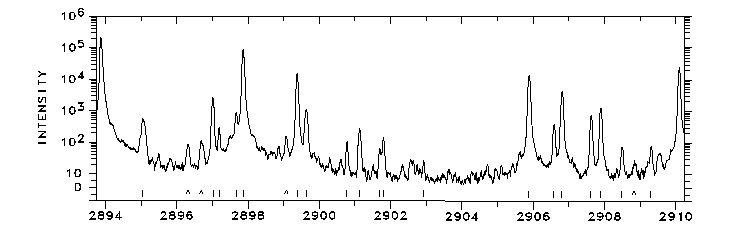

Photoelectric spectrum

2894-2910 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
