Spectrum of Platinum homepage

Lines and intensities in the range 2942-2958 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2942.15      33978.8         44
  2942.7514    33971.871     8400     Pt I     64128- 30156  E
  2944.57      33950.9         80
  2944.7525    33948.786     7100     Pt I      6567- 40516  E
  2944.93      33946.7         61     Pt II   110408- 76461  AK
  2944.93      33946.7         61     Pt II   109527- 75581  AK
  2945.76      33937.2        160
  2946.0435    33933.91       520     Ne II                  C
  2946.21      33932.0         64     Pt II    41434- 75365  K
  2947.3010    33919.432     3700     Ne I                   G
  2948.21      33909.0         88
  2949.08      33899.0        290
  2949.35      33895.9        290
  2949.93      33889.2         60     Ne III                 L
  2950.08      33887.5        470
  2950.32      33884.7         49     Pt I     68006- 34122  N
  2950.64      33881.1         36     Ne III                 L
  2951.0485    33876.36       450     Ne II                  C
  2951.32      33873.2         31
  2952.50      33859.7         94
  2953.0047    33853.92       140     Ne II                  C
  2953.35      33850.0         31
  2953.71      33845.8        720     Pt II   105794- 71948  K
  2954.79      33833.5        220     Pt II   111371- 77538  K
  2955.7255    33822.759   130000     Ne II                  G
  2956.70      33811.6         69
  2957.29      33804.9        120
  2957.52      33802.2        290     Pt II   117340- 83538  K
  2957.91      33797.8        710     Pt II   110408- 76610  K
Character descriptor definitions (appear to right of intensity)
Code definitions

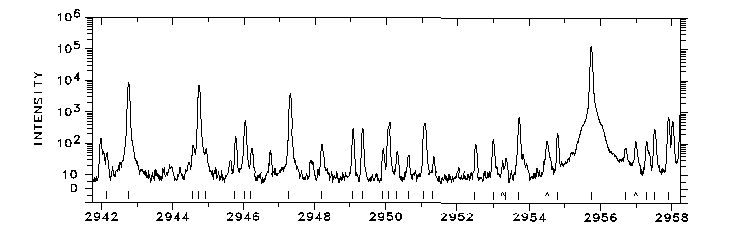

Photoelectric spectrum

2942-2958 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
