Lines and intensities in the range 3054-3070 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3054.3449    32730.726     6600     Ne II                  G
  3054.4287    32729.828     1000     Ne II                  G
  3054.6747    32727.193    31000     Ne II                  G
  3054.7312    32726.588      850 U
  3054.8344    32725.483     1000
  3055.3115    32720.372     1100     Pt I     18566- 51286  E
  3056.0579    32712.381      440     Pt II    23875- 56587  16
  3057.3907    32698.122    30000     Ne I                   G
  3057.8669    32693.030     1400     Ne II                  G
  3058.66      32684.6         47     Pt II    58062- 90746  KM
  3059.1050    32679.799    31000     Ne II                  G
  3059.6366    32674.121     5000     Pt I     13496- 46170  E
  3059.7250    32673.177      330     Pt II   106434- 73761  A
  3059.7250    32673.177      330     Ne II                  A
  3061.82      32650.8        290     Pt I     68947- 36296  AN
  3061.82      32650.8        290     Ne II                  A
  3062.4913    32643.664     9300     Ne II                  G
  3063.3015    32635.032     5400     Ne II                  G
  3063.6948    32630.842     1600     Ne I
  3064.7110    32620.023  1500000 C   Pt I         0- 32620  E
  3066.6875    32599.00       180     Ne II                  C
  3067.4494    32590.903     1500     Ne II                  G
  3068.85      32576.0         82
  3069.79      32566.1        200     Pt II    41434- 73999  K
Character descriptor definitions (appear to right of intensity)
Code definitions

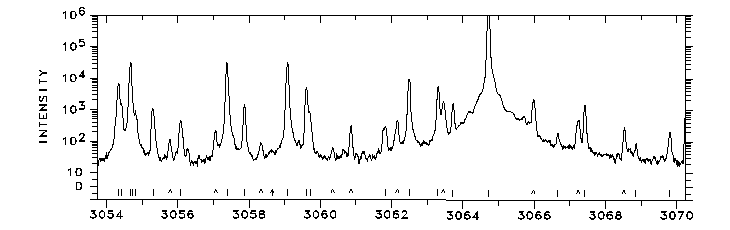

Photoelectric spectrum

3054-3070 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
