Lines and intensities in the range 3486-3502 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3490.5739    28640.388              Fe I                   R
  3490.9998    28636.894     4700 C   Pt I     68831- 40194  N
  3497.5624    28583.163      980     Pt I     62705- 34122  N
  3498.0635    28579.068   180000     Ne I                   G
  3498.1646    28578.243     2300 P   Pt I     26638- 55216  E
  3500.8873    28556.017      600 P   Pt II   114256- 85700  K
  3501.2158    28553.338   270000     Ne I                   G
  3501.4968    28551.047      980     Pt I     65395- 36844  N
Character descriptor definitions (appear to right of intensity)
Code definitions

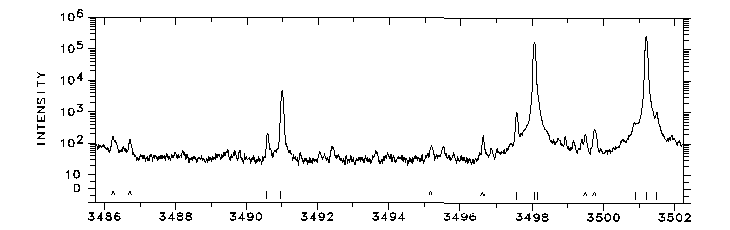

Photoelectric spectrum

3486-3502 Å

                      WAVELENGTH (ANGSTROMS) - AIR
