Lines and intensities in the range 3806-3822 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3806.249     26265.13      2300     Ne II                  C
  3806.9248    26260.467      240     Pt II    34647- 60907  21
  3807.2422    26258.278      320
  3808.1298    26252.157     2600     Pt I     68912- 42660  N
  3813.8174    26213.008      250
  3815.0673    26204.420     2700 L   Pt I     16983- 43187  N
  3815.8403    26199.112              Fe I                   R
  3815.88      26198.8        200
  3817.5962    26187.062     1000     Pt II   105794- 79607  K
  3817.8859    26185.075      330
  3818.4236    26181.388    34000     Ne II                  G
  3818.6874    26179.579   380000     Pt I     10116- 36296  E
  3820.4254    26167.670              Fe I                   R
Character descriptor definitions (appear to right of intensity)
Code definitions

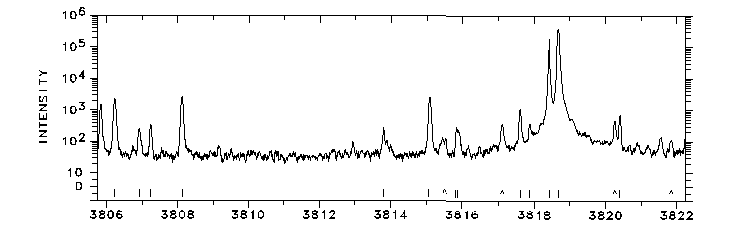

Photoelectric spectrum

3806-3822 Å

                      WAVELENGTH (ANGSTROMS) - AIR
