Lines and intensities in the range 4142-4158 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4142.09      24135.6        260
  4142.83      24131.3        150
  4143.61      24126.7        840     Pt I     68072- 43945  N
  4143.8680    24125.240              Fe I                   Q
  4145.03      24118.5       6300     Pt I     64312- 40194  N
  4147.50      24104.1        260
  4148.2820    24099.569      770     Pt II    32918- 57018  16
  4150.6893    24085.592    20000     Ne II                  G
  4152.84      24073.1        920     Pt I     64267- 40194  N
  4153.30      24070.5        240
  4154.84      24061.5        270     Pt I     68006- 43945  N
Character descriptor definitions (appear to right of intensity)
Code definitions

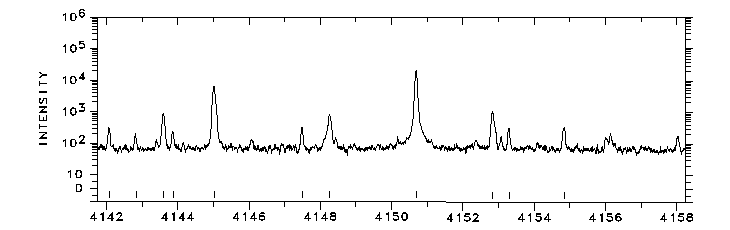

Photoelectric spectrum

4142-4158 Å

                      WAVELENGTH (ANGSTROMS) - AIR
