Spectrum of Platinum homepage

Lines and intensities in the range 4270-4286 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4270.23      23411.4        510     Ne I
  4271.20      23406.0       1600     Pt I     63922- 40516  N
  4271.58      23404.0        460
  4271.7604    23402.966              Fe I                   Q
  4273.92      23391.1       5800     Pt I     68121- 44730  N
  4274.68      23387.0       1200
  4274.81      23386.3                Cr I
  4275.58      23382.1       3600     Ne I
  4277.49      23371.6        180
  4277.86      23369.6        500
  4280.60      23354.6        280
  4281.7393    23348.425      710     Pt I     13496- 36844  E
  4284.87      23331.4        660
Character descriptor definitions (appear to right of intensity)
Code definitions

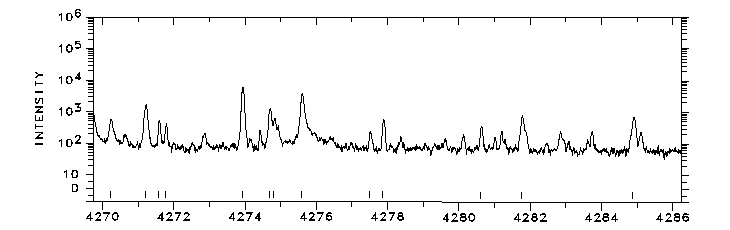

Photoelectric spectrum

4270-4286 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
