Figure 1

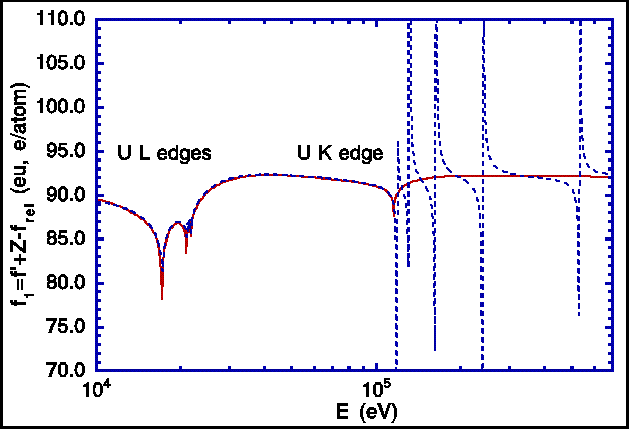

Figure 1. Form factor f1 for uranium near K- and L-edges indicating above-edge errors following Ref. [17-20]. (Solid line indicates current formulation.)
