Figure 3

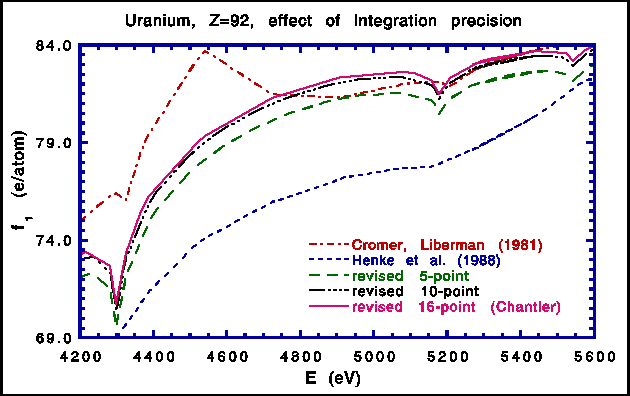

Figure 3. Form factor f1 for uranium MI - MIII edges showing importance of higher precision integration and the use of the current method versus earlier methods Ref. [17-20] and synthesized data Ref. [15,16].
