Figure 4

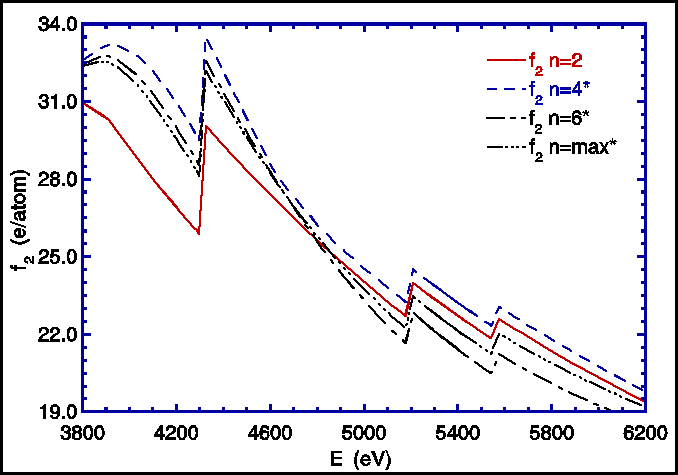

Figure 4. Form factor f2 = f″(E) for uranium near MI and MII edges showing large variation between interpolation procedures. n is the number of points in the interpolation, so n=2 refers to the linear log-log form.
