Figure 5

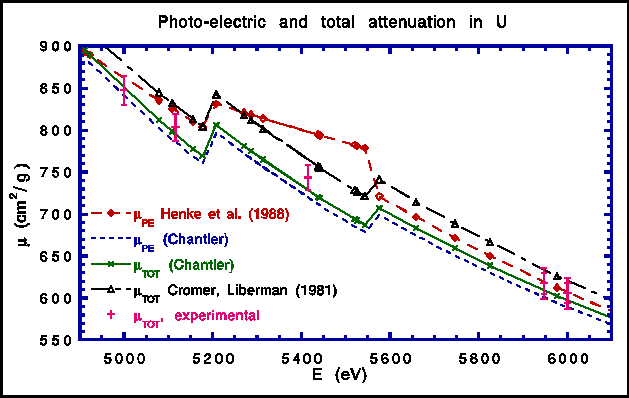

Figure 5. Photoelectric absorption coefficient for uranium near MI and MII edges showing offset of interpolation procedures and agreement of experiment [32,33] with current computation versus synthesized data [16] and earlier procedures [24].
