Fig. 5

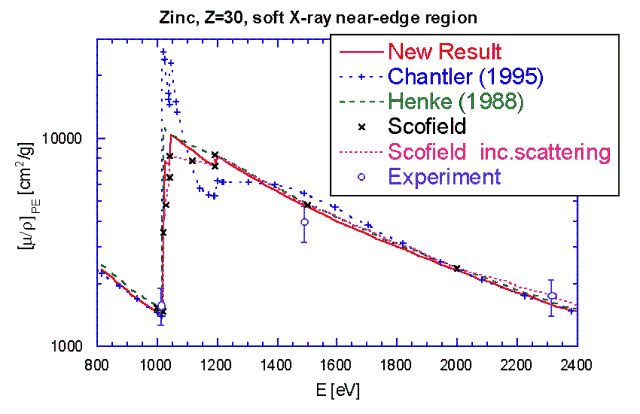

Figure 5. Attenuation in Zn (Z = 30), represented by [/ρ] (in cm2/g). Experimental data from Saloman, Hubbell and Scofield [34]. Chantler [16], Scofield [28] and Henke et al. [32] agree with available experiment, but all have large error, as indicated by the "New Result."
