Fig. 8

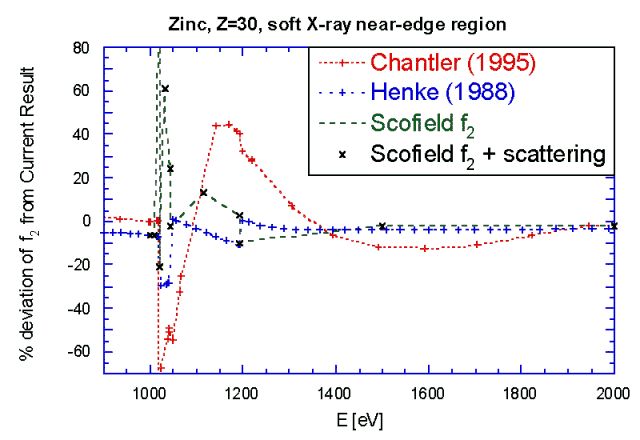

Figure 8. The result of fig. 4 presented as a percentage deviation of tabulated results for f2 compared to this work, for Zinc. All results show large excursions from the reference line, and all have corresponding imprecision in this near-edge region. The result of Henke et al. [32] is relatively smooth.
