Fig. 9

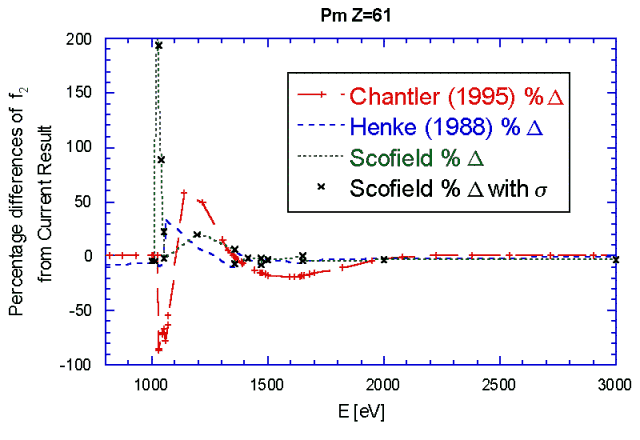

Figure 9. The result of fig. 7 presented as a percentage deviation of tabulated results for f2 compared to this work, for Z = 61. All results show large excursions from the reference line, and all have corresponding imprecision in this near-edge region.
