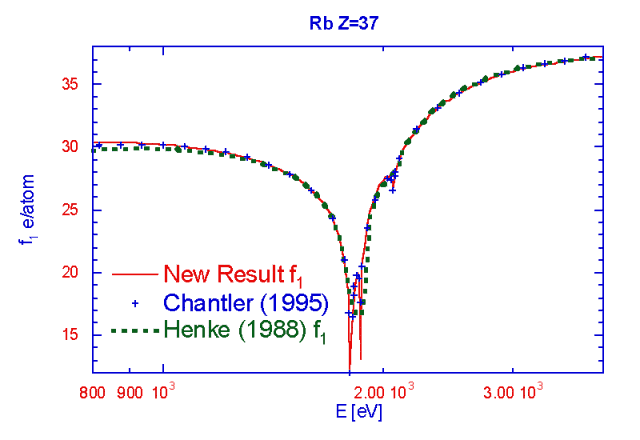

Fig. 11

Figure 11. A confirmation that this discrepancy is insignificant for f1 in Rb (Z = 37) and hence that we have no new result to present in this region. With the exception of the fine structure at the edge, Henke et al. [32] is in good agreement with Chantler [16].
