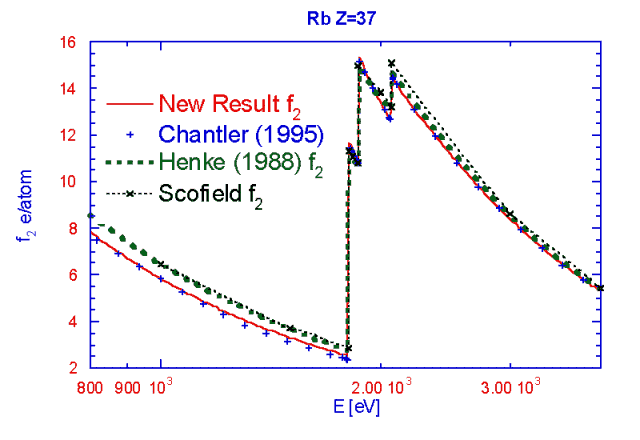

Fig. 12

Figure 12. A confirmation that this discrepancy is insignificant for f2 in Rb (Z = 37) and hence that we have no new result to present in this region. Hence the lower range of the tabulation is only given for Z = 30 to Z = 36. Theoretical and experimental uncertainties increase towards lower energies.
