Fig. 13

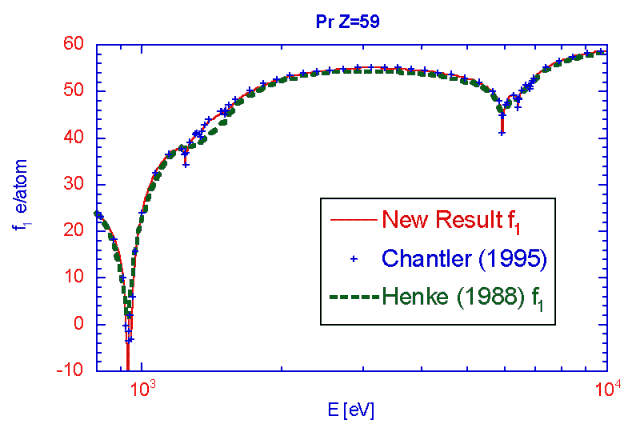

Figure 13. A confirmation that this discrepancy is insignificant for f1 in Pr (Z = 59) and hence that we have no new result to present in this region. Chantler [16] appears to give a sound prediction of the independent particle approximation, especially compared to Henke et al. (1988) [32].
