Singly Differential Cross Sections
Comparisons to Experimental Data

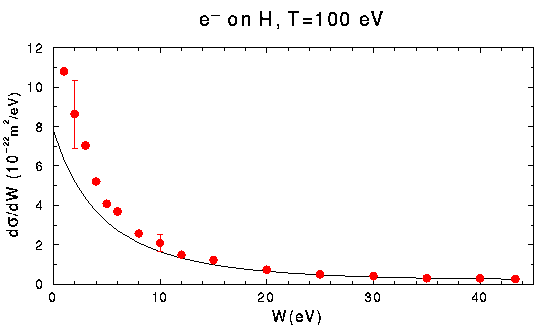

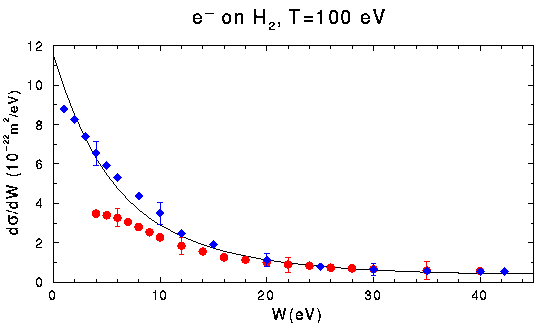

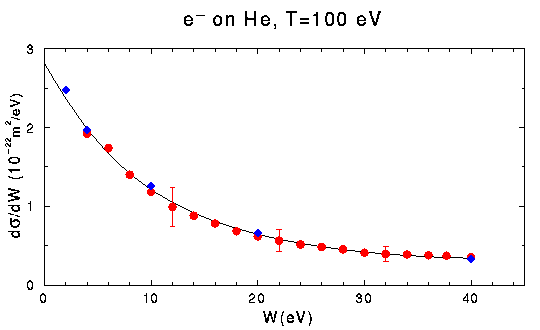

The following graphs show comparisons between theoretical and experimental
data for various values of W at T = 100 eV.
Symbol | Data |
---|---|
Y.-K. Kim and M.E. Rudd, Phys. Rev. A 50, 3954 (1994). | |
T.W. Shyn, Phys. Rev. A 45, 2951 (1992). |
Symbol | Data |
---|---|
Y.-K. Kim and M.E. Rudd, Phys. Rev. A 50, 3954 (1994). | |
C.P. Opal, E.E. Beaty, and W.K. Peterson, Atom. Data 4, 209 (1972). | |
R. Müller-Fiedler, K. Jung, and H. Ehrhardt, J. Phys. B 19, 1211 (1986). |
Symbol | Data |
---|---|
Y.-K. Kim and M.E. Rudd, Phys. Rev. A 50, 3954 (1994). | |
R.D. DuBois and M.E. Rudd, Phys. Rev. A 17, 843 (1978). | |
T.W. Shyn, W.E. Sharp, and Y.-K. Kim, Phys. Rev. A 24, 79 (1981). |
