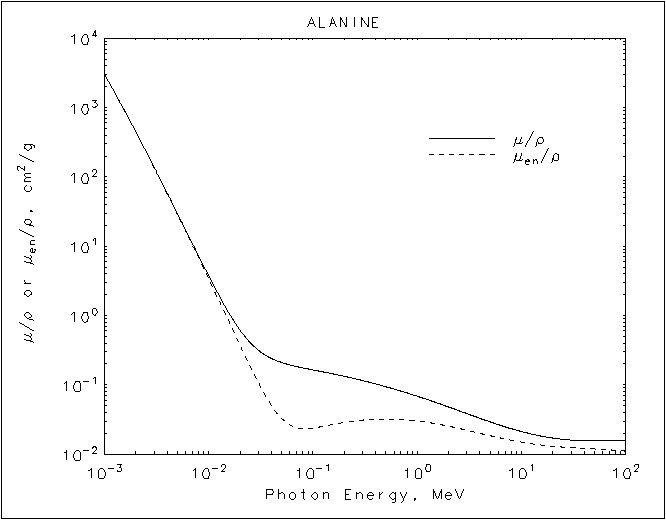

Alanine graph


Alanine
HTML table format
Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g) (cm2/g)
1.00000E-03 3.064E+03 3.057E+03
1.50000E-03 1.010E+03 1.007E+03
2.00000E-03 4.470E+02 4.456E+02
3.00000E-03 1.374E+02 1.365E+02
4.00000E-03 5.847E+01 5.777E+01
5.00000E-03 2.991E+01 2.934E+01
6.00000E-03 1.725E+01 1.676E+01
8.00000E-03 7.248E+00 6.853E+00
1.00000E-02 3.738E+00 3.398E+00
1.50000E-02 1.210E+00 9.362E-01
2.00000E-02 6.158E-01 3.743E-01
3.00000E-02 3.158E-01 1.076E-01
4.00000E-02 2.402E-01 5.034E-02
5.00000E-02 2.099E-01 3.275E-02
6.00000E-02 1.938E-01 2.643E-02
8.00000E-02 1.756E-01 2.345E-02
1.00000E-01 1.643E-01 2.387E-02
1.50000E-01 1.456E-01 2.660E-02
2.00000E-01 1.328E-01 2.871E-02
3.00000E-01 1.151E-01 3.096E-02
4.00000E-01 1.030E-01 3.182E-02
5.00000E-01 9.400E-02 3.202E-02
6.00000E-01 8.691E-02 3.187E-02
8.00000E-01 7.632E-02 3.112E-02
1.00000E+00 6.862E-02 3.012E-02
1.25000E+00 6.137E-02 2.878E-02
1.50000E+00 5.584E-02 2.751E-02
2.00000E+00 4.792E-02 2.530E-02
3.00000E+00 3.843E-02 2.210E-02
4.00000E+00 3.289E-02 1.996E-02
5.00000E+00 2.924E-02 1.846E-02
6.00000E+00 2.666E-02 1.736E-02
8.00000E+00 2.328E-02 1.587E-02
1.00000E+01 2.119E-02 1.493E-02
1.50000E+01 1.838E-02 1.362E-02
2.00000E+01 1.706E-02 1.299E-02

Alanine
ASCII format
_________________________________

  Energy        μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  3.064E+03  3.057E+03
1.50000E-03  1.010E+03  1.007E+03
2.00000E-03  4.470E+02  4.456E+02
3.00000E-03  1.374E+02  1.365E+02
4.00000E-03  5.847E+01  5.777E+01
5.00000E-03  2.991E+01  2.934E+01
6.00000E-03  1.725E+01  1.676E+01
8.00000E-03  7.248E+00  6.853E+00
1.00000E-02  3.738E+00  3.398E+00
1.50000E-02  1.210E+00  9.362E-01
2.00000E-02  6.158E-01  3.743E-01
3.00000E-02  3.158E-01  1.076E-01
4.00000E-02  2.402E-01  5.034E-02
5.00000E-02  2.099E-01  3.275E-02
6.00000E-02  1.938E-01  2.643E-02
8.00000E-02  1.756E-01  2.345E-02
1.00000E-01  1.643E-01  2.387E-02
1.50000E-01  1.456E-01  2.660E-02
2.00000E-01  1.328E-01  2.871E-02
3.00000E-01  1.151E-01  3.096E-02
4.00000E-01  1.030E-01  3.182E-02
5.00000E-01  9.400E-02  3.202E-02
6.00000E-01  8.691E-02  3.187E-02
8.00000E-01  7.632E-02  3.112E-02
1.00000E+00  6.862E-02  3.012E-02
1.25000E+00  6.137E-02  2.878E-02
1.50000E+00  5.584E-02  2.751E-02
2.00000E+00  4.792E-02  2.530E-02
3.00000E+00  3.843E-02  2.210E-02
4.00000E+00  3.289E-02  1.996E-02
5.00000E+00  2.924E-02  1.846E-02
6.00000E+00  2.666E-02  1.736E-02
8.00000E+00  2.328E-02  1.587E-02
1.00000E+01  2.119E-02  1.493E-02
1.50000E+01  1.838E-02  1.362E-02
2.00000E+01  1.706E-02  1.299E-02
