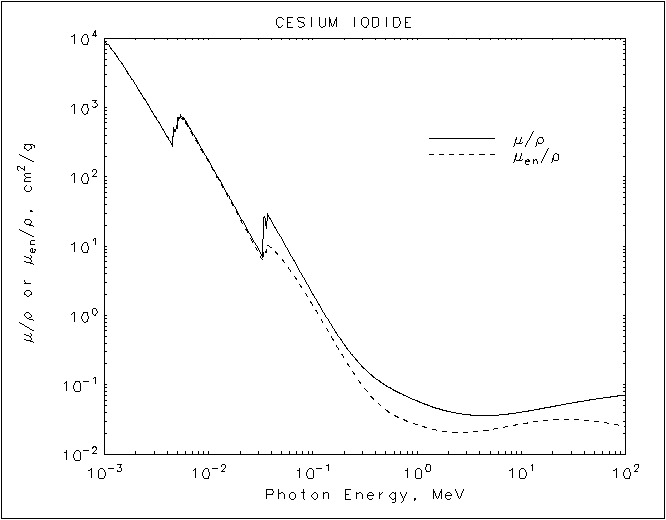

Cesium Iodide graph


Cesium Iodide
HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g) (cm2/g)

  1.00000E-03 9.234E+03 9.213E+03
1.03199E-03 8.653E+03 8.633E+03
1.06500E-03 8.098E+03 8.080E+03
55 M2 1.06500E-03 8.339E+03 8.320E+03
  1.06854E-03 8.281E+03 8.262E+03
1.07210E-03 8.224E+03 8.205E+03
53 M1 1.07210E-03 8.387E+03 8.368E+03
  1.14230E-03 7.344E+03 7.327E+03
1.21710E-03 6.413E+03 6.398E+03
55 M1 1.21710E-03 6.569E+03 6.553E+03
  1.50000E-03 4.132E+03 4.120E+03
2.00000E-03 2.114E+03 2.104E+03
3.00000E-03 7.880E+02 7.809E+02
4.00000E-03 3.836E+02 3.776E+02
4.55710E-03 2.752E+02 2.696E+02
53 L3 4.55710E-03 5.174E+02 4.936E+02
  4.70229E-03 4.851E+02 4.628E+02
4.85210E-03 4.510E+02 4.303E+02
53 L2 4.85210E-03 5.637E+02 5.332E+02
  5.00000E-03 5.296E+02 5.012E+02
5.01190E-03 5.268E+02 4.985E+02
55 L3 5.01190E-03 7.511E+02 7.037E+02
  5.09924E-03 7.193E+02 6.744E+02
5.18810E-03 6.881E+02 6.457E+02
53 L1 5.18810E-03 7.453E+02 6.987E+02
  5.27305E-03 7.196E+02 6.716E+02
5.35940E-03 6.875E+02 6.454E+02
55 L2 5.35940E-03 7.923E+02 7.397E+02
  5.53401E-03 7.323E+02 6.847E+02
5.71430E-03 6.761E+02 6.331E+02
55 L1 5.71430E-03 7.268E+02 6.795E+02
  6.00000E-03 6.448E+02 6.043E+02
8.00000E-03 3.071E+02 2.906E+02
1.00000E-02 1.711E+02 1.624E+02
1.50000E-02 5.815E+01 5.486E+01
2.00000E-02 2.686E+01 2.496E+01
3.00000E-02 9.045E+00 8.071E+00
3.31694E-02 6.923E+00 6.088E+00
53 K 3.31694E-02 2.122E+01 9.086E+00
  3.45483E-02 2.687E+01 8.529E+00
3.59846E-02 1.719E+01 7.990E+00
55 K 3.59846E-02 3.027E+01 1.059E+01
  4.00000E-02 2.297E+01 9.395E+00
5.00000E-02 1.287E+01 6.596E+00
6.00000E-02 7.921E+00 4.586E+00
8.00000E-02 3.677E+00 2.399E+00
1.00000E-01 2.035E+00 1.391E+00
1.50000E-01 7.290E-01 4.951E-01
2.00000E-01 3.805E-01 2.401E-01
3.00000E-01 1.818E-01 9.634E-02
4.00000E-01 1.237E-01 5.828E-02
5.00000E-01 9.809E-02 4.366E-02
6.00000E-01 8.373E-02 3.657E-02
8.00000E-01 6.769E-02 2.987E-02
1.00000E+00 5.848E-02 2.657E-02
1.25000E+00 5.110E-02 2.402E-02
1.50000E+00 4.644E-02 2.243E-02
2.00000E+00 4.123E-02 2.089E-02
3.00000E+00 3.721E-02 2.059E-02
4.00000E+00 3.616E-02 2.144E-02
5.00000E+00 3.622E-02 2.255E-02
6.00000E+00 3.673E-02 2.364E-02
8.00000E+00 3.838E-02 2.563E-02
1.00000E+01 4.030E-02 2.725E-02
1.50000E+01 4.492E-02 2.992E-02
2.00000E+01 4.867E-02 3.114E-02

Cesium Iodide
ASCII format
________________________________________

         Energy         μ/ρ       μen/ρ
          (MeV)       (cm2/g)     (cm2/g)
________________________________________

       1.00000E-03  9.234E+03  9.213E+03
       1.03199E-03  8.653E+03  8.633E+03
       1.06500E-03  8.098E+03  8.080E+03
 55 M2 1.06500E-03  8.339E+03  8.320E+03
       1.06854E-03  8.281E+03  8.262E+03
       1.07210E-03  8.224E+03  8.205E+03
 53 M1 1.07210E-03  8.387E+03  8.368E+03
       1.14230E-03  7.344E+03  7.327E+03
       1.21710E-03  6.413E+03  6.398E+03
 55 M1 1.21710E-03  6.569E+03  6.553E+03
       1.50000E-03  4.132E+03  4.120E+03
       2.00000E-03  2.114E+03  2.104E+03
       3.00000E-03  7.880E+02  7.809E+02
       4.00000E-03  3.836E+02  3.776E+02
       4.55710E-03  2.752E+02  2.696E+02
 53 L3 4.55710E-03  5.174E+02  4.936E+02
       4.70229E-03  4.851E+02  4.628E+02
       4.85210E-03  4.510E+02  4.303E+02
 53 L2 4.85210E-03  5.637E+02  5.332E+02
       5.00000E-03  5.296E+02  5.012E+02
       5.01190E-03  5.268E+02  4.985E+02
 55 L3 5.01190E-03  7.511E+02  7.037E+02
       5.09924E-03  7.193E+02  6.744E+02
       5.18810E-03  6.881E+02  6.457E+02
 53 L1 5.18810E-03  7.453E+02  6.987E+02
       5.27305E-03  7.196E+02  6.716E+02
       5.35940E-03  6.875E+02  6.454E+02
 55 L2 5.35940E-03  7.923E+02  7.397E+02
       5.53401E-03  7.323E+02  6.847E+02
       5.71430E-03  6.761E+02  6.331E+02
 55 L1 5.71430E-03  7.268E+02  6.795E+02
       6.00000E-03  6.448E+02  6.043E+02
       8.00000E-03  3.071E+02  2.906E+02
       1.00000E-02  1.711E+02  1.624E+02
       1.50000E-02  5.815E+01  5.486E+01
       2.00000E-02  2.686E+01  2.496E+01
       3.00000E-02  9.045E+00  8.071E+00
       3.31694E-02  6.923E+00  6.088E+00
 53 K  3.31694E-02  2.122E+01  9.086E+00
       3.45483E-02  2.687E+01  8.529E+00
       3.59846E-02  1.719E+01  7.990E+00
 55 K  3.59846E-02  3.027E+01  1.059E+01
       4.00000E-02  2.297E+01  9.395E+00
       5.00000E-02  1.287E+01  6.596E+00
       6.00000E-02  7.921E+00  4.586E+00
       8.00000E-02  3.677E+00  2.399E+00
       1.00000E-01  2.035E+00  1.391E+00
       1.50000E-01  7.290E-01  4.951E-01
       2.00000E-01  3.805E-01  2.401E-01
       3.00000E-01  1.818E-01  9.634E-02
       4.00000E-01  1.237E-01  5.828E-02
       5.00000E-01  9.809E-02  4.366E-02
       6.00000E-01  8.373E-02  3.657E-02
       8.00000E-01  6.769E-02  2.987E-02
       1.00000E+00  5.848E-02  2.657E-02
       1.25000E+00  5.110E-02  2.402E-02
       1.50000E+00  4.644E-02  2.243E-02
       2.00000E+00  4.123E-02  2.089E-02
       3.00000E+00  3.721E-02  2.059E-02
       4.00000E+00  3.616E-02  2.144E-02
       5.00000E+00  3.622E-02  2.255E-02
       6.00000E+00  3.673E-02  2.364E-02
       8.00000E+00  3.838E-02  2.563E-02
       1.00000E+01  4.030E-02  2.725E-02
       1.50000E+01  4.492E-02  2.992E-02
       2.00000E+01  4.867E-02  3.114E-02
