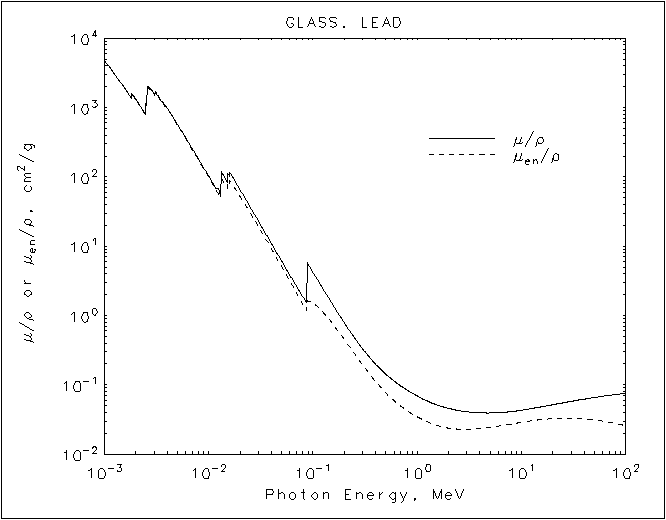

Glass, Lead graph


Glass, Lead
HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g) (cm2/g)

  1.00000E-03 4.816E+03 4.804E+03
1.15026E-03 3.619E+03 3.607E+03
1.32310E-03 2.704E+03 2.693E+03
33 L3 1.32310E-03 2.713E+03 2.702E+03
  1.34073E-03 2.639E+03 2.628E+03
1.35860E-03 2.567E+03 2.556E+03
33 L2 1.35860E-03 2.571E+03 2.560E+03
  1.50000E-03 2.088E+03 2.078E+03
1.52650E-03 2.012E+03 2.002E+03
33 L1 1.52650E-03 2.014E+03 2.004E+03
  1.67543E-03 1.646E+03 1.636E+03
1.83890E-03 1.339E+03 1.330E+03
14 K 1.83890E-03 1.573E+03 1.552E+03
  2.00000E-03 1.316E+03 1.298E+03
2.48400E-03 8.026E+02 7.897E+02
82 M5 2.48400E-03 1.251E+03 1.223E+03
  2.53429E-03 1.488E+03 1.451E+03
2.58560E-03 1.641E+03 1.600E+03
82 M4 2.58560E-03 2.027E+03 1.973E+03
  3.00000E-03 1.596E+03 1.555E+03
3.06640E-03 1.508E+03 1.469E+03
82 M3 3.06640E-03 1.726E+03 1.681E+03
  3.30130E-03 1.440E+03 1.404E+03
3.55420E-03 1.199E+03 1.170E+03
82 M2 3.55420E-03 1.266E+03 1.235E+03
  3.69948E-03 1.150E+03 1.122E+03
3.85070E-03 1.045E+03 1.020E+03
82 M1 3.85070E-03 1.088E+03 1.062E+03
  4.00000E-03 9.945E+02 9.709E+02
4.96640E-03 5.875E+02 5.733E+02
22 K 4.96640E-03 5.924E+02 5.772E+02
  5.00000E-03 5.828E+02 5.678E+02
6.00000E-03 3.715E+02 3.612E+02
8.00000E-03 1.808E+02 1.744E+02
1.00000E-02 1.029E+02 9.821E+01
1.18667E-02 6.666E+01 6.288E+01
33 K 1.18667E-02 6.707E+01 6.308E+01
  1.24372E-02 6.625E+01 5.580E+01
1.30352E-02 5.288E+01 4.937E+01
82 L3 1.30352E-02 1.244E+02 9.927E+01
  1.50000E-02 8.557E+01 6.991E+01
1.52000E-02 8.266E+01 6.766E+01
82 L2 1.52000E-02 1.132E+02 8.649E+01
  1.55269E-02 1.080E+02 8.279E+01
1.58608E-02 1.025E+02 7.888E+01
82 L1 1.58608E-02 1.178E+02 8.998E+01
  2.00000E-02 6.568E+01 5.252E+01
3.00000E-02 2.305E+01 1.927E+01
4.00000E-02 1.093E+01 9.198E+00
5.00000E-02 6.134E+00 5.118E+00
6.00000E-02 3.843E+00 3.152E+00
8.00000E-02 1.869E+00 1.458E+00
8.80045E-02 1.483E+00 1.129E+00
82 K 8.80045E-02 5.824E+00 1.639E+00
  1.00000E-01 4.216E+00 1.498E+00
1.50000E-01 1.550E+00 8.042E-01
2.00000E-01 7.820E-01 4.508E-01
3.00000E-01 3.297E-01 1.934E-01
4.00000E-01 1.984E-01 1.114E-01
5.00000E-01 1.429E-01 7.676E-02
6.00000E-01 1.138E-01 5.918E-02
8.00000E-01 8.421E-02 4.246E-02
1.00000E+00 6.914E-02 3.468E-02
1.25000E+00 5.826E-02 2.931E-02
1.50000E+00 5.208E-02 2.636E-02
2.00000E+00 4.568E-02 2.373E-02
3.00000E+00 4.082E-02 2.281E-02
4.00000E+00 3.938E-02 2.343E-02
5.00000E+00 3.919E-02 2.439E-02
6.00000E+00 3.958E-02 2.540E-02
8.00000E+00 4.108E-02 2.724E-02
1.00000E+01 4.295E-02 2.878E-02
1.50000E+01 4.768E-02 3.137E-02
2.00000E+01 5.165E-02 3.257E-02

Glass, Lead
ASCII format
________________________________________

         Energy         μ/ρ       μen/ρ
          (MeV)       (cm2/g)    (cm2/g)
________________________________________

       1.00000E-03  4.816E+03  4.804E+03
       1.15026E-03  3.619E+03  3.607E+03
       1.32310E-03  2.704E+03  2.693E+03
 33 L3 1.32310E-03  2.713E+03  2.702E+03
       1.34073E-03  2.639E+03  2.628E+03
       1.35860E-03  2.567E+03  2.556E+03
 33 L2 1.35860E-03  2.571E+03  2.560E+03
       1.50000E-03  2.088E+03  2.078E+03
       1.52650E-03  2.012E+03  2.002E+03
 33 L1 1.52650E-03  2.014E+03  2.004E+03
       1.67543E-03  1.646E+03  1.636E+03
       1.83890E-03  1.339E+03  1.330E+03
 14 K  1.83890E-03  1.573E+03  1.552E+03
       2.00000E-03  1.316E+03  1.298E+03
       2.48400E-03  8.026E+02  7.897E+02
 82 M5 2.48400E-03  1.251E+03  1.223E+03
       2.53429E-03  1.488E+03  1.451E+03
       2.58560E-03  1.641E+03  1.600E+03
 82 M4 2.58560E-03  2.027E+03  1.973E+03
       3.00000E-03  1.596E+03  1.555E+03
       3.06640E-03  1.508E+03  1.469E+03
 82 M3 3.06640E-03  1.726E+03  1.681E+03
       3.30130E-03  1.440E+03  1.404E+03
       3.55420E-03  1.199E+03  1.170E+03
 82 M2 3.55420E-03  1.266E+03  1.235E+03
       3.69948E-03  1.150E+03  1.122E+03
       3.85070E-03  1.045E+03  1.020E+03
 82 M1 3.85070E-03  1.088E+03  1.062E+03
       4.00000E-03  9.945E+02  9.709E+02
       4.96640E-03  5.875E+02  5.733E+02
 22 K  4.96640E-03  5.924E+02  5.772E+02
       5.00000E-03  5.828E+02  5.678E+02
       6.00000E-03  3.715E+02  3.612E+02
       8.00000E-03  1.808E+02  1.744E+02
       1.00000E-02  1.029E+02  9.821E+01
       1.18667E-02  6.666E+01  6.288E+01
 33 K  1.18667E-02  6.707E+01  6.308E+01
       1.24372E-02  6.625E+01  5.580E+01
       1.30352E-02  5.288E+01  4.937E+01
 82 L3 1.30352E-02  1.244E+02  9.927E+01
       1.50000E-02  8.557E+01  6.991E+01
       1.52000E-02  8.266E+01  6.766E+01
 82 L2 1.52000E-02  1.132E+02  8.649E+01
       1.55269E-02  1.080E+02  8.279E+01
       1.58608E-02  1.025E+02  7.888E+01
 82 L1 1.58608E-02  1.178E+02  8.998E+01
       2.00000E-02  6.568E+01  5.252E+01
       3.00000E-02  2.305E+01  1.927E+01
       4.00000E-02  1.093E+01  9.198E+00
       5.00000E-02  6.134E+00  5.118E+00
       6.00000E-02  3.843E+00  3.152E+00
       8.00000E-02  1.869E+00  1.458E+00
       8.80045E-02  1.483E+00  1.129E+00
 82 K  8.80045E-02  5.824E+00  1.639E+00
       1.00000E-01  4.216E+00  1.498E+00
       1.50000E-01  1.550E+00  8.042E-01
       2.00000E-01  7.820E-01  4.508E-01
       3.00000E-01  3.297E-01  1.934E-01
       4.00000E-01  1.984E-01  1.114E-01
       5.00000E-01  1.429E-01  7.676E-02
       6.00000E-01  1.138E-01  5.918E-02
       8.00000E-01  8.421E-02  4.246E-02
       1.00000E+00  6.914E-02  3.468E-02
       1.25000E+00  5.826E-02  2.931E-02
       1.50000E+00  5.208E-02  2.636E-02
       2.00000E+00  4.568E-02  2.373E-02
       3.00000E+00  4.082E-02  2.281E-02
       4.00000E+00  3.938E-02  2.343E-02
       5.00000E+00  3.919E-02  2.439E-02
       6.00000E+00  3.958E-02  2.540E-02
       8.00000E+00  4.108E-02  2.724E-02
       1.00000E+01  4.295E-02  2.878E-02
       1.50000E+01  4.768E-02  3.137E-02
       2.00000E+01  5.165E-02  3.257E-02
