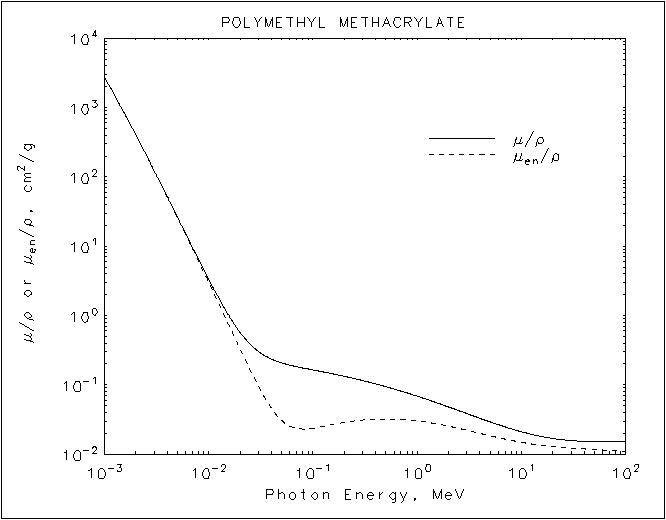

Polymethyl Methacrylate graph


Polymethyl Methacrylate
HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g) (cm2/g)

1.00000E-03 2.794E+03 2.788E+03
1.50000E-03 9.153E+02 9.131E+02
2.00000E-03 4.037E+02 4.024E+02
3.00000E-03 1.236E+02 1.228E+02
4.00000E-03 5.247E+01 5.181E+01
5.00000E-03 2.681E+01 2.627E+01
6.00000E-03 1.545E+01 1.498E+01
8.00000E-03 6.494E+00 6.114E+00
1.00000E-02 3.357E+00 3.026E+00
1.50000E-02 1.101E+00 8.324E-01
2.00000E-02 5.714E-01 3.328E-01
3.00000E-02 3.032E-01 9.645E-02
4.00000E-02 2.350E-01 4.599E-02
5.00000E-02 2.074E-01 3.067E-02
6.00000E-02 1.924E-01 2.530E-02
8.00000E-02 1.751E-01 2.302E-02
1.00000E-01 1.641E-01 2.368E-02
1.50000E-01 1.456E-01 2.657E-02
2.00000E-01 1.328E-01 2.872E-02
3.00000E-01 1.152E-01 3.099E-02
4.00000E-01 1.031E-01 3.185E-02
5.00000E-01 9.410E-02 3.206E-02
6.00000E-01 8.701E-02 3.191E-02
8.00000E-01 7.641E-02 3.116E-02
1.00000E+00 6.870E-02 3.015E-02
1.25000E+00 6.143E-02 2.882E-02
1.50000E+00 5.591E-02 2.755E-02
2.00000E+00 4.796E-02 2.533E-02
3.00000E+00 3.844E-02 2.210E-02
4.00000E+00 3.286E-02 1.995E-02
5.00000E+00 2.919E-02 1.843E-02
6.00000E+00 2.659E-02 1.731E-02
8.00000E+00 2.317E-02 1.579E-02
1.00000E+01 2.105E-02 1.482E-02
1.50000E+01 1.820E-02 1.348E-02
2.00000E+01 1.684E-02 1.282E-02

Polymethyl Methacrylate
ASCII format
_________________________________

  Energy        μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  2.794E+03  2.788E+03
1.50000E-03  9.153E+02  9.131E+02
2.00000E-03  4.037E+02  4.024E+02
3.00000E-03  1.236E+02  1.228E+02
4.00000E-03  5.247E+01  5.181E+01
5.00000E-03  2.681E+01  2.627E+01
6.00000E-03  1.545E+01  1.498E+01
8.00000E-03  6.494E+00  6.114E+00
1.00000E-02  3.357E+00  3.026E+00
1.50000E-02  1.101E+00  8.324E-01
2.00000E-02  5.714E-01  3.328E-01
3.00000E-02  3.032E-01  9.645E-02
4.00000E-02  2.350E-01  4.599E-02
5.00000E-02  2.074E-01  3.067E-02
6.00000E-02  1.924E-01  2.530E-02
8.00000E-02  1.751E-01  2.302E-02
1.00000E-01  1.641E-01  2.368E-02
1.50000E-01  1.456E-01  2.657E-02
2.00000E-01  1.328E-01  2.872E-02
3.00000E-01  1.152E-01  3.099E-02
4.00000E-01  1.031E-01  3.185E-02
5.00000E-01  9.410E-02  3.206E-02
6.00000E-01  8.701E-02  3.191E-02
8.00000E-01  7.641E-02  3.116E-02
1.00000E+00  6.870E-02  3.015E-02
1.25000E+00  6.143E-02  2.882E-02
1.50000E+00  5.591E-02  2.755E-02
2.00000E+00  4.796E-02  2.533E-02
3.00000E+00  3.844E-02  2.210E-02
4.00000E+00  3.286E-02  1.995E-02
5.00000E+00  2.919E-02  1.843E-02
6.00000E+00  2.659E-02  1.731E-02
8.00000E+00  2.317E-02  1.579E-02
1.00000E+01  2.105E-02  1.482E-02
1.50000E+01  1.820E-02  1.348E-02
2.00000E+01  1.684E-02  1.282E-02
