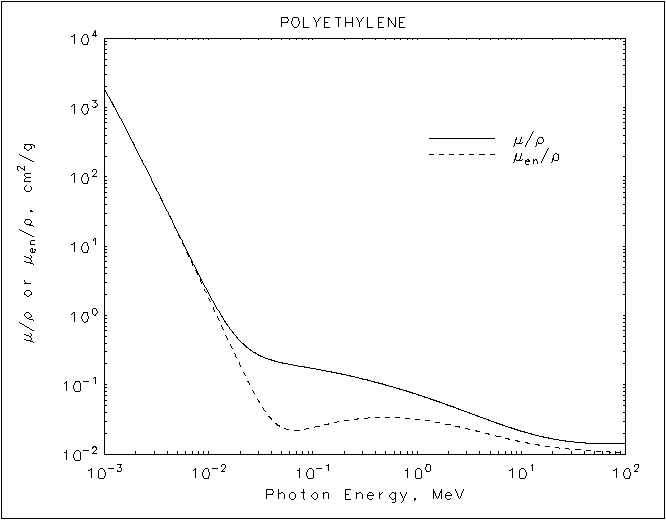

Polyethylene graph


Polyethylene
HTML table format
Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g) (cm2/g)
1.00000E-03 1.894E+03 1.892E+03
1.50000E-03 5.999E+02 5.988E+02
2.00000E-03 2.593E+02 2.584E+02
3.00000E-03 7.743E+01 7.678E+01
4.00000E-03 3.242E+01 3.189E+01
5.00000E-03 1.643E+01 1.598E+01
6.00000E-03 9.432E+00 9.032E+00
8.00000E-03 3.975E+00 3.635E+00
1.00000E-02 2.088E+00 1.781E+00
1.50000E-02 7.452E-01 4.834E-01
2.00000E-02 4.315E-01 1.936E-01
3.00000E-02 2.706E-01 5.932E-02
4.00000E-02 2.275E-01 3.196E-02
5.00000E-02 2.084E-01 2.442E-02
6.00000E-02 1.970E-01 2.236E-02
8.00000E-02 1.823E-01 2.265E-02
1.00000E-01 1.719E-01 2.423E-02
1.50000E-01 1.534E-01 2.789E-02
2.00000E-01 1.402E-01 3.029E-02
3.00000E-01 1.217E-01 3.276E-02
4.00000E-01 1.089E-01 3.368E-02
5.00000E-01 9.947E-02 3.390E-02
6.00000E-01 9.198E-02 3.375E-02
8.00000E-01 8.078E-02 3.295E-02
1.00000E+00 7.262E-02 3.190E-02
1.25000E+00 6.495E-02 3.049E-02
1.50000E+00 5.910E-02 2.914E-02
2.00000E+00 5.064E-02 2.677E-02
3.00000E+00 4.045E-02 2.328E-02
4.00000E+00 3.444E-02 2.091E-02
5.00000E+00 3.045E-02 1.921E-02
6.00000E+00 2.760E-02 1.794E-02
8.00000E+00 2.383E-02 1.620E-02
1.00000E+01 2.145E-02 1.506E-02
1.50000E+01 1.819E-02 1.344E-02
2.00000E+01 1.658E-02 1.260E-02

Polyethylene
ASCII format
_________________________________

  Energy        μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  1.894E+03  1.892E+03
1.50000E-03  5.999E+02  5.988E+02
2.00000E-03  2.593E+02  2.584E+02
3.00000E-03  7.743E+01  7.678E+01
4.00000E-03  3.242E+01  3.189E+01
5.00000E-03  1.643E+01  1.598E+01
6.00000E-03  9.432E+00  9.032E+00
8.00000E-03  3.975E+00  3.635E+00
1.00000E-02  2.088E+00  1.781E+00
1.50000E-02  7.452E-01  4.834E-01
2.00000E-02  4.315E-01  1.936E-01
3.00000E-02  2.706E-01  5.932E-02
4.00000E-02  2.275E-01  3.196E-02
5.00000E-02  2.084E-01  2.442E-02
6.00000E-02  1.970E-01  2.236E-02
8.00000E-02  1.823E-01  2.265E-02
1.00000E-01  1.719E-01  2.423E-02
1.50000E-01  1.534E-01  2.789E-02
2.00000E-01  1.402E-01  3.029E-02
3.00000E-01  1.217E-01  3.276E-02
4.00000E-01  1.089E-01  3.368E-02
5.00000E-01  9.947E-02  3.390E-02
6.00000E-01  9.198E-02  3.375E-02
8.00000E-01  8.078E-02  3.295E-02
1.00000E+00  7.262E-02  3.190E-02
1.25000E+00  6.495E-02  3.049E-02
1.50000E+00  5.910E-02  2.914E-02
2.00000E+00  5.064E-02  2.677E-02
3.00000E+00  4.045E-02  2.328E-02
4.00000E+00  3.444E-02  2.091E-02
5.00000E+00  3.045E-02  1.921E-02
6.00000E+00  2.760E-02  1.794E-02
8.00000E+00  2.383E-02  1.620E-02
1.00000E+01  2.145E-02  1.506E-02
1.50000E+01  1.819E-02  1.344E-02
2.00000E+01  1.658E-02  1.260E-02
