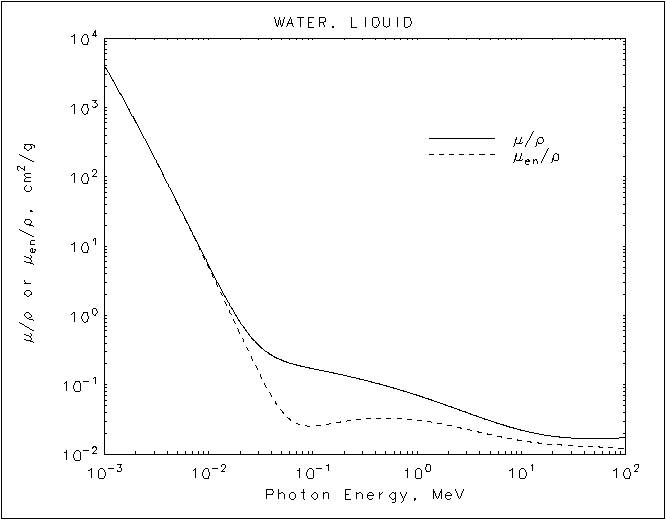

graph


Water, Liquid
HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g) (cm2/g)

1.00000E-03 4.078E+03 4.065E+03
1.50000E-03 1.376E+03 1.372E+03
2.00000E-03 6.173E+02 6.152E+02
3.00000E-03 1.929E+02 1.917E+02
4.00000E-03 8.278E+01 8.191E+01
5.00000E-03 4.258E+01 4.188E+01
6.00000E-03 2.464E+01 2.405E+01
8.00000E-03 1.037E+01 9.915E+00
1.00000E-02 5.329E+00 4.944E+00
1.50000E-02 1.673E+00 1.374E+00
2.00000E-02 8.096E-01 5.503E-01
3.00000E-02 3.756E-01 1.557E-01
4.00000E-02 2.683E-01 6.947E-02
5.00000E-02 2.269E-01 4.223E-02
6.00000E-02 2.059E-01 3.190E-02
8.00000E-02 1.837E-01 2.597E-02
1.00000E-01 1.707E-01 2.546E-02
1.50000E-01 1.505E-01 2.764E-02
2.00000E-01 1.370E-01 2.967E-02
3.00000E-01 1.186E-01 3.192E-02
4.00000E-01 1.061E-01 3.279E-02
5.00000E-01 9.687E-02 3.299E-02
6.00000E-01 8.956E-02 3.284E-02
8.00000E-01 7.865E-02 3.206E-02
1.00000E+00 7.072E-02 3.103E-02
1.25000E+00 6.323E-02 2.965E-02
1.50000E+00 5.754E-02 2.833E-02
2.00000E+00 4.942E-02 2.608E-02
3.00000E+00 3.969E-02 2.281E-02
4.00000E+00 3.403E-02 2.066E-02
5.00000E+00 3.031E-02 1.915E-02
6.00000E+00 2.770E-02 1.806E-02
8.00000E+00 2.429E-02 1.658E-02
1.00000E+01 2.219E-02 1.566E-02
1.50000E+01 1.941E-02 1.441E-02
2.00000E+01 1.813E-02 1.382E-02

Water, Liquid
ASCII format
_________________________________

  Energy        μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  4.078E+03  4.065E+03
1.50000E-03  1.376E+03  1.372E+03
2.00000E-03  6.173E+02  6.152E+02
3.00000E-03  1.929E+02  1.917E+02
4.00000E-03  8.278E+01  8.191E+01
5.00000E-03  4.258E+01  4.188E+01
6.00000E-03  2.464E+01  2.405E+01
8.00000E-03  1.037E+01  9.915E+00
1.00000E-02  5.329E+00  4.944E+00
1.50000E-02  1.673E+00  1.374E+00
2.00000E-02  8.096E-01  5.503E-01
3.00000E-02  3.756E-01  1.557E-01
4.00000E-02  2.683E-01  6.947E-02
5.00000E-02  2.269E-01  4.223E-02
6.00000E-02  2.059E-01  3.190E-02
8.00000E-02  1.837E-01  2.597E-02
1.00000E-01  1.707E-01  2.546E-02
1.50000E-01  1.505E-01  2.764E-02
2.00000E-01  1.370E-01  2.967E-02
3.00000E-01  1.186E-01  3.192E-02
4.00000E-01  1.061E-01  3.279E-02
5.00000E-01  9.687E-02  3.299E-02
6.00000E-01  8.956E-02  3.284E-02
8.00000E-01  7.865E-02  3.206E-02
1.00000E+00  7.072E-02  3.103E-02
1.25000E+00  6.323E-02  2.965E-02
1.50000E+00  5.754E-02  2.833E-02
2.00000E+00  4.942E-02  2.608E-02
3.00000E+00  3.969E-02  2.281E-02
4.00000E+00  3.403E-02  2.066E-02
5.00000E+00  3.031E-02  1.915E-02
6.00000E+00  2.770E-02  1.806E-02
8.00000E+00  2.429E-02  1.658E-02
1.00000E+01  2.219E-02  1.566E-02
1.50000E+01  1.941E-02  1.441E-02
2.00000E+01  1.813E-02  1.382E-02
