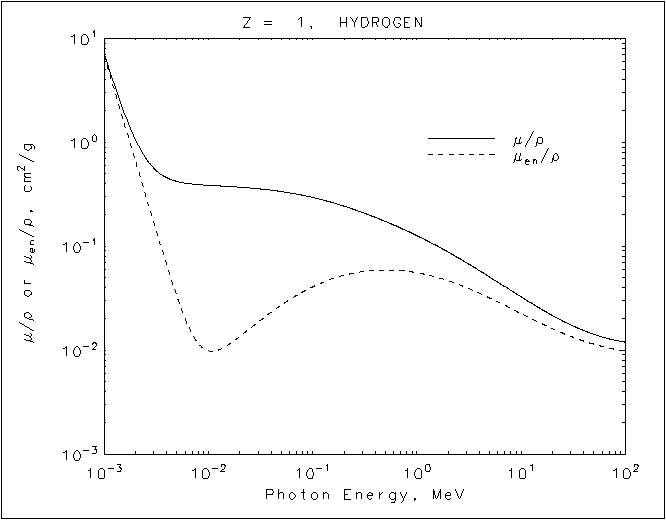

Hydrogen graph


Hydrogen
Z = 1


HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g)  (cm2/g)

1.00000E-03 7.217E+00 6.820E+00
1.50000E-03 2.148E+00 1.752E+00
2.00000E-03 1.059E+00 6.643E-01
3.00000E-03 5.612E-01 1.693E-01
4.00000E-03 4.546E-01 6.549E-02
5.00000E-03 4.193E-01 3.278E-02
6.00000E-03 4.042E-01 1.996E-02
8.00000E-03 3.914E-01 1.160E-02
1.00000E-02 3.854E-01 9.849E-03
1.50000E-02 3.764E-01 1.102E-02
2.00000E-02 3.695E-01 1.355E-02
3.00000E-02 3.570E-01 1.863E-02
4.00000E-02 3.458E-01 2.315E-02
5.00000E-02 3.355E-01 2.709E-02
6.00000E-02 3.260E-01 3.053E-02
8.00000E-02 3.091E-01 3.620E-02
1.00000E-01 2.944E-01 4.063E-02
1.50000E-01 2.651E-01 4.813E-02
2.00000E-01 2.429E-01 5.254E-02
3.00000E-01 2.112E-01 5.695E-02
4.00000E-01 1.893E-01 5.860E-02
5.00000E-01 1.729E-01 5.900E-02
6.00000E-01 1.599E-01 5.875E-02
8.00000E-01 1.405E-01 5.739E-02
1.00000E+00 1.263E-01 5.556E-02
1.25000E+00 1.129E-01 5.311E-02
1.50000E+00 1.027E-01 5.075E-02
2.00000E+00 8.769E-02 4.650E-02
3.00000E+00 6.921E-02 3.992E-02
4.00000E+00 5.806E-02 3.523E-02
5.00000E+00 5.049E-02 3.174E-02
6.00000E+00 4.498E-02 2.905E-02
8.00000E+00 3.746E-02 2.515E-02
1.00000E+01 3.254E-02 2.247E-02
1.50000E+01 2.539E-02 1.837E-02
2.00000E+01 2.153E-02 1.606E-02

Hydrogen
Z = 1


ASCII format
__________________________________

   Energy        μ/ρ        μen/ρ
    (MeV)      (cm2/g)     (cm2/g)
__________________________________

 1.00000E-03  7.217E+00  6.820E+00
 1.50000E-03  2.148E+00  1.752E+00
 2.00000E-03  1.059E+00  6.643E-01
 3.00000E-03  5.612E-01  1.693E-01
 4.00000E-03  4.546E-01  6.549E-02
 5.00000E-03  4.193E-01  3.278E-02
 6.00000E-03  4.042E-01  1.996E-02
 8.00000E-03  3.914E-01  1.160E-02
 1.00000E-02  3.854E-01  9.849E-03
 1.50000E-02  3.764E-01  1.102E-02
 2.00000E-02  3.695E-01  1.355E-02
 3.00000E-02  3.570E-01  1.863E-02
 4.00000E-02  3.458E-01  2.315E-02
 5.00000E-02  3.355E-01  2.709E-02
 6.00000E-02  3.260E-01  3.053E-02
 8.00000E-02  3.091E-01  3.620E-02
 1.00000E-01  2.944E-01  4.063E-02
 1.50000E-01  2.651E-01  4.813E-02
 2.00000E-01  2.429E-01  5.254E-02
 3.00000E-01  2.112E-01  5.695E-02
 4.00000E-01  1.893E-01  5.860E-02
 5.00000E-01  1.729E-01  5.900E-02
 6.00000E-01  1.599E-01  5.875E-02
 8.00000E-01  1.405E-01  5.739E-02
 1.00000E+00  1.263E-01  5.556E-02
 1.25000E+00  1.129E-01  5.311E-02
 1.50000E+00  1.027E-01  5.075E-02
 2.00000E+00  8.769E-02  4.650E-02
 3.00000E+00  6.921E-02  3.992E-02
 4.00000E+00  5.806E-02  3.523E-02
 5.00000E+00  5.049E-02  3.174E-02
 6.00000E+00  4.498E-02  2.905E-02
 8.00000E+00  3.746E-02  2.515E-02
 1.00000E+01  3.254E-02  2.247E-02
 1.50000E+01  2.539E-02  1.837E-02
 2.00000E+01  2.153E-02  1.606E-02
