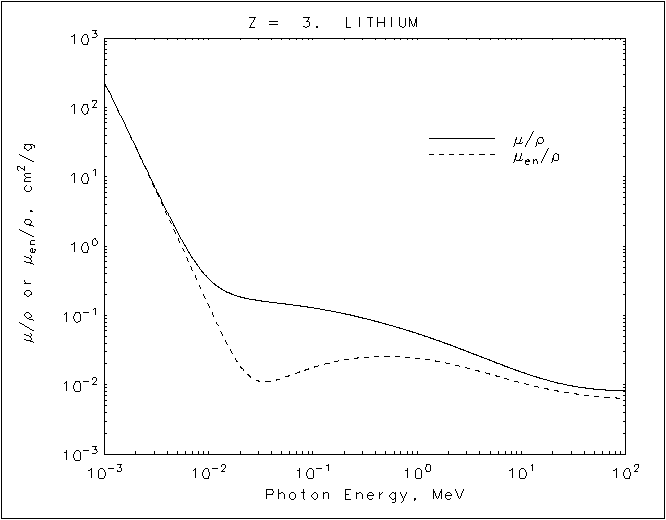

Lithium graph


Lithium
Z = 3


HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g)  (cm2/g)

1.00000E-03 2.339E+02 2.335E+02
1.50000E-03 6.668E+01 6.629E+01
2.00000E-03 2.707E+01 2.672E+01
3.00000E-03 7.549E+00 7.249E+00
4.00000E-03 3.114E+00 2.840E+00
5.00000E-03 1.619E+00 1.364E+00
6.00000E-03 9.875E-01 7.477E-01
8.00000E-03 5.054E-01 2.888E-01
1.00000E-02 3.395E-01 1.387E-01
1.50000E-02 2.176E-01 3.910E-02
2.00000E-02 1.856E-01 1.885E-02
3.00000E-02 1.644E-01 1.138E-02
4.00000E-02 1.551E-01 1.131E-02
5.00000E-02 1.488E-01 1.237E-02
6.00000E-02 1.438E-01 1.361E-02
8.00000E-02 1.356E-01 1.588E-02
1.00000E-01 1.289E-01 1.776E-02
1.50000E-01 1.158E-01 2.098E-02
2.00000E-01 1.060E-01 2.290E-02
3.00000E-01 9.210E-02 2.481E-02
4.00000E-01 8.249E-02 2.552E-02
5.00000E-01 7.532E-02 2.569E-02
6.00000E-01 6.968E-02 2.559E-02
8.00000E-01 6.121E-02 2.499E-02
1.00000E+00 5.503E-02 2.419E-02
1.25000E+00 4.921E-02 2.312E-02
1.50000E+00 4.476E-02 2.210E-02
2.00000E+00 3.830E-02 2.028E-02
3.00000E+00 3.043E-02 1.753E-02
4.00000E+00 2.572E-02 1.561E-02
5.00000E+00 2.257E-02 1.422E-02
6.00000E+00 2.030E-02 1.316E-02
8.00000E+00 1.725E-02 1.167E-02
1.00000E+01 1.529E-02 1.066E-02
1.50000E+01 1.252E-02 9.182E-03
2.00000E+01 1.109E-02 8.385E-03

Lithium
Z = 3


ASCII format
_________________________________

  Energy        μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  2.339E+02  2.335E+02
1.50000E-03  6.668E+01  6.629E+01
2.00000E-03  2.707E+01  2.672E+01
3.00000E-03  7.549E+00  7.249E+00
4.00000E-03  3.114E+00  2.840E+00
5.00000E-03  1.619E+00  1.364E+00
6.00000E-03  9.875E-01  7.477E-01
8.00000E-03  5.054E-01  2.888E-01
1.00000E-02  3.395E-01  1.387E-01
1.50000E-02  2.176E-01  3.910E-02
2.00000E-02  1.856E-01  1.885E-02
3.00000E-02  1.644E-01  1.138E-02
4.00000E-02  1.551E-01  1.131E-02
5.00000E-02  1.488E-01  1.237E-02
6.00000E-02  1.438E-01  1.361E-02
8.00000E-02  1.356E-01  1.588E-02
1.00000E-01  1.289E-01  1.776E-02
1.50000E-01  1.158E-01  2.098E-02
2.00000E-01  1.060E-01  2.290E-02
3.00000E-01  9.210E-02  2.481E-02
4.00000E-01  8.249E-02  2.552E-02
5.00000E-01  7.532E-02  2.569E-02
6.00000E-01  6.968E-02  2.559E-02
8.00000E-01  6.121E-02  2.499E-02
1.00000E+00  5.503E-02  2.419E-02
1.25000E+00  4.921E-02  2.312E-02
1.50000E+00  4.476E-02  2.210E-02
2.00000E+00  3.830E-02  2.028E-02
3.00000E+00  3.043E-02  1.753E-02
4.00000E+00  2.572E-02  1.561E-02
5.00000E+00  2.257E-02  1.422E-02
6.00000E+00  2.030E-02  1.316E-02
8.00000E+00  1.725E-02  1.167E-02
1.00000E+01  1.529E-02  1.066E-02
1.50000E+01  1.252E-02  9.182E-03
2.00000E+01  1.109E-02  8.385E-03
